SINK SPECIFICATIONS
SINGLE BOWL Farmhouse
VGRA3618FL
Model
FEATURED MODEL VGRA3618FL
9 5/8" BOWL DEPTH
FEATURES
Solid surface, matte stone
10mm radius corners
Long-lasting, easy-to-clean, glossy interior and
matte exterior finish
Center drain placement
Reversible for flat apron front or grooved apron front
PACKING LIST
-
SINK
-
STRAINER
NOTE: Due to the nature of the material,
models can differ up to 5 mm from the listed
dimensions. We advise that you do not cut
your countertop based off of the dimensions
in the specifications area of the website, but
instead wait until your sink arrives to
measure and cut the countertop to ensure a
perfect fit.
This Sink comes with Sink VGRA3618CS and
Strainer VGSTRAINERFH.
NOTE: Customer needs to select the flat or
grooved front and proceed accordingly.

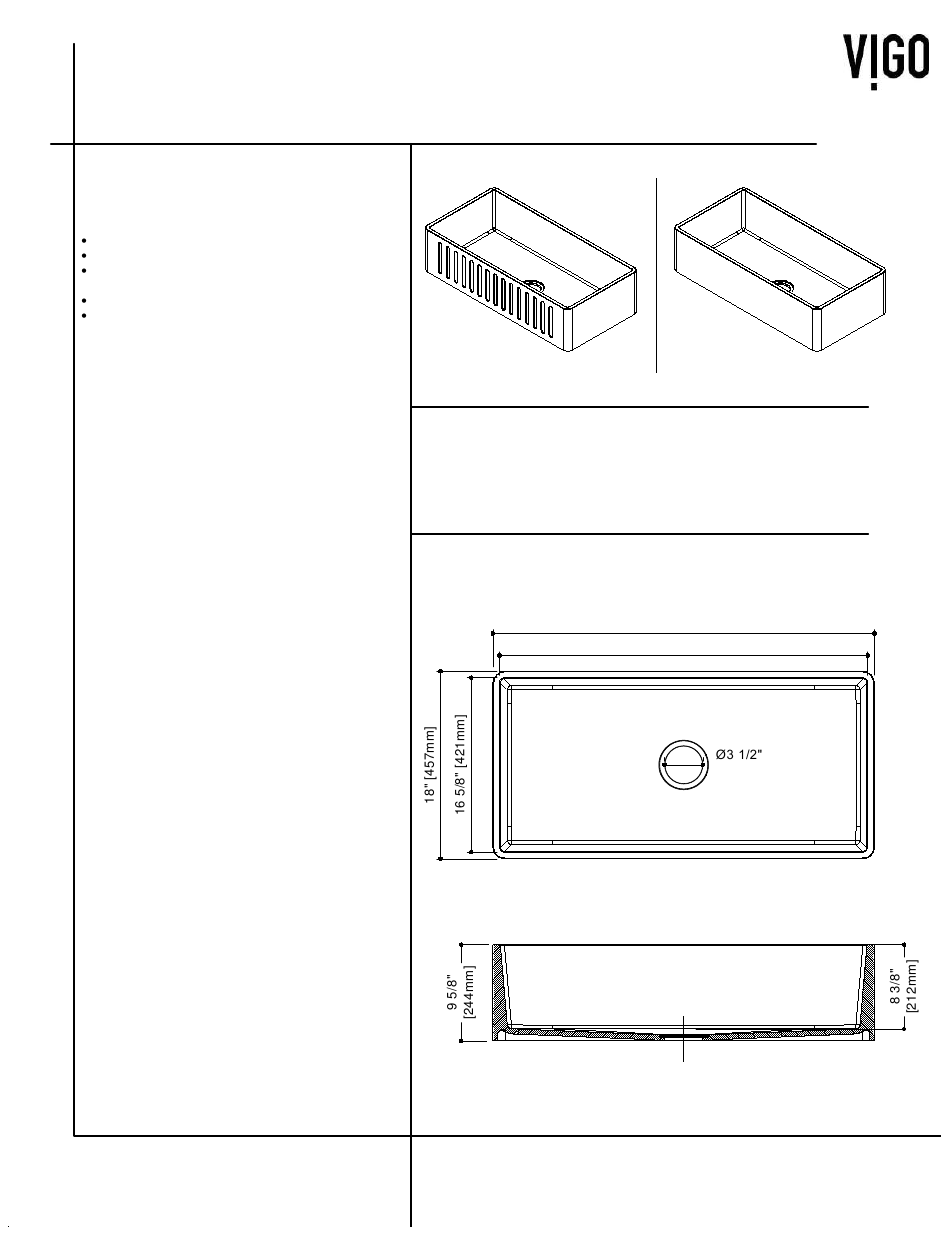

NOMINAL DIMENSIONS
MODEL #
BOWL SIZE
34 5/8" x 16 5/8"
VGRA3618FL
NOTE: DIMENSIONS MAY VARY UP TO 5mm
SINK DEPTH
EXTERIOR
9 5/8"
36" x 18"
36" [914mm]
34 5/8" [878mm]
[90 mm]
TOP VIEW
FRONT VIEW
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for VIGO VG15982
Summary of Contents for VIGO VG15982
- Page 1 SINK SPECIFICATIONS SINGLE BOWL Farmhouse VGRA3618FL Model FEATURED MODEL VGRA3618FL 9 5/8" BOWL DEPTH FEATURES Solid surface, matte stone 10mm radius corners Long-lasting, easy-to-clean, glossy interior and matte exterior finish Center drain placement Reversible for flat apron front or grooved apron front PACKING LIST SINK NOMINAL DIMENSIONS...
- Page 2 Installation instructions Farmhouse Sinks...
- Page 3 Installation Options: Vigo Farmhouse series sinks offer installation options depending on your design.
- Page 5 Care and Maintenance ALWAYS NEVER...
- Page 6 VGRA3618FL VGRA3618FL Surface solide, pierre mate Emplacement du drain central LISTE DES ARTICLES DIMENSIONS NOMINALES 34 5/8" x 16 5/8" 9 5/8" 36" x 18" VGRA3618FL 36" [914mm] 34 5/8" [878mm] [90 mm] dimensions. Nous vous conseillons de ne dimensions dans le domaine des VUE DE DESSUS coupez le comptoir pour ajustement parfait.
- Page 8 Options d'installation :...
- Page 10 Entretien TOUJOURS JAMAIS...
- Page 11 ESPECIFICACIONES DEL LAVABO VGRA3618FL Modelo MODELO DESTACADO VGRA3618FL Esquinas de radio de 10 mm Reversible para el delantal delantero plano o delantal acanalado delantero CONTENIDOS DEL PAQUETE Fregadero DIMENSIONES NOMINALES Colador MODELO PROFUNDIDAD NRO. DE TAZON DEL FREGADERO EXTERIOR DIM. 34 5/8"...
- Page 13 Opciones de Instalaci n:...
- Page 15 Cuidado y Mantenimiento SIEMPRE NUNCA...
-
Page 26: Packing List
FAUCET SPECIFICATIONS Pull-Down Spray Kitchen Faucet Model VG02032 MODEL VG02032 FEATURES Spout PACKING LIST DIMENSIONS MODEL # HOLE FAUCET SPRAYER DIAMETER HEIGHT REACH VG02032 1 3/8" 22 3/8" 9 3/8" 22 3/8" 9 3/8" 1 3/8" NOTE: All faucets are compliant to CEC 2016 regulations. If you have inquiries about your water flow, please email techmail@vigoindustries.com. -
Page 27: Side View
EXPANDABLE 10 1/2" FUNCTION BUTTON 1 3/8" 1 1/2" 9 3/8" 1 3/4" SIDE VIEW TOP VIEW FRONT VIEW VG02032 THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 3/8"... -
Page 28: Maintenance
VIEW THE CONNECTIONS AT THE MALE AND FEMALE FLEXIBLE If you have any questions please contact the Vigo Technical Support HOSE CONNECTIONS. IF LEAKS ARE DETECTED, REFER BACK TO THE INSTRUCTIONS AND ADJUST ACCORDINGLY. -
Page 29: Troubleshooting
5.A - Remove and clean aerator. 5.B - Contact VIGO Technical Support for replacement. PARTS LIST - For any parts needed but not shown, please contact VIGO Technical Support SUPPLY DATE INDICATOR (INTERNAL USE ONLY) PART PART #... - Page 30 VIGO or an authorized VIGO dealer, through the lifetime of the original owner or end-user. VIGO warrants the cartridge component of the Product to be free from defects in workmanship and materials under normal use and service for a period of five (5) years from the initial date of purchase by the owner, contractor, or builder, from VIGO or an authorized VIGO dealer.
- Page 31 ESPECIFICACIONES DEL GRIFO Desplegable spray grifo de la cocina Modelo VG02032 MODELO VG02032 LISTA DE CONTENIDO DIMENSIONES MODELO # ALTURA ALCANCE ORIFICIO GRIFO ROCIADOR VG02032 1 3/8" 22 3/8" 9 3/8" 22 3/8" 9 3/8" 1 3/8" NOTA: Todos los grifos cumplen con CEC 2016 regulaciones. Si usted tiene preguntas acerca de su flujo de agua, por favor escriba techmail@vigoindustries.com.
-
Page 32: Vista Lateral
EXTENSIBLE 10 1/2" 1 3/8" 1 1/2" 9 3/8" 1 3/4" VISTA LATERAL VISTA SUPERIOR VISTA FRONTAL VG02032... -
Page 33: Montaje
CONTENIDO DE LA CAJA MONTAJE 1. CIERRE EL SUMINISTRO DE AGUA. RETIRE EL GRIFO VIEJO Y LAS MANGUERAS FLEXIBLES. LIMPIE LA SUPERFICIE DEL LLAVE LAVABO CON UN LIMPIADOR NO ABRASIVO PARA COLOCAR EL GRIFO NUEVO. ARO DE TUERCA GOMA TRENZADA EN EL GRIFO (2). DE SUMINISTRO EN EXCESO, YA QUE ROCIADOR POR EL AGUA. -
Page 34: Lista De Piezas
1.B - El cartucho es defectuoso 2 - Caudal insuficiente 1.B - 2.A - Suciedad en el aireador Vigo para el reemplazo 4 - Grifo flojo 2.A - Retire y remoje o limpie con un producto no abrasivo (p. ej., vinagre) 2.B -... - Page 35 JA PARTIR DEL 1 DE ABRIL DE 2013 de la fecha inicial de compra por parte del propietario, contratista o constructor a VIGO o a un distribuidor autorizado de VIGO, de por vida para el propietario original o usuario final.
-
Page 36: Liste D'emballage
LISTE D'EMBALLAGE DIMENSIONS TROU ROBINET VAPORISATEUR VG02032 1 3/8" 22 3/8" 9 3/8" 22 3/8" 9 3/8" 1 3/8" de la CEC de 2016. Si vous avez des questions au sujet de votre... -
Page 37: Vue De Dessus
10 1/2" BOUTON FONCTION 1 3/8" 1 1/2" 9 3/8" 1 3/4" VUE DE DESSUS VUE AVANT VG02032... -
Page 38: Entretien
CONTENU DE L'EMBALLAGE 1. COUPEZ L'ALIMENTATION EN EAU. ENLEVEZ L'ANCIEN ROBINET ET LES TUYAUX FLEXIBLES. NETTOYEZ LA SURFACE ANNEAU EN CAOUTCHOUC ASSUREZ-VOUS D'UTILISER DU RUBAN POUR TUYAU ET NE SERREZ PAS D'ALIMENTATION PUISQUE CELA VAPORISATEUR DU PRODUIT CE QUI POURRAIT ENSEMBLE DEUX TUYAUX EN ROBINET... - Page 39 MESURE CORRECTIVE 1.A - Cartouche non assise avec de l'eau chaude et bien asseoir dans le logement. 1.B - Communiquer avec le Soutien technique de Vigo pour un 3 - Fuite aux points de connexion remplacement. 2.B - Encrassement dans tuyau/conduite d'alimentation 2.A - Enlever et faire tremper/nettoyer avec un agent non abrasif...
- Page 40 VIGO INDUSTRIES, LLC ("VIGO") EN VIGUEUR LE 1er AVRIL 2013 original pour usage domestique personnel. Des restrictions additionnelles s'appliquent aux utilisations commerciales. de la vente des produits en cause. Restrictions verre qui pourrait causer des blessures corporelles ou la mort.] constructeur.
