VIM6* Vibration Sensors
Installation

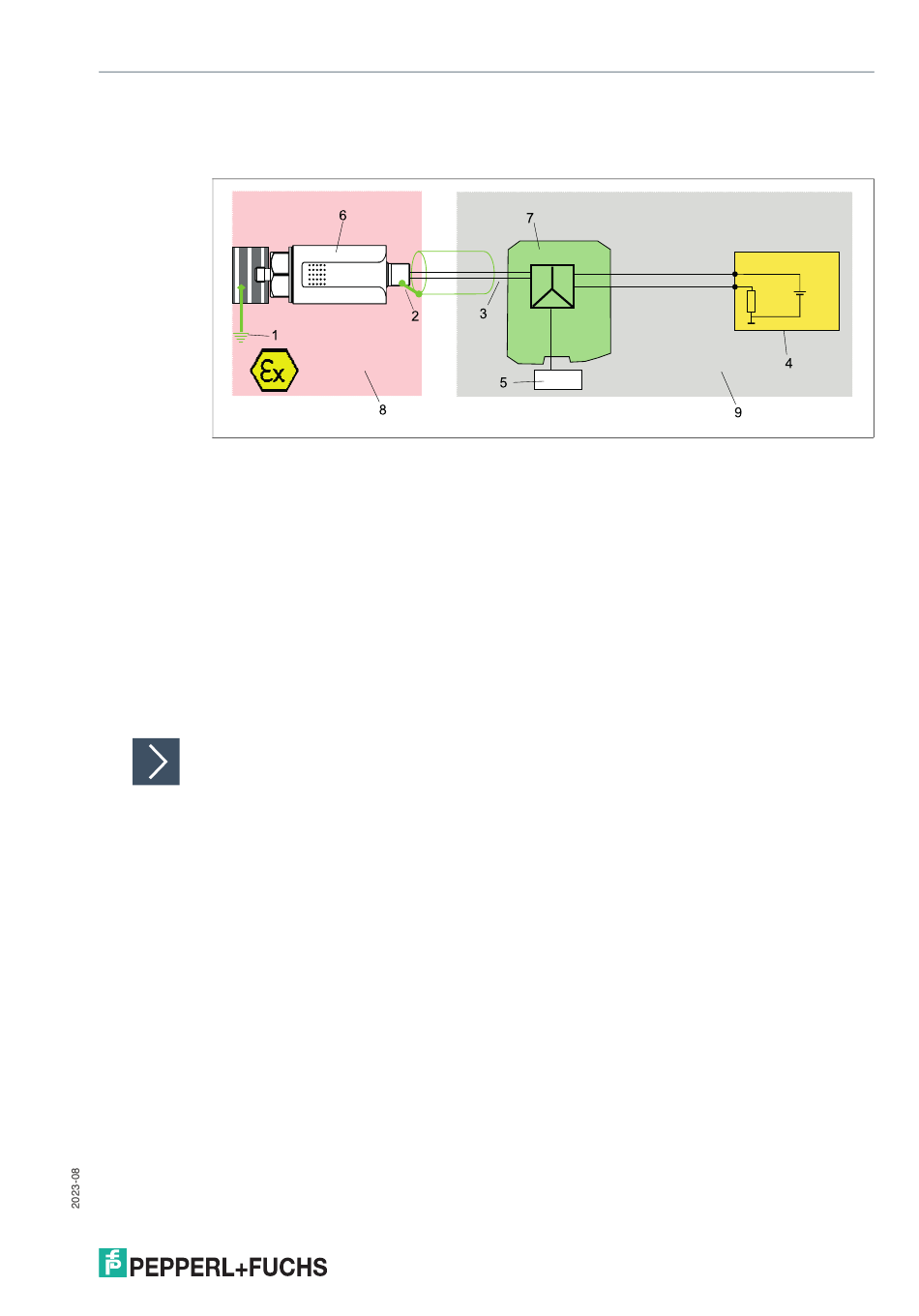

The following diagram applies only to VIM6***-*****-*P*-******* vibration sensors. In this con-
nection concept, a KFD2-STC4-Ex1 SMART transmitter power supply is used as an intrinsic
safety barrier.
Figure 3.4
1
Machine earth
2
The cable shield for the Ex i cable is located above pin 5 of the M12 connector on the
housing potential
3
Do not ground the cable shield
4
Control interface (measuring instrument, PLC, etc.)
5
Power supply
6
Sensor
7
KFD2-STC4-Ex1 SMART transmitter power supply
8
Hazardous areas in Zones 1 and 21 / Zones 2 and 22
9
Non-hazardous area
1.
Connect the vibration sensor to a higher-level electronics / control environment using one of
the four grounding concepts discussed above.
10-30V
0 V
500
Ω
max.
19
