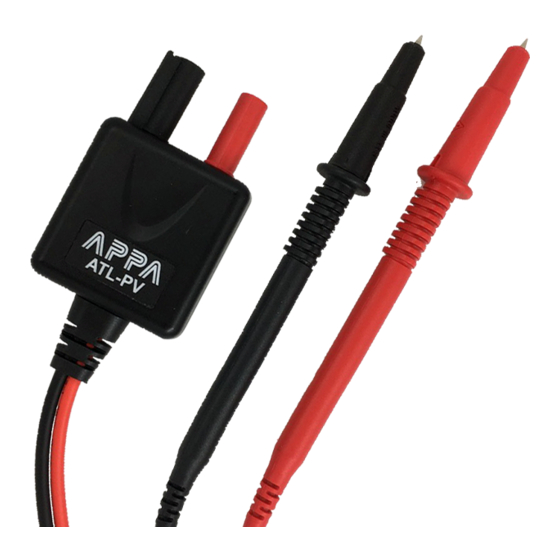

APPA ATL-PV - Test Lead Manual

Probe tip guard cap

For CAT III or CAT IV environments, use the test leads with the probe tip guard cap fixed firmly. Without the probe tip guard cap, the test leads can be used in CAT II environment ONLY.

For 1500V AC & 2000V DC measurement, This test lead can only be used in the environment that is not connected to MAINS directly.

Make sure that test leads are firmly connected to the V-COM terminals of the correct instrument, and the instrument have to switch to PV mode.

• When using test leads or probes, keep your fingers behind the finger guards.
• Use caution with voltages above 30 Vac rms, 42 Vac peak, or 60 Vdc. These voltages pose a shock hazard.
• If the test lead is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
• To reduce the risk of fire or electric shock, do not use this product around explosive gas or in damp locations.
• DO NOT USE the test leads when the internal white insulation layer is exposed.
• DO NOT USE the test leads above maximum ratings of CAT. environment, voltage and current, that are indicated on the probe and the probe tip guard cap.
• DO NOT USE the test leads without the probe tip guard cap in CAT III and CAT IV environments.
• DO NOT USE the test leads to measure over 1000V that is connected to MAINS directly.

Maintenance

Do not attempt to repair this test lead set. It contains no user-serviceable parts. Repair or servicing should only be performed by qualified personnel.

Cleaning

Clean the test lead with a water and mild detergent. DO NOT use abrasives or solvents and DO NOT IMMERSE in liquid.

Specification

Input Impedance: 10MΩ

Overvoltage Category: CAT 0 1500V AC, 2000V DC;
CAT II 1000V AC, 1500V DC;
CAT III 1000V, CAT IV 600V.

Pollution Degree 2
Exposed probe tip length: 19 mm to 4 mm
(0.75 inch to 0.16 inch)

Environmental ratings: -10°C to 45°C
(-4°F to 113°F), 80% R.H.

Altitude: 2000 m (6,562 ft)
Safety Standard: EN61010-031
