Backyard Discovery 2105430 Owner's Manual & Assembly Instructions

Backyard Discovery 2105430 Owner's Manual & Assembly Instructions

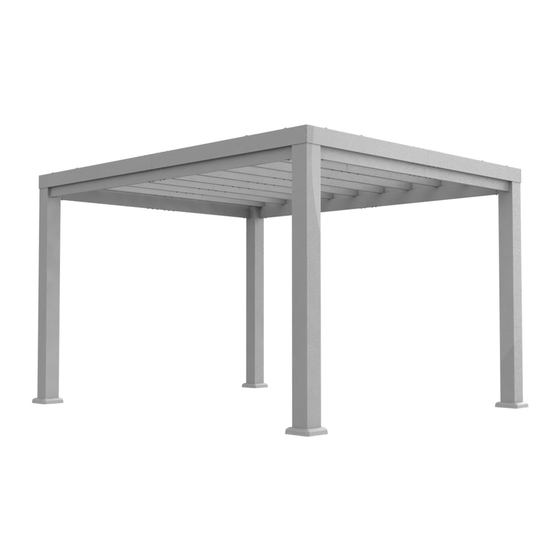

12x10 trenton, windham pergola
Hide thumbs

Advertisement

Quick Links

Download this manual
12x10 TRENTON, WINDHAM PERGOLA
Model #'s 2105133, 2105164,
2105430, 2105461
2105164, 2105461 AU
WINDHAM (WHITE)
SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT YOU NEED
Made in China | INS-2105133, 2105164, 2105430, 2105461-A-12X10 MODERN PERGOLA-ENG 6-24-21
Electrical enclosure available only in North America
average 3 person assembly time
assembly time may vary based on skill level
For the most up to date assembly manual,
to register your set, or to order replacement parts please visit
www.backyarddiscovery.com
TO ORDER REPLACEMENT PARTS.
Owner's Manual & Assembly Instructions
MANUFACTURED BY:
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
800-856-4445
2105133, 2105430 AU
TRENTON (BLACK)

Advertisement

loading

Related Manuals for Backyard Discovery 2105430

Summary of Contents for Backyard Discovery 2105430

  • Page 1 SAVE THIS ASSEMBLY MANUAL FOR FUTURE REFERENCE IN THE EVENT THAT YOU NEED TO ORDER REPLACEMENT PARTS. Made in China | INS-2105133, 2105164, 2105430, 2105461-A-12X10 MODERN PERGOLA-ENG 6-24-21...
  • Page 2 INSTALLATION SERVICES AVAILABLE! Need a helping hand? Let our team of professionals handle the installation for you! *Installation services are only available to U.S. customers. With Go Con! gure, we bring you 18 years of experience right to your doorstep. We service a wide array of indoor and outdoor recreation products that most consumers don’t have the time or ability to deliver &...
  • Page 3 Owner’s Manual Please Read This Before Starting Assembly MISSING A PART? CALL US BEFORE GOING BACK TO THE STORE The store where you made your purchase does not stock parts for this item. If you have assembly questions or you are missing or have damaged parts, please call 1-800-856-4445 you can also visit www.backyarddiscovery.com...

  • Page 4: Limited Warranty

    Backyard Discovery Wood Patio Structure Backyard Discovery warrants this wood patio product to be free from defects in materials and workmanship for a period of two (2) years from the original date of purchase. All wood carries a five (5) year warranty against rot and decay from the original purchase date. LIMITED WARRANTY...
  • Page 5 Title 16 CRF Part 1303. • Permanent structures may require a building • Touch up paint is available through Backyard Discovery. permit. As the purchaser and or installer of this Please have the product number tag available for product you are advised to consult local planning, reference for customer support.

  • Page 6: Assembly Tip

    Assembly Tips & Tools Required Owner’s Manual ASSEMBLY TIP: Keep and eye out for these boxes which will contain helpful pictures and information making the assembly process as quick and painless as possible. Sorting Parts When removing the parts from the boxes we recommend arranging them by part number before you begin assembly.
  • Page 7 Owner's Manual Basic Setup Dimensions & Assembly Notes It is critically important that you start with square and level footings, concrete pad or deck to attach your structure • Pay close attention to the items needed for each step. Make sure you are using the correct hardware for each step.

  • Page 8: Parts Identification

    Owner's Manual Parts Identification Metal Components (Not to Scale) A POST-A4M01436 (x4) 6"X6"X89" (152x152x2261) B1 JOIST END-A4M01469 (x2) 1 3/8"X5 1/4"X71 7/8" (36x134x1826) B2 JOIST END-A4M01470 (x2) 1 3/8"X5 1/4"X71 7/8" (36x134x1826) C1 JOIST END-A4M01471 (x2) 1 3/8"X5 1/4"X65 3/4" (36x134x1670) C2 JOIST END-A4M01472 (x2) 1 3/8"X5 1/4"X65 3/4"...
  • Page 9 Owner's Manual Parts Identification Metal Components (Not to Scale) BRACKET-A4M01452 (x8) 1 1/4"X4 1/8"X5" (32x104x128) W BRACKET-A4M01453 (x4) 3"X5 1/8"X9 1/8" (78x130x233) SPLICE BRACKET-A4M01438 SPLICE BRACKET-A4M01437 (x10) 1 1/2"X3"X15 3/4" (37x77x400) (x4) 1 1/4"X5 1/8"X15 3/4" (33x131x400) SPLICE BRACKET-A4M01439 SPLICE BRACKET-A4M01440 (x2) 1 1/4"X5 1/8"X19 5/8"...

  • Page 10: Hardware Components

    Owner's Manual Parts Identification Hardware Components H101040 HEX PAN HEAD (324) M6x1x20 H101053 STEEL WASHER H101054 SEALANT WASHER (344) (344) 6x20 HEX PAN HEAD H101042 M6x1x100 (20) HEX SOCKET SCREW H101043 M6x1x20 (16) CONCRETE ANCHOR H100120 1/4x2 (16) H101052 ALLEN BIT H101051 ALLEN WRENCH...
  • Page 11 PERGOLA ASSEMBLY STEP 1 HEX PAN HEAD F JOIST END-A4M01466 H101040 1 5/8"X3 1/8"X58 1/2" (41x81x1485) STEEL WASHER (x10) H101053 M6x1x20 (40) 6x20 (40) SPLICE BRACKET-A4M01438 (x10) 1 1/2"X3"X15 3/4" (37x77x400) SEALANT WASHER H101054 (40) COMPLETE THIS STEP TEN TIMES.
  • Page 12 PERGOLA ASSEMBLY STEP 2 HEX PAN HEAD H101040 STEEL WASHER H101053 M6x1x20 (40) 6x20 (40) F JOIST END-A4M01466 1 5/8"X3 1/8"X58 1/2" (41x81x1485) (x10) SEALANT WASHER H101054 (40) COMPLETE THIS STEP TEN TIMES.
  • Page 13 PERGOLA ASSEMBLY STEP 3 HEX PAN HEAD H101040 E2 JOIST END-A4M01468 STEEL WASHER H101053 M6x1x20 (12) 1 3/8"X5 1/4"X53 3/4" (36x134x1365) (x2) 6x20 (12) SEALANT WASHER H101054 SPLICE BRACKET-A4M01437 (x2) 1 1/4"X5 1/8"X15 3/4" (33x131x400) (12) COMPLETE THIS STEP TWICE.
  • Page 14 PERGOLA ASSEMBLY STEP 4 HEX PAN HEAD H101040 STEEL WASHER H101053 M6x1x20 (12) 6x20 (12) E1 JOIST END-A4M01467 1 3/8"X5 1/4"X53 3/4" (36x134x1365) (x2) SEALANT WASHER H101054 (12) COMPLETE THIS STEP TWICE.
  • Page 15 PERGOLA ASSEMBLY STEP 5 HEX PAN HEAD D1 JOIST END-A4M01464 H101040 STEEL WASHER H101053 (x2) 1 3/8"X5 1/4"X59 7/8" (36x134x1521) M6x1x20 (12) 6x20 (12) SEALANT WASHER H101054 SPLICE BRACKET-A4M01437 (x2) 1 1/4"X5 1/8"X15 3/4" (33x131x400) (12) COMPLETE THIS STEP TWICE.
  • Page 16 PERGOLA ASSEMBLY STEP 6 D2 JOIST END-A4M01465 HEX PAN HEAD H101040 (x2) 1 3/8"X5 1/4"X59 7/8" (36x134x1521) STEEL WASHER H101053 M6x1x20 (12) 6x20 (12) SEALANT WASHER H101054 N1 A6P00493 (x4) (12) L PLUG COMPLETE THIS STEP TWICE.
  • Page 17 PERGOLA ASSEMBLY STEP 7 HEX PAN HEAD H101040 C1 JOIST END-A4M01471 STEEL WASHER H101053 (x2) M6x1x20 1 3/8"X5 1/4"X65 3/4" (36x134x1670) 6x20 SPLICE BRACKET-A4M01440 (x2) 1 1/4"X5 1/8"X11" (33x130x280) SEALANT WASHER H101054 COMPLETE THIS STEP TWICE.
  • Page 18 PERGOLA ASSEMBLY STEP 8 HEX PAN HEAD H101040 STEEL WASHER H101053 M6x1x20 6x20 C2 JOIST END-A4M01472 (x2) 1 3/8"X5 1/4"X65 3/4" (36x134x1670) SEALANT WASHER H101054 COMPLETE THIS STEP TWICE.
  • Page 19 PERGOLA ASSEMBLY STEP 9 B1 JOIST END-A4M01469 HEX PAN HEAD H101040 1 3/8"X5 1/4"X71 7/8" (36x134x1826) (x2) STEEL WASHER H101053 M6x1x20 (12) 6x20 (12) SPLICE BRACKET-A4M01439 SEALANT WASHER H101054 (x2) 1 1/4"X5 1/8"X19 5/8" (33x131x500) (12) COMPLETE THIS STEP TWICE.
  • Page 20 PERGOLA ASSEMBLY STEP 10 HEX PAN HEAD H101040 STEEL WASHER H101053 M6x1x20 (12) 6x20 (12) JOIST END-A4M01470 (x2) 1 3/8"X5 1/4"X71 7/8" (36x134x1826) SEALANT WASHER H101054 (12) COMPLETE THIS STEP TWICE.
  • Page 21 PERGOLA ASSEMBLY STEP 11 POST-A4M01436 HEX PAN HEAD H101040 (x4) 6"X6"X89" (152x152x2261) STEEL WASHER H101053 M6x1x20 (16) 6x20 (16) SEALANT WASHER H101054 P1 A4M01454 P2 A4M01455 (x 4) (16) (x4) POST FOOT POST FOOT COVER COMPLETE THIS STEP FOUR TIMES.
  • Page 22 PERGOLA ASSEMBLY STEP 12 HEX PAN HEAD H101040 POST ASSEMBLY - FROM STEP 11 STEEL WASHER H101053 M6x1x20 (16) 6x20 (16) SEALANT WASHER H101054 G1 BRACKET-A4M01452 (16) (x8) 1 1/4"X4 1/8"X5" (32x104x128) COMPLETE THIS STEP FOUR TIMES.
  • Page 23 PERGOLA ASSEMBLY STEP 13 HEX PAN HEAD H101040 STEEL WASHER H101053 M6x1x20 (16) 6x20 (16) INNER END JOIST ASSEMBLY - FROM STEPS 3 & 4 SEALANT WASHER H101054 (16) COMPLETE THIS STEP TWICE.
  • Page 24 PERGOLA ASSEMBLY STEP 14 HEX PAN HEAD H101040 STEEL WASHER H101053 M6x1x20 (12) 6x20 (12) INNER SIDE JOIST ASSEMBLY - FROM STEPS 7 & 8 SEALANT WASHER H101054 (12)
  • Page 25 PERGOLA ASSEMBLY STEP 15 HEX PAN HEAD H101040 M6x1x20 (16) STEEL WASHER H101053 6x20 (16) OUTER SIDE JOIST ASSEMBLY - FROM STEPS 9 & 10 H101043 HEX SOCKET SCREW M6x1x20 SEALANT WASHER H101054 (16)
  • Page 26 PERGOLA ASSEMBLY STEP 16 HEX PAN HEAD H101040 M6x1x20 (16) STEEL WASHER H101053 6x20 (16) OUTER END JOIST ASSEMBLY - FROM STEPS 5 & 6 H101043 HEX SOCKET SCREW M6x1x20 SEALANT WASHER H101054 (16)
  • Page 27 PERGOLA ASSEMBLY STEP 17 HEX PAN HEAD H101040 STEEL WASHER H101053 M6x1x20 (32) 6x20 (32) W BRACKET-A4M01453 (x4) 3"X5 1/8"X9 1/8" (78x130x233) SEALANT WASHER H101054 (32)
  • Page 28 PERGOLA ASSEMBLY STEP 18 HEX PAN HEAD H101042 STEEL WASHER H101053 M6x1x100 (20) 6x20 (20) JOIST ASSEMBLY - FROM STEPS 1 & 2 (10) SEALANT WASHER H101054 (20)
  • Page 29 PERGOLA ASSEMBLY STEP 19 L ANGLED ROD-A4M01450 HEX PAN HEAD (x4) H101040 1 1/4"X1 1/2"X36 3/8" (33x38x924) STEEL WASHER H101053 M6x1x20 (32) 6x20 (32) ANGLED ROD-A4M01451 (x4) 1 1/4"X1 1/2"X12 7/8" (33x38x327) SEALANT WASHER H101054 (32) COMPLETE THIS STEP FOUR TIMES.
  • Page 30 PERGOLA ASSEMBLY STEP 20 H100120 CONCRETE ANCHOR FLAT WASHER H100630 1/4x2 (16) (16) BLK 8x19...
  • Page 31 PERGOLA ASSEMBLY STEP 21 N2 A4M01352 (x16) HOLE COVER...

  • Page 32: Electrical Enclosure

    ELECTRICAL ENCLOSURE Electrical enclosure available only in North America FOR ELECTRICAL ENCLOSURE INSTALLATION REFER TO ASSEMBLY INSTRUCTIONS THAT COMES PACKAGED WITH THE ELECTRICAL ENCLOSURE KIT. INSTALL ON ANY POST THAT IS DESIRED. FOLLOW DIRECTIONS FOR PROPER INSTALLATION.
