Operation

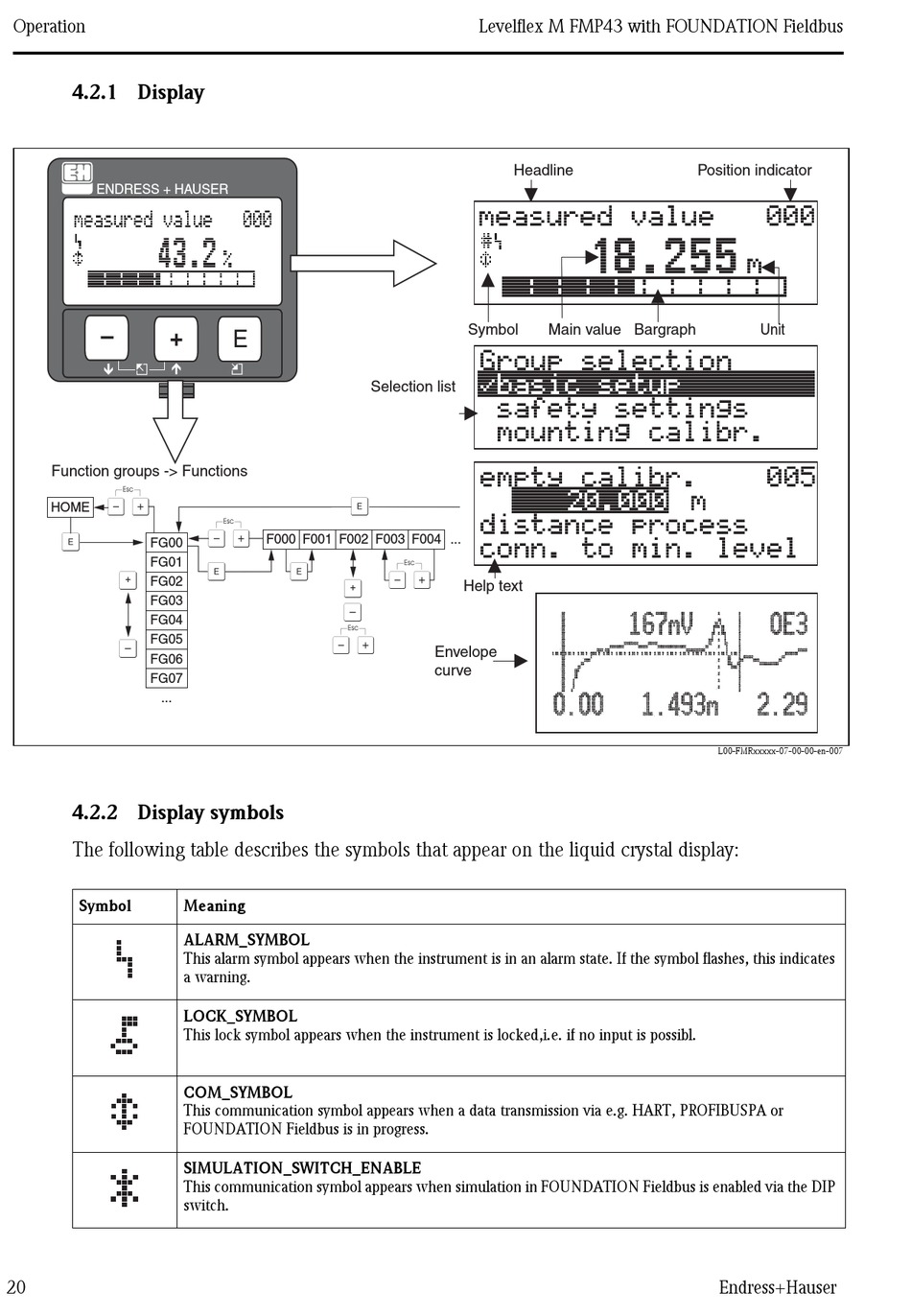

4.2.1 Display
ENDRESS + HAUSER
–
+
Function groups -> Functions
X
HOME
F
FG00
FG01
O
FG02
FG03
FG04
FG05
S
FG06
FG07
...
4.2.2 Display symbols
The following table describes the symbols that appear on the liquid crystal display:
Symbol
20
E
F
X
F000 F001 F002 F003 F004 ...
F F
O
S
X
Meaning
ALARM_SYMBOL
This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates
a warning.
LOCK_SYMBOL
This lock symbol appears when the instrument is locked,i.e. if no input is possibl.
COM_SYMBOL
This communication symbol appears when a data transmission via e.g. HART, PROFIBUSPA or
FOUNDATION Fieldbus is in progress.
SIMULATION_SWITCH_ENABLE
This communication symbol appears when simulation in FOUNDATION Fieldbus is enabled via the DIP
switch.
Levelflex M FMP43 with FOUNDATION Fieldbus
Headline
Symbol
Selection list
X
Help text
Envelope
curve
Position indicator
Main value Bargraph
L00-FMRxxxxx-07-00-00-en-007
Endress+Hauser
Unit
