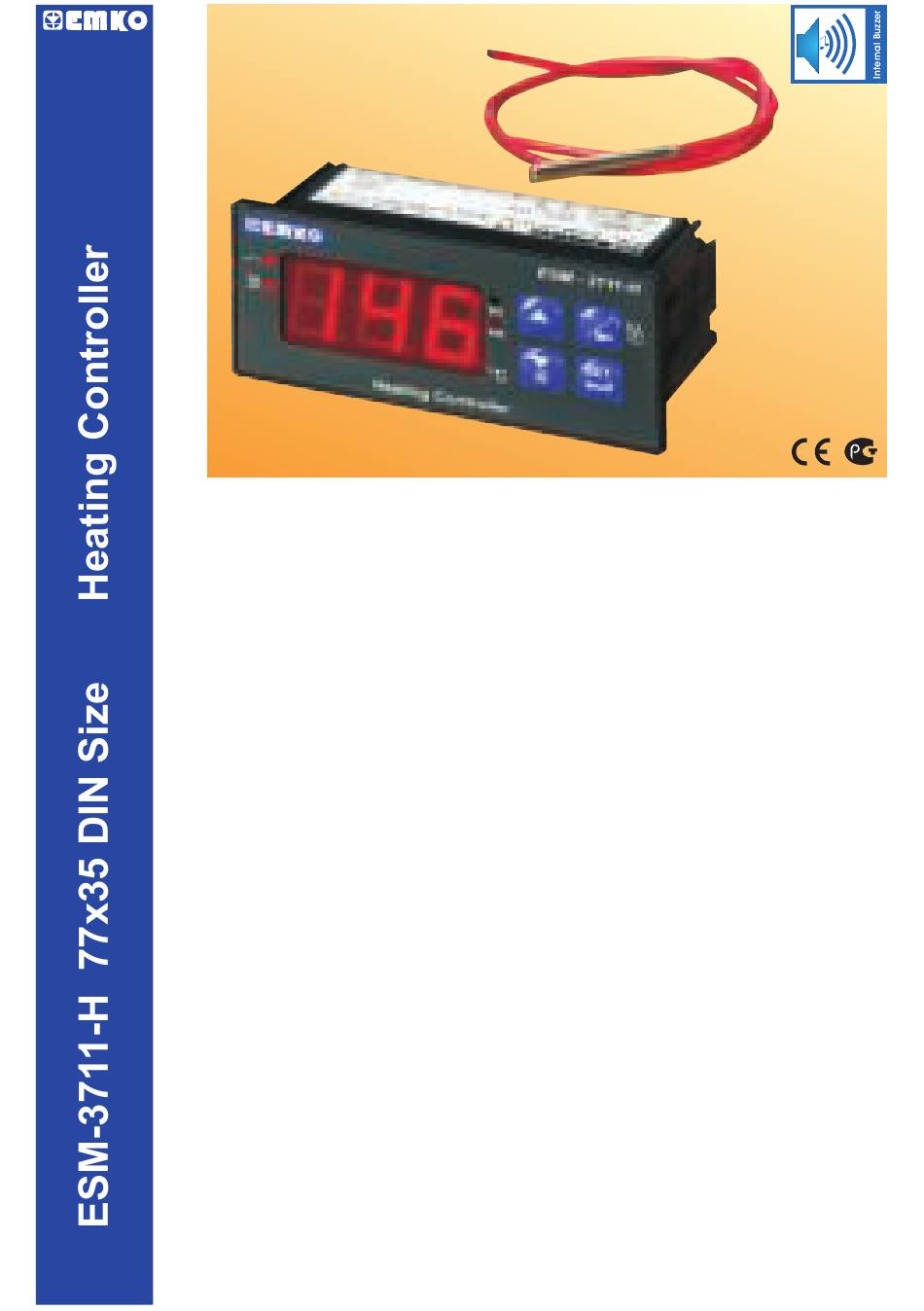

ESM-
3711-H
Digital, ON / OFF Temperature Controller
- 3 Digits display
- PTC Input or,
J type Thermocouple Input or,
K type Thermocouple Input or,
2-Wire PT 100 Input or,
2-Wire PT 1000 Input (It must be determined in order)
- ON/OFF temperature control
- Adjustable temperature offset
- Set value low limit and set value high limit boundaries
- Relay or SSR driver output
- Digital Input (Cooking time start/stop input)
- Adjustable cooking time from front panel
- Temperature control according to the cooking time (Timer)
- User can select to start cooking time (Timer) when temperature
reaches to the set value
- Temperature control with manual heating function
- Alarm parameters
- Adjustable internal buzzer according to cooking time , probe
defect and alarm status
- Button protection
- Password protection for programming section
77 x 35 DIN
Size
Instruction Manual. ENG ESM-3711-H 02 V01 07/08
Advertisement
Table of Contents
Related Manuals for EMKO ESM-3711-H
Summary of Contents for EMKO ESM-3711-H
- Page 1 - Temperature control with manual heating function - Alarm parameters - Adjustable internal buzzer according to cooking time , probe defect and alarm status - Button protection - Password protection for programming section Instruction Manual. ENG ESM-3711-H 02 V01 07/08...
- Page 2 ABOUT INSTRUCTION MANUAL Instruction manual of ESM-3711-H Temperature Controller consists of two main sections. Explanation of these sections are below. Also, there are other sections which include order information and technical specifications of the device. All titles and page numbers in instruction manual are in “CONTENTS”...
-
Page 3: Table Of Contents
1.2 ORDERING INFORMATION 1.3 WARRANTY 1.4 MAINTENANCE 2.INSTALLATION............................ Page 2.1 GENERAL DESCRIPTION 2.2 FRONT VIEW AND DIMENSIONS OF ESM-3711-H TEMPERATURE CONTROLLER 2.3 PANEL CUT-OUT 2.4 ENVIRONMENTAL RATINGS 2.5 PANEL MOUNTING 2.6 INSTALLATION FIXING CLAMP 2.7 REMOVING FROM THE PANEL 3.ELECTRICAL WIRINGS........................ - Page 4 EU DECLARATION OF CONFORMITY Manufacturer Company Name Emko Elektronik A.S. Manufacturer Company Address: DOSAB, Karanfil Sokak, No:6, 16369 Bursa, Turkiye The manufacturer hereby declares that the product conforms to the following standards and conditions. Product Name : Heating Controller Model Number...
-
Page 5: General Specifications
1.Preface ESM-3711-H series heating controllers are designed for measuring and controlling temperature. They can be used in many applications with their easy use, On/ Off control form and cooking time properties. Some application fields which they are used are below:... -
Page 6: Ordering Information
Customer 1.3 Warranty EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely. -
Page 7: Installation
2.Installation Before beginning installation of this product, please read the instruction manual and warnings below carefully. In package , - One piece unit - Two pieces mounting clamps - One piece instruction manual A visual inspection of this product for possible damage occured during shipment is recommended before installation. -
Page 8: General Description
2.1 General Description Mounting Clamp Front Panel IP65 protection NEMA 4X Panel surface (maximum thickness 15 mm / 0.59 inch) 2.2 Front View and Dimensions of ESM-3711-H Temperature Controller ESM - 3711-H °C Heating Controller 77 mm / 3.03 inch... -
Page 9: Panel Cut-Out
Maximum 15 mm / 0.59 inch 58.5 mm / 2.30 inch 4 mm /0.16 inch 2.3 Panel Cut-Out 110 mm / 4.33 inch (min) 71 mm / 2.79 inch... -
Page 10: Environmental Ratings
2.4 Environmental Ratings Operating Conditions Operating Temperature 0 to 50 °C Max. Operating Humidity : Rh (non-condensing) Altitude Up to 2000 m. Forbidden Conditions: Corrosive atmosphere Explosive atmosphere Home applications (The unit is only for industrial applications) 2.5 Panel Mounting 1-Before mounting the device in your panel, make sure that the cut-out is of the right size. -
Page 11: Installation Fixing Clamp
2.6 Installation Fixing Clamp The unit is designed for panel mounting. 1-Insert the unit in the panel cut-out from the front side. 2- Insert the mounting clamps to the fixing sockets that located left and right sides of device and make the unit completely immobile within the panel Montage of the unit to a system must be done with it’s own fixing clamps. -
Page 12: Electrical Wirings
3.Electrical Wiring You must ensure that the device is correctly configured for your application. Incorrect configuration could result in damage to the process being controlled, and/or personal injury. It is your responsibility, as the installer, to ensure that the configuration is correct. Device parameters has factory default values. -
Page 13: Electrical Wiring Diagram
3.2 Electrical Wiring Diagram Electrical wiring of the device must be the same as ‘Electrical Wiring Diagram’ below to prevent damage to the process being controlled and personnel injury. P/N : ESM-3 711-H CAT II OUTPUT DIGITAL PTC, PT-100 10 A@250 V V PT-1000 INPUT (+) (-) -
Page 14: View Of The Device Label
3.3 View of the Device Label Device Label for J Type ( 0 ; 800 ) scaled, with Thermocouple input , 230V Supply Voltage Input and Relay Output CAT II P/N : ESM-3711-H - 5.05.0.1/00.00/1.0.0.0 OUTPUT DIGITAL J Type TC 230 V ±... -
Page 15: Supply Voltage Input Connection Of The Device
3.4 Supply Voltage Input Connection of the Device Connection of Supply Voltage Connection of Supply Voltage Input Input Note-1 Note-1 External External Fuse Fuse (1 A T) (1 A T) Power Power Supply Supply Switch Switch Supply Voltage Supply Voltage 230 V (±... -
Page 16: Temperature Input Sensor Connection
3.5 Temperature Sensor Input Connection 3.5.1 TC (Thermocouple) Connection Connect the wires with the polarity as shown in the figure left. A l w a y s u s e c o m p e n s a t i o n w i r e corresponding to the thermocouple used. - Page 17 3.6 Galvanic Isolation Test Values of ESM-3 711-H Temperature Controller 2000 ESM-3 711-H-5..500V ( For ESM- 711-H-3..) Supply Voltage Ground Input 2000V V 2000V V Output-1 Relay Output 2000V V Optional SSR Driver Output 2000V V Analog Inputs 2000 V V Digital nputs...
-
Page 18: Output Connections
3.7 Output Connections 3.7.1 Relay Output Connection Device 10 V T Fuse Load Fuses must be selected according to the application. 3.7.2 Output (SSR Driver Output) Connection Device Last Control Element (SSR) Max. 15mA Fuse Load Fuses must be selected according to the application. -
Page 19: Front Panel Definition And Accessing To The Menus
4. Front Panel Definition and Accessing to the Menus Led indication of Led indication of SET value Programming Mode is changing mode active Note-1 It is used to Led indication of increase the value Output is Active ESM - 3711-H and access to the parameter in Cooking Time Active... -
Page 20: Changing And Saving Set Value
4.2 Changing and Saving Set Value SET Value Screen Main Operation Screen °C °C When SET button is pressed, SV LED Change the SET value with increment lights on and SET value is shown on and decrement buttons. the display. SET Value Screen Main Operation Screen °C... -
Page 21: Programming Mode Parameter List
4.4 Programming Mode Parameter List Hysteresis Parameter for Output ( Default = 0 ) From 0 to 100 °C for TC Type devices, From 0 to 100 °C for PT-100 (-50°C , 400°C) and PT-1000 (-50°C , 400°C) , From 0.0 to 10.0 °C for PT-100 (-19.9°C, 99.9°C) and PT-1000 (-19.9°C, 99.9°C) From 0 to 20 °C for PTC (-50°C, 150°C) , From 0.0 to 10.0 °C PTC (-19.9°C, 99.9°C) Temperature... - Page 22 Cooking Time Starting Conditions Parameter ( Default = 0 ) This parameter can be observed if cooking time (Timer) is 1. ³ Cooking time (Timer) is started with cooking ON/OFF button or when cooking time start/stop input is getting closed condition. Cooking time (Timer) is started when temperature reaches to the process set value after pressing cooking ON/OFF button or when cooking time start/stop input is getting closed condition.
-
Page 23: Cooking Time (Timer) On/Off Operation
Buzzer is Active During This Time ( Default = This parameter can be observed if buzzer function selection is 1. ³ It can be adjusted from 1 to 99 minutes. When this parameter is 1, if decrement button is pressed, is observed. -
Page 24: Operation Graphics Of Esm-3711-H Heating Controller
4.6 Operation Graphics of ESM-3711-H Heating Controller 1- When cooking time parameter 1, if selection of temperature control and starting ³ the cooking time parameter = 0 ( Temperature control and cooking time starts at power on) is selected; ( Continuous Operation) - Page 25 3- When cooking time parameter 1, if selection of temperature control and starting ³ the cooking time parameter = 2 ( Temperature control and cooking time (Timer) can be started by pressing cooking ON/OFF button or when cooking time start/stop input is getting closed condition) is selected;...
-
Page 26: Easy Access Diagram Of Programming Mode Parameters
4.7 Easy Access Diagram of Programming Mode Parameters 5 secs °C °C °C Main Operation Screen Password Entering Programming Section Screen Entering Screen Enter password with increment and decrement buttons °C °C °C Press SET/OK button for Minimum Set Value Password Hysteresis accessing parameters... -
Page 27: Entering To The Programming Mode, Changing And Saving Parameters
4.8 Entering to the Programming Mode, Changing and Saving Parameters Operation Screen °C °C Note-1: If programming When SET button is pressed Programming Section section accessing for 5 seconds, “PR” led starts Entering Screen password is 0, to blink. If programming Press increment hysteresis screen section entering password is... - Page 28 Programming Screen °C °C Minimum Set Value Parameter Minimum Set Value Press increment button for accessing Change the value with to the parameter value. Press Set increment and decrement button for accessing to the next buttons. parameter. Programming Screen °C °C Minimum Set Value Minimum Set Value Parameter...
- Page 29 5. Failure Messages in ESM- 3711-H Heating Controller 1- Probe failure in analog inputs. Sensor ESM - 3711-H connection is wrong or there is no sensor connection. When this message is on the screen, if buzzer function selection parameter is 3 or 4 , internal buzzer starts to operate.
-
Page 30: Specifications
6. Specifications Device Type : Heating Controler Housing&Mounting : 77mm x 35mm x 62.5mm plastic housing for panel Mounting. Panel cut-out is 71x29mm. Protection Class : NEMA 4X (IP65 at front, IP20 at rear). Weight : Approximately 0.20 Kg. Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters with none condensing humidity.
