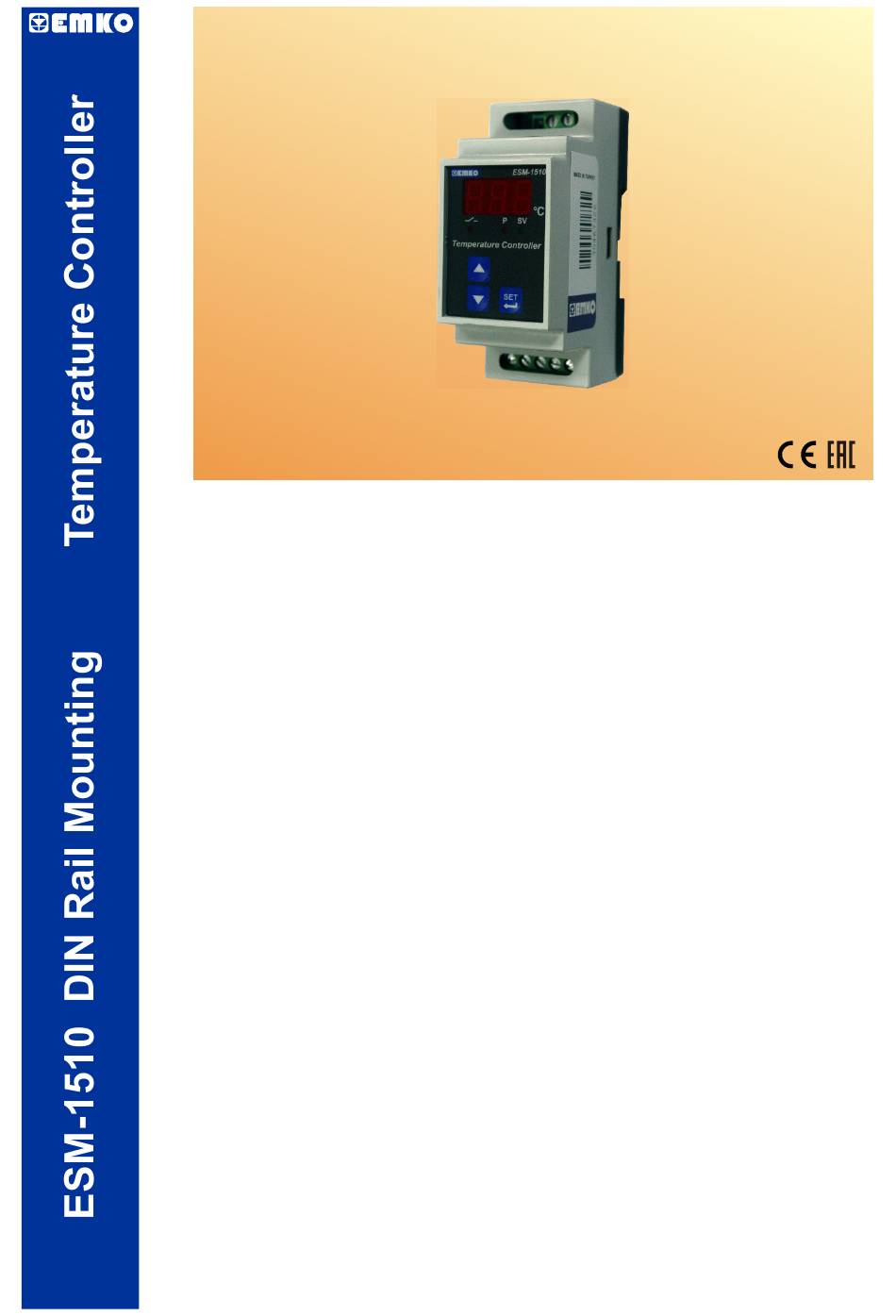

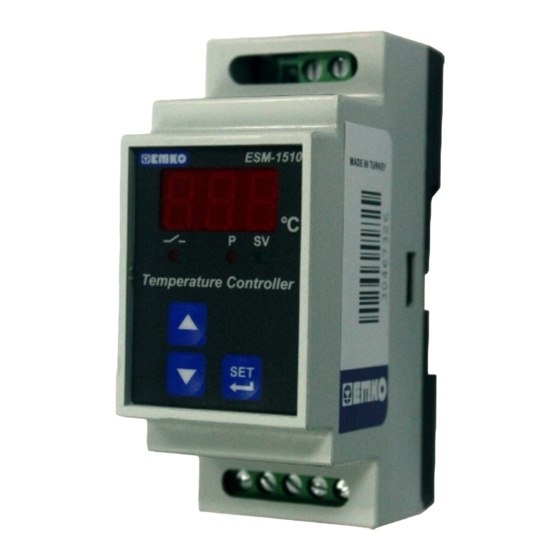

ESM-1510 DIN Rail Mounting Type
Digital, ON / OFF Temperature Controller
- 3 Digits display
- NTC Input or,
PTC Input or,
J type thermocouple Input or,
K type thermocouple Input or,
2-Wire PT 100 Input or,
2-Wire PT 1000 Input (It must be determined in order)
- ON/OFF temperature control
- Selectable heating or cooling function
- Selection of operation with hysteresis
- Adjustable temperature offset
- Set value low limit and set value high limit boundaries
- Relay or SSR driver output
- Operation selection of compressor operates continuously, stops
or operates periodically in case of probe defect
- Compressor protection delays
- Password protection for programming mode
Instruction Manual. ENG ESM-1510 02 V08 08/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESM-1510-N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMKO ESM-1510-N

Summary of Contents for EMKO ESM-1510-N

  • Page 1 ESM-1510 DIN Rail Mounting Type Digital, ON / OFF Temperature Controller - 3 Digits display - NTC Input or, PTC Input or, J type thermocouple Input or, K type thermocouple Input or, 2-Wire PT 100 Input or, 2-Wire PT 1000 Input (It must be determined in order) - ON/OFF temperature control - Selectable heating or cooling function - Selection of operation with hysteresis...
  • Page 2 ABOUT INSTRUCTION MANUAL Instruction manual of ESM-1510 Temperature Controller consists of two main sections. Explanation of these sections are below. Also, there are other sections which include order information and technical specifications of the device. All titles and page numbers in instruction manual are in “CONTENTS”...

  • Page 3: Table Of Contents

    Contents 1.PREFACE............................Page 1.1 GENERAL SPECIFICATIONS 1.2 ORDERING INFORMATION 1.3 WARRANTY 1.4 MAINTENANCE 2.INSTALLATION............................ Page 2.1 GENERAL DESCRIPTION 2.2 FRONT VIEW AND DIMENSIONS OF ESM-1510 TEMPERATURE CONTROLLER 2.3 ENVIRONMENTAL RATINGS INSTALLATION ONTO THE RAIL 2.5 REMOVING FROM THE RAÝL 3.ELECTRIAL WIRINGS......................... Page 3.1 TERMINAL LAYOUT AND CONNECTION INSTRUCTIONS 3.2 ELECTRICAL WIRING DIAGRAM...
  • Page 4 EU DECLARATION OF CONFORMITY Manufacturer’s Name : EMKO ELEKTRONIK A.S. Manufacturer’s Address : DOSAB, Karanfil Sk., No:6, 16369 Bursa, TURKEY The manufacturer hereby declares that the product: Product Name : Temperature Controller Unit Type Number : ESM-1510 Product Category : Electrical equipment for measurement, control and...

  • Page 5: General Specifications

    1.Preface ESM-1510 series temperature controllers are designed for measuring and controlling temperature. They can be used in many applications with their On / Off control form, heating and cooling control form and easy-use properties. Some application fields which they are used are below: Application Fields Glass Plastic...

  • Page 6: Ordering Information

    Customer 1.3 Warranty EMKO Elektronik warrants that the equipment delivered is free from defects in material and workmanship. This warranty is provided for a period of two years. The warranty period starts from the delivery date. This warranty is in force if duty and responsibilities which are determined in warranty document and instruction manual performs by the customer completely.

  • Page 7: Installation

    2.Installation Before beginning installation of this product, please read the instruction manual and warnings below carefully. In package , - One piece unit - One piece rail lock apparatus - One piece instruction manual A visual inspection of this product for possible damage occured during shipment is recommended before installation.

  • Page 8: General Description

    2.1 General Description Rail Lock Apparatus 2.2 Front View and Dimensions of ESM-1510 Temperature Controller ESM-1510 °C Temperature Controller 35 mm / 1.38 inch...

  • Page 9: Environmental Ratings

    59 mm / 2.32 inch 2.3 Environmental Ratings Operating Conditions Operating Temperature : 0 to 50 °C Max. Operating Humidity : 90 % Rh (non-condensing) Altitude : Up to 2000 m. Forbidden Conditions: Corrosive atmosphere Explosive atmosphere Home applications (The unit is only for industrial applications)

  • Page 10: Installation Onto The Rail

    2.4 Installation onto the Rail The unit is designed for rail mounting. 1- Put into the unit upper side of the rail properly. 2- Pull down the rail lock apparatus via a screw driver. 3.-Push the unit from the underside for mounting to the rail.

  • Page 11: Electrial Wirings

    3.Electrical Wiring You must ensure that the device is correctly configured for your application. Incorrect configuration could result in damage to the process being controlled, and/or personal injury. It is your responsibility, as the installer, to ensure that the configuration is correct. Device parameters has factory default values.

  • Page 12: Electrical Wiring Diagram

    3.2 Electrical Wiring Diagram Electrical wiring of the device must be the same as ‘Electrical Wiring Diagram’ below to prevent damage to the process being controlled and personnel injury. Temperature Sensor Input (TC, NTC, PTC, PT-100 or PT-1000) NTC, PTC, PT-100, PT1000 ESM-1510 °C Temperature Controller...

  • Page 13: View Of The Device Label

    3.3 View of the Device Label Device Label for J Type ( 0 ; 800 ) scaled, Thermocouple input , 230V Supply Voltage Input and Relay Output CAT II P/N : ESM-1510 5.05.0.1/00.00/2.0.0.0 P/N : ESM-1510 5.05.0.1/00.00/2.0.0.0 J Type TC OUTPUT 230 V ±...

  • Page 14: Supply Voltage Input Connection Of The Device

    3.4 Supply Voltage Input Connection of the Device Connection of Supply Voltage Input Note-1 External Fuse (1 A T) Power Supply Switch Supply Voltage 230 V (± 15%) 50/60 Hz or 115 V (± 15%) 50/60 Hz or 24 V (±...

  • Page 15: Temperature Sensor Input Connection

    3.5 Temperature Sensor Input Connection 3.5.1 TC (Thermocouple) Connection Connect the wires with the polarity as shown in the figure left. Always use compensation wire corresponding to the thermocouple used. If present, the shield must be connected to a proper ground. Input resistance is greater than 10M 3.5.2 PTC and NTC Connection WHITE...

  • Page 16: 100 And Pt-1000 Connection

    3.5.3 PT-100 and PT-1000 Connection PT-1000 PT-100 Input resistance is greater than 10M . 3.6 Galvanic Isolation Test Values of ESM-1510 Temperature Controller 2000 V ( For ESM-1510.5..) 500 V ( For ESM-1510.3..) Supply Voltage Ground Input 2000 V 2000 V Output-1 Relay Output...

  • Page 17: Output Connections

    3.7 Output Connections 3.7.1 Relay Output Connection Device T Fuse Load Fuses must be selected according to the application. 3.7.2 SSR Driver Output Connection Device Last Control Element (SSR) Max. 15 V Max. 28mA Fuse Load Fuses must be selected according to the application.

  • Page 18: Front Panel Definition And Accessing To The Menus

    4. Front Panel Definition and Accessing to the Menus Displays Temperature ESM-1510 Led indication of SET value Value,Temperature Set Value and Parameters changing mode °C Led indication of Output Led indication of is active (If blinks, Compressor Temperature Controller Programming Mode is active protection time is active) It is used to enter to Note-1...

  • Page 19: Changing And Saving Set Value

    4.2 Changing and Saving Set Value SET Value Screen Operation Screen °C °C °C When SET button is pressed, SV LED lights on and SET value is shown on the displays. Change the SET value with increment and decrement buttons. SET Value Screen Operation Screen °C...

  • Page 20: Program Parameters

    4.3 Program Parameters Hysteresis Parameter for Output ( Default = 1 ) 1 to 100 °C for TC Type Devices, 1 to 100 °C for PT-100 (-50°C , 400°C) and PT-1000 (-50°C , 400°C), 0.1 to 10.0 °C for PT-100 (-19.9°C, 99.9°C) and PT-1000 (-19.9°C, 99.9°C), 1 to 20 °C for PTC (-50°C, 150°C) and NTC (-50°C, 100°C), 0.1 to 10.0 °C for PTC (-19.9°C, 99.9°C) and NTC (-19.9°C, 99.9°C) Minimum Set Value Parameter ( Default =Minimum value of device scale )

  • Page 21: Working Graphics Of Esm-1510 Temperature Controller

    4.4 Working Graphics of ESM-1510 Temperature Controller 1-If Operating Type Parameter Value = 1 (Cooling), Switch On Delay After Power On Parameter Value Compressor Stop/Start Time Delay Parameter Value 1 and Compressor Start/Start Time Delay Parameter Value Power Time °C Time Output Time...

  • Page 22: Easy Access Diagram Of Programming Mode Parameters

    4.5 Easy Access Diagram Of Programming Mode Parameters 1-If Operating Type Parameter Value = 1 (Cooling), Programming Mode Password Entering Operation Screen Entering Screen Screen °C °C °C 5 secs Enter Password with increment and decrement buttons Minimum Set Value Password Entering Hysteresis Parameter Parameter...
  • Page 23 Compressor is inactive during this Compressor is active during this Probe Defect Parameter time period in case of probe defect time period in case of probe defect °C °C °C Programming Mode Hysteresis Parameter Accessing Password °C °C If no operation is performed in Programming mode for 20 seconds, device turns to operation screen automatically...
  • Page 24 2-If Operating Type Parameter Value = 0 (Heating), Programlama Modu Ana Çalýþma Ekraný Þifre Giriþ Ekraný Giriþ Ekraný °C °C °C 5 sn Enter Password with increment and decrement buttons Set Deðeri Minimum Histeresiz Þifre Giriþ Ekraný °C °C °C SET/ONAY Butonu ile þifrenizi...

  • Page 25: Entering To The Programming Mode, Changing And Saving Parameters

    4.6 Entering To The Programming Mode, Changing and Saving Parameters Programming Mode Entering Screen Operation Screen °C °C Press increment button for accessing to the password entering 5 secs screen. When SET button is pressed for 5 seconds, “P” led starts to blink. If programming mode entering password is different from 0, programming mode entering screen...
  • Page 26 Hysteresis Parameter Hysteresis Parameter Value °C °C Press Set button for saving the parameter value Press Set button for accessing to the next parameter Minimum Set Value Minimum Set Value Parameter Parameter is accessed by pressing increment button. If °C °C set button is pressed, next parameter is...

  • Page 27: Failure Messages In Esm-1510 Temperature Controller

    5. Failure Messages in ESM-1510 Temperature Controller ESM-1510 Probe defect in analogue inputs. Sensor connection is wrong or there is no sensor connection. °C Temperature Controller 6. Specifications Device Type : Temperature Controller Housing&Mounting : 86mm x 35mm x 59mm plastic housing for Rail Mounting. Protection Class : IP20.
  • Page 28 Emko Elektronik Sanayi ve Ticaret A.Þ. Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA/TURKEY Phone : +90 224 261 1900 Fax : +90 224 261 1912 Thank you very much for your preference to use Emko Elektronik Products. Your Technology Partner www.emkoelektronik.com.tr...
