EMKO ESM-3710 Instruction Manual

77 x 35 din size digital, on / off temperature controller
Hide thumbs
Table of Contents

Advertisement

Quick Links

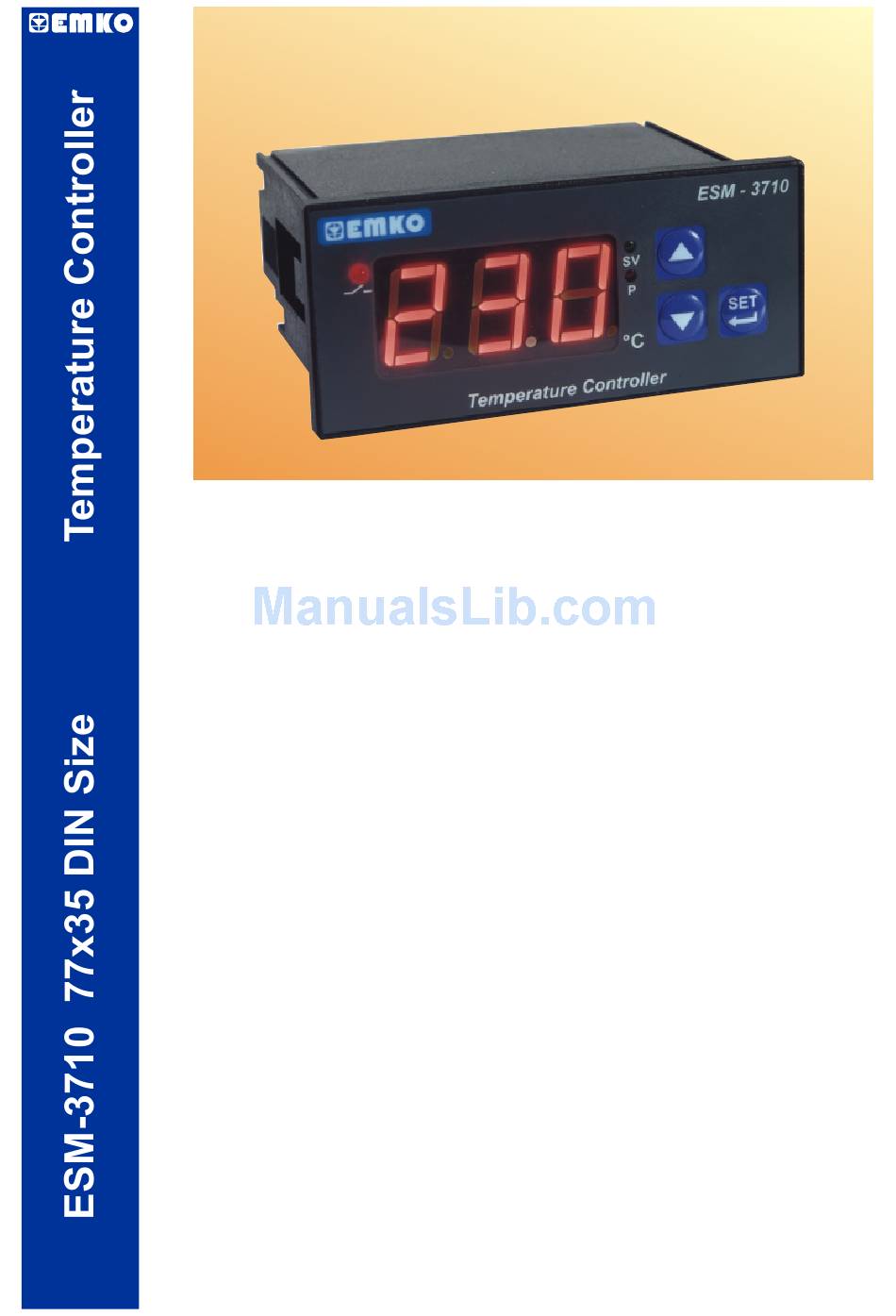

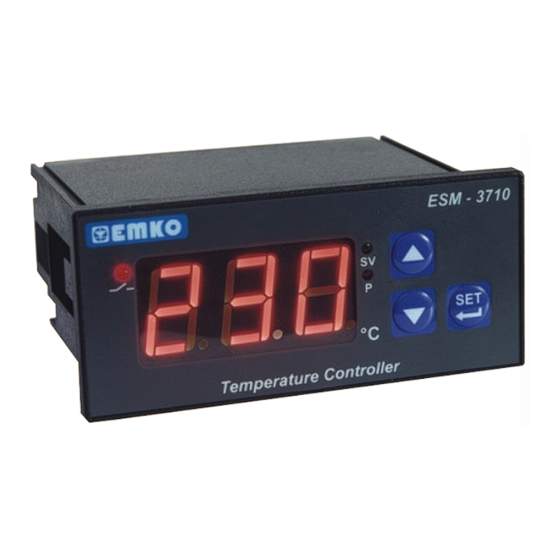

ESM-3710 77 x 35 DIN Size
Digital, ON / OFF Temperature Controller
- 3 Digits Display
- NTC Input or,
PTC Input or,
J type thermocouple Input or,
K type thermocouple Input or,
2-Wire PT 100 Input or,
2-Wire PT 1000 Input (It must be determined in order)
- ON/OFF temperature control
- Selectable heating or cooling function
- Selection of operation with hysteresis
- Adjustable temperature offset
- Set value low limit and set value high limit boundaries
- Relay or SSR driver output
- Operation selection of compressor operates continuously, stops
or operates periodically in case of probe defect
- Compressor protection delays
- Password protection for programming mode
Instruction Manual. ENG ESM-3710 02 V08 07/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESM-3710 and is the answer not in the manual?

Questions and answers

иброхим
April 29, 2025

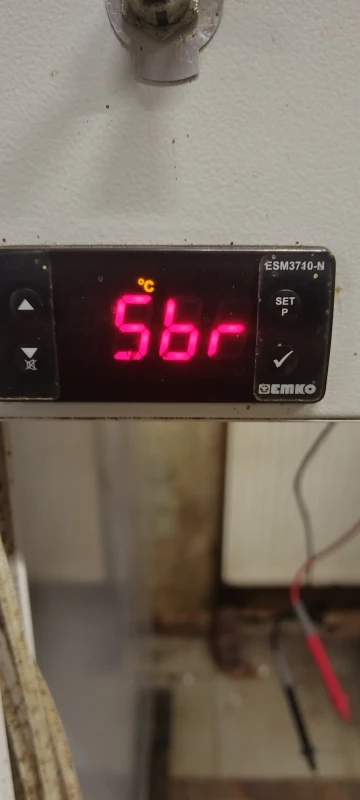

выдает ошибку Sbr
