EMKO ESM-4420 Manual

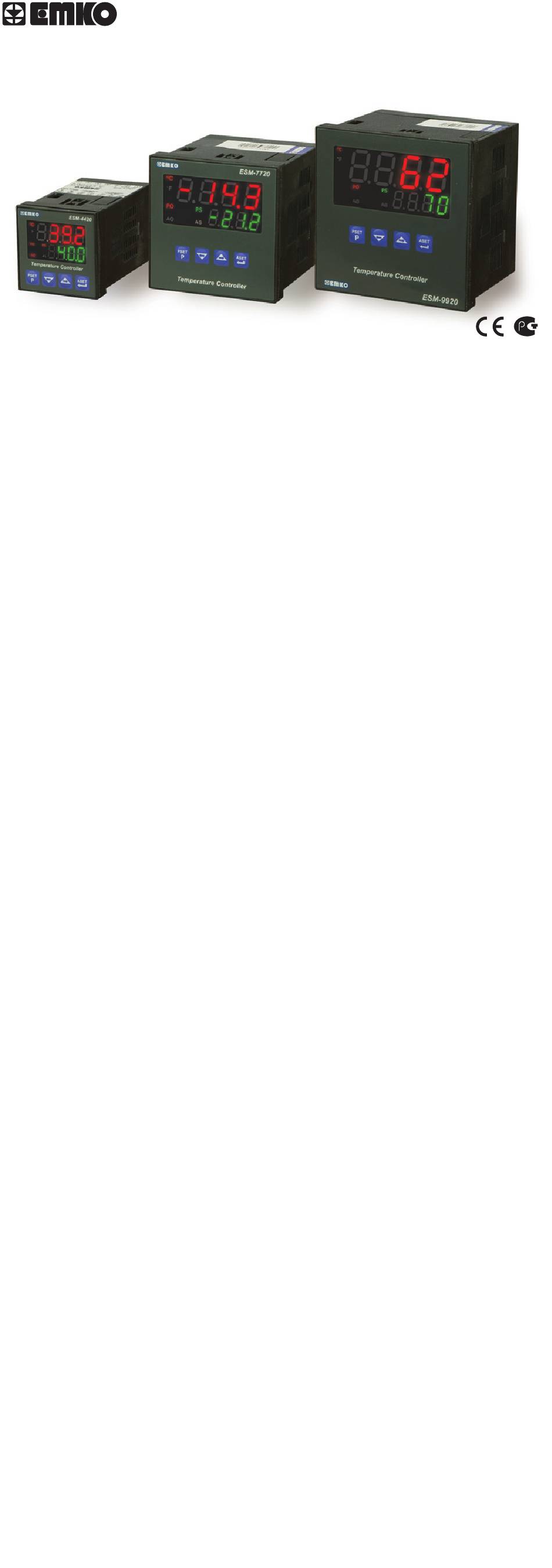

PID TEMPERATURE CONTROL UNITS
ESM-4420 , ESM-7720 , ESM-9920
PID Temperature Control Units
- 4 digit process (PV) and 4 digit set (SV) display
- Process input (TC, RTD)
- Programmable ON/OFF, P, PI, PD and PID
control forms
- Adaptation of PID Coefficients to the system with
Self-Tune operation (Step Response Tuning)
- Programmable Heating or Cooling Functions for
Control Output
- Selectable Alarm Functions for Alarm Output
ESM series temperature controllers are designed for measuring and
controlling a process value. They can be used in many applications
with their TC and RTD temperature measurement input, multi-function
control outputs, selectable alarm functions.
They are mainly used in glass, plastic, petro-chemistry, textile,
automotive and machine production industries.
advanced controlling is performed with selectable
PID and Self Tune PID functions.
SPECIFICATIONS
Process Input:
Thermocouple (TC): J , K , R , S ve T (IEC584.1)(ITS90)
Thermoresistance (RTD): PT-100 (IEC751)(ITS90)
Measurement Range :
type and scale.
Accuracy : ± 0.25% of scale for thermocouple and
thermoresistance
Cold Junction Compensation :
Line Compensation:
Sensor Break Protection:
Sampling Cycle :
Input Filter: 1.0 second.
Control Form:
programmed by the user.)
OUTPUT
Process Output :
Driver Output (Maximum 20mA @12V
Alarm Output :
SUPPLY VOLTAGE
V
230V ( ±15% ) 50/60 Hz - 3VA
V
115V ( ±15% ) 50/60 Hz - 3VA
V
24V ( ±15% ) 50/60 Hz - 3VA
(It must be determined in order)
DISPLAY
Process Display :
ESM-4420 : 10.1 mm Red 4 digit LED Display
ESM-7720 : 13.2 mm Red 4 digit LED Display
ESM-9920 : 19 mm Red 4 digit LED Display
Set Value Display :
ESM-4420 : 8 mm Green 4 digits LED Display
ESM-7720 : 9.1 mm Green 4 digits LED Display
ESM-9920 : 10.8 mm Green 4 digits LED Display
Leds : PS (Process Set Value), PO (Process Output Status Led) , AS
(Alarm Set Value), AO (Alarm Output Status Led) , °C , °F Leds
ESM-XX20
TC, RTD
Please refer to Table-1 for selection of input
Maximum 10 Ohm
Upscale
3 samples per second
ON/OFF, P, PI, PD or PID (Control form can be
Relay (5A@250V
Relay(5A@250V
Automatically ±0.1°C/1°C
V
at resistive load) or SSR
Z
)
V
at resistive load)
Accurate and
ON-OFF, P, PI, PD,
