π H-3531
KIHLBERG PNEUMATIC
PLIER STAPLER
lOAdINg ThE mAgAzINE
The correct type of staples for the tool is marked on the
righthand side of the magazine. Load the magazine as
follows:

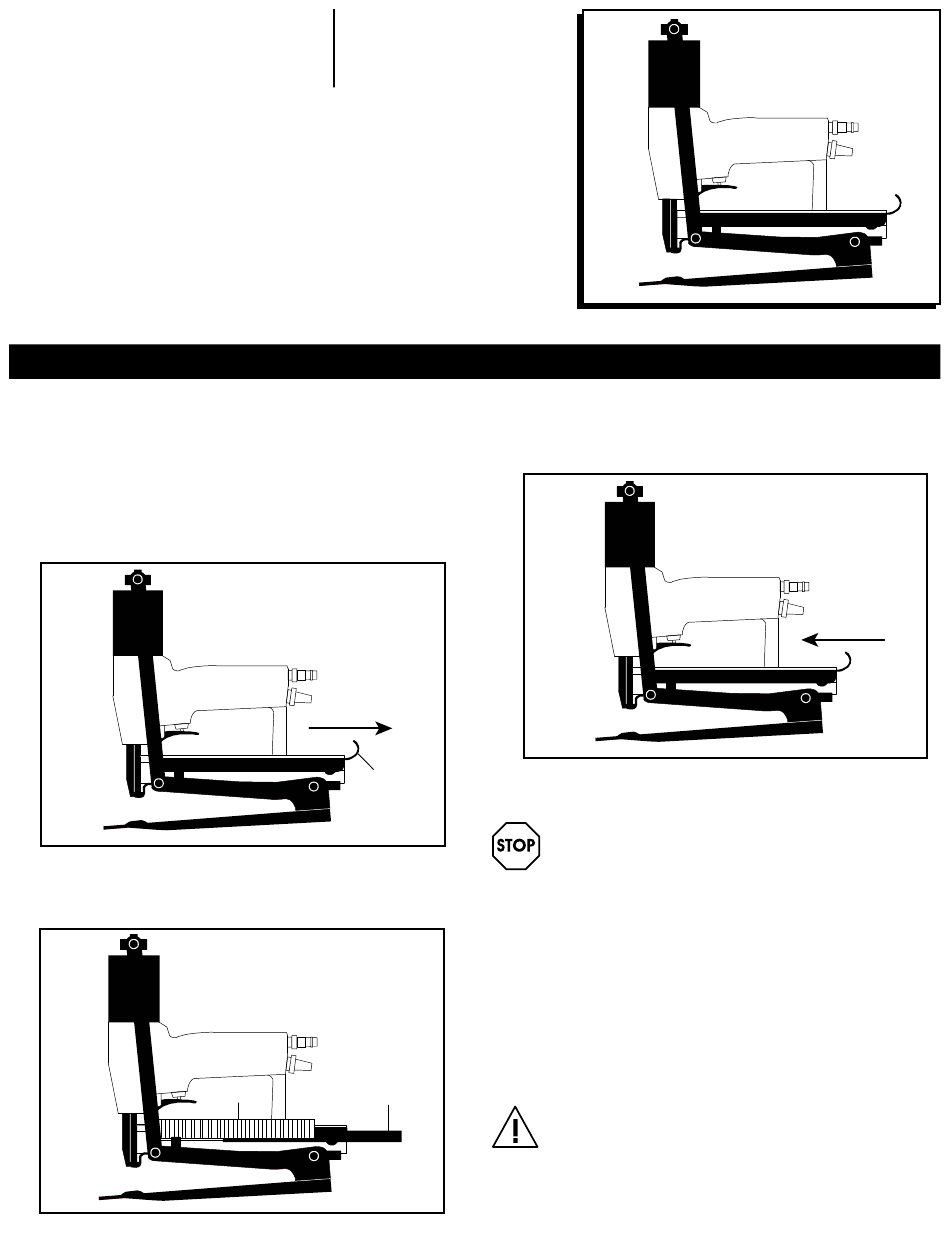

1. Pull the magazine lid (A) all the way out. (See Figure 1)
2. Place the staple strip (B) into the staple rail (C) from
the lefthand side. (See Figure 2)
PAGE 1 OF 3
1-800-295-5510
uline.com

OPERATION

Figure 1
A
Figure 2
B C
3. Push the lid all the way forward until it clicks into
place. (See Figure 3)

USINg ThE STAPlER

WARNINg! Place the stapler on a stable work
surface. do not drive staples into hard or brittle
materials. do not drive staples at too steep
an angle or too close to the edge of the work.
doing so may cause injury. Be sure that the
stapler is not pointed at yourself or anyone else
when connecting it to the compressed air line.
To avoid damage, never fire the stapler when it
is empty.
1. Adjust the air pressure to the lowest setting to drive the
staples to the desired depth. Start at approximately
5.5 bar and raise by 0.5 bar increments until the
correct operating pressure is found.
CAUTION! Never exceed 7 bar air pressure.
Figure 3
1012 IH-3531
