Installing the wind baffle

If you operate the cooling operation of air conditioner in the condition where ambient temperature is lower than 23 °F
DB(Dry bulb), or the outdoor unit might be faced with strong wind directly, the wind baffle should be installed to prevent
the outdoor unit fan from operating in reverse way.
※ Wind baffle is not supplied with the product.
Make holes on both sides and attach the
wind baffle using screws.
CAUTION
• When attaching the wind baffle using screws, be careful that the screws do not damage the partition and the heat
exchanger.
NOTE
• Install outdoor units with the back surface facing wall side to eliminate the effects of external wind.
28
English
DB68-11579A-00_IM_RAC oudoor_AA_EN_.indd 28 DB68-11579A-00_IM_RAC oudoor_AA_EN_.indd 28

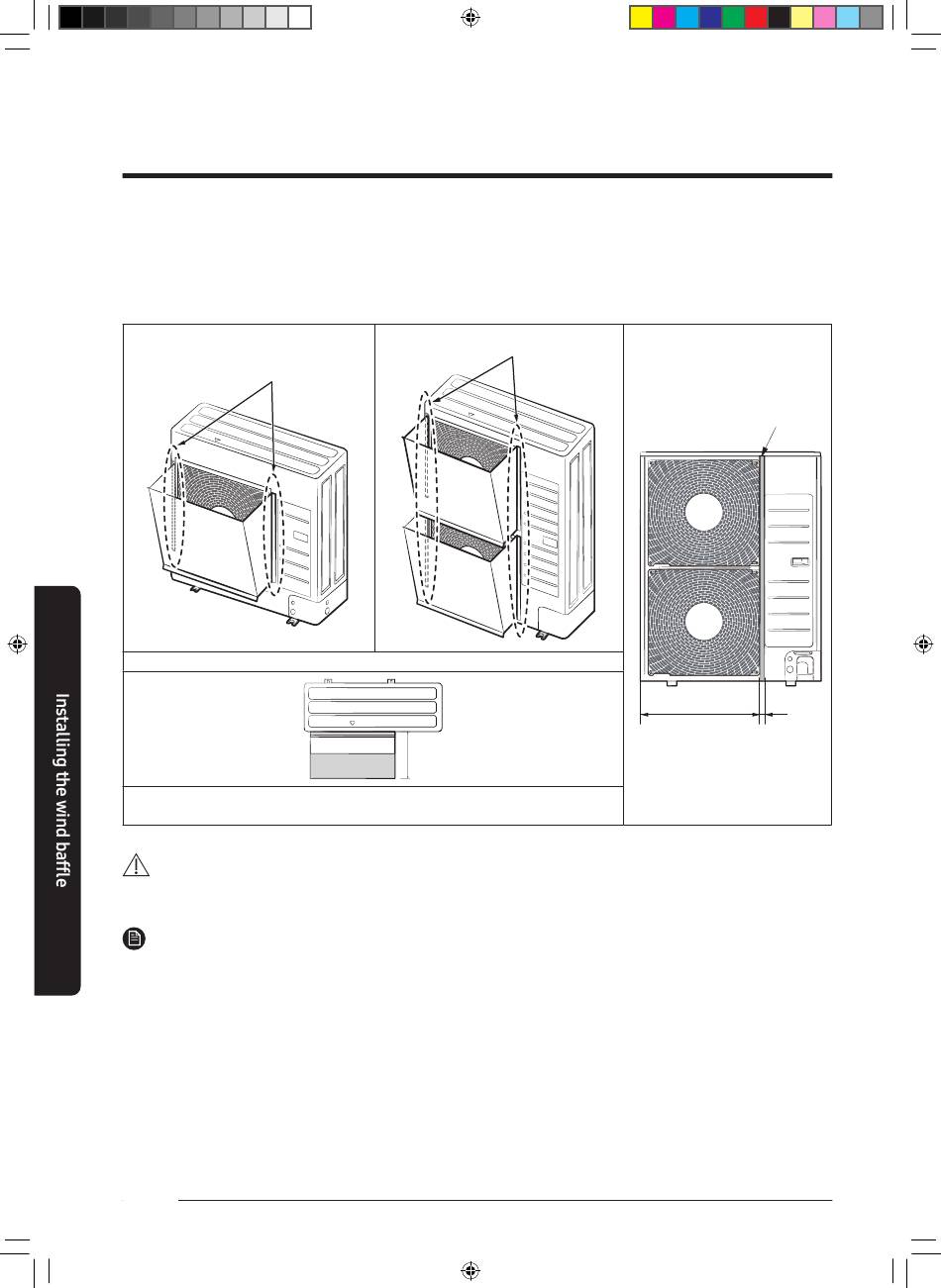

Installing the wind baffle
Make holes on both sides and attach the
wind baffle using screws.
<Front View>
"A"
<Top Down View>
"A" – Should be 7 7/8 inch or longer
Partition
24.6 inch (624.9mm) 0.6 inch (15.3mm)
