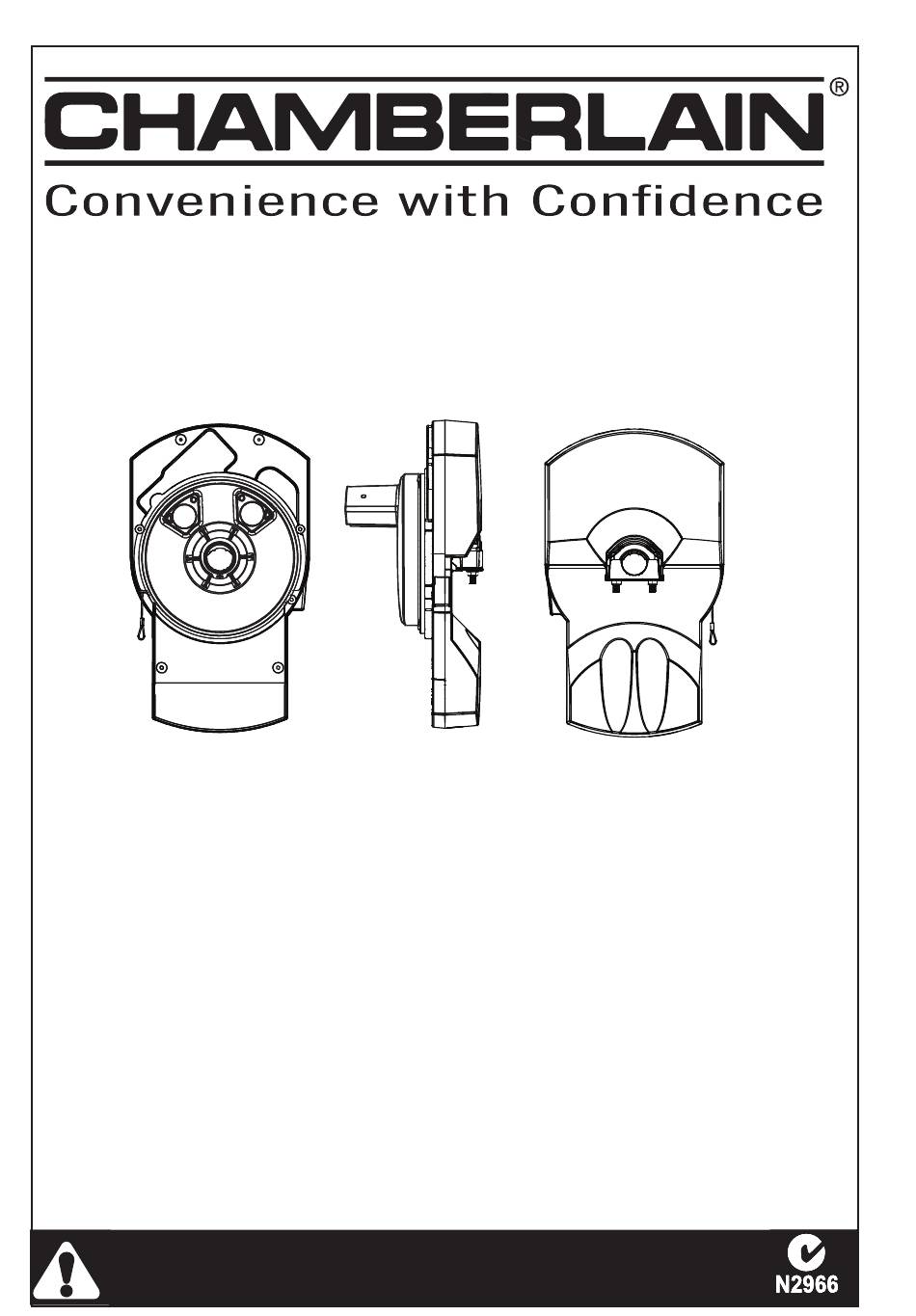

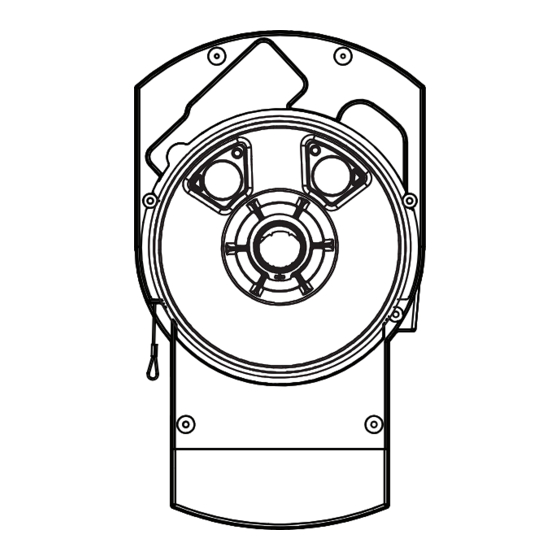

- Page 1 MLR500/MLR750 Rolling Garage Door Opener Installation and Operating Instructions Owners Copy: Please keep these instructions for future reference This manual contains IMPORTANT SAFETY information DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THOROUGHLY...
-
Page 2: Table Of Contents
START BY READING THESE IMPORTANT SAFETY INSTRUCTIONS WARNING • Failure to comply with the following instructions may result in serious personal injury or property damage. • Read and follow all instructions carefully. • The garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the instructions in this manual. -
Page 3: Carton Inventory
8. Door stand or similar device to safely support door (not shown) DOOR REQUIREMENTS The maximum allowable door height is 3.5m with a maximum curtain area of 8m² (MLR500) or 12.5m (MLR750) (door height in metres multiplied by the width in metres). The door must be spring balanced. - Page 4 TESTING THE DOOR Complete the following test to ensure your door is well balanced, and not sticking or binding: • Disable all locks and remove any ropes connected to the garage door. • Lift the door to about halfway and then release it. The door should remain suspended entirely by its spring.
- Page 5 PREPARING THE OPENER Set opener position (left or right hand) For left hand side installations For right hand side installations the wire jumper should be removed. the wire jumper should be in place (factory installed). Extension pole Attaching the extension poles (if required) •...
- Page 6 INSTALLATION STEPS FOR RIGHT HAND INSTALLATIONS Ensure that the opener position jumper (wire connector) is • installed (refer Section 7). • Place the opener in manual release mode (refer Section 11). • Open the roller door fully. For safety, tie a rope around the door (as shown).
- Page 7 ATTACH THE RELEASE HANDLE AND CORD • Thread one end of the rope through the hole in the top of the red handle so “NOTICE” reads right side up as Release cord shown. • Secure with an overhand knot at least 25mm from the end of the rope to prevent slipping.
-
Page 8: Connect Electric Power
Make sure the door is clear of obstruction. Ensure your hands are away from www.chamberlainanz.com any moving parts before activating the door. MLR500 PREPARATION: • Position the door about half way and engage the opener (section 11). • Remove the lens cover from the opener (fig 1). - Page 9 SETTING THE FORCE The force, as measured on the closing edge of the door, should not exceed 400N (40kg). If the closing force is measured to more than 400N, The Protector System (IR Beams) must be installed (refer section 16). The force setting regulates the amount of power required to open and close the door.
-
Page 10: Install The Protector System (Ir Beams)
INSTALL THE PROTECTOR SYSTEM™ (IR BEAMS) SAFETY FIRST! Whilst Chamberlain have engineered safety features into your garage door opener, we urge you to consider fitting IR Beams to your new garage door opener. In many countries these devices are compulsory to assist in preventing serious injury or property damage. -
Page 11: Auto-Close
SETTING AUTO CLOSE (OPTIONAL) NOTE: The Protector System (IR Beams) MUST be installed to enable this feature. The auto close feature will automatically close the garage door after the preset time. The time can be adjusted up to 180 seconds using the trim pot located on the control board. Auto close can be disabled by adjusting the trim pot to the minimum setting. - Page 12 KEYLESS DEVICE PROGRAMMING Learn button programming (OPTIONAL ACCESSORIES ) Activate the opener only when the door is Press the purple Limits in full view, free of obstruction and (learn) button, orange LED will light properly adjusted. No one should enter or leave garage whilst the door is in motion.
-
Page 13: Special Features
SPECIAL FEATURES 1.Multifunction control panel Connect white/red wire to the red “wired wall control” quick connect terminal and the white wire to the white “wired wall control” quick connect terminal. 2.The Protector System™ (IR Beams) Connect both white wires to the white “safety beam” quick connect terminal and both white/black wires to the grey “safety beam”... -
Page 14: Troubleshooting
TROUBLESHOOTING • Clear any ice or snow from the garage floor area where the door closes. 1.The opener doesn't operate from either the • Repeat the limit and force setting in section 12 & 13. GREEN start button or the transmitters: Repeat safety reverse test after adjustments (refer •... -
Page 15: Operation Of Your Opener
Max. Door Mass 80kg (spring balanced) Standby Power: 3 watts (nominal) Drive: DC gearmotor permanent lubrication Max. Drum Rotations: Memory Registers: Operating Frequency: 433.92MHz SPECIAL NOTE: Chamberlain strongly recommends that the Protector System (IR Beams) be installed on all garage door openers. -
Page 16: Warranty
Unit. workmanship for a period of 1 year for MLR500 and 2 years for MLR750 from the date of first purchase from Under Division 2 Part V of the Trade Practices Act, 1974,...
