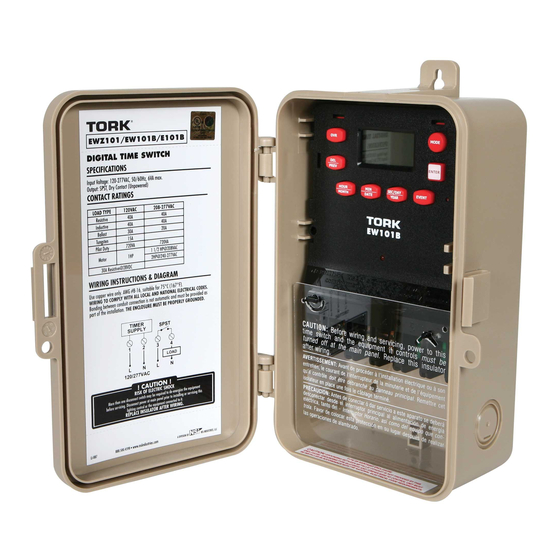

Tork EW101B Programming Instructions

PROGRAMMING INSTRUCTIONS
EW120B
EW101B
EW201B
EW103B
E , EW, E-PB SERIES TIMER FACE/BUTTONS
MODE
OVR
DEL ENTER
PREV
HOUR MIN SEC/DAY
EVENT
MONTH DATE
YEAR
RESET BUTTON
ONE YEAR LIMITED WARRANTY: If this product
fails because of a manufacturing defect within
one year after purchase, we will, at our option,
either repair or replace it at no charge. Our
warranty does not cover damage caused by
accident, abuse or misuse. We assume no
further liability with respect to the sale or use
of this product. THIS WARRANTY IS IN LIEU
OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING THE WARRANTY OF
MERCHANTABILITY. We make no warranty with
respect to the fitness of any goods for the users
particular application. This warranty gives you
specific legal rights, and you also may have
other rights which vary from state to state.
It is our intent to provide accurate and current
specification information. However, in the
interest of product improvement, TORK may
alter the specifications or constructional details
without prior notice.
FOR TECHNICAL SUPPORT: SOUTIEN TECHNIQUE : PARA COMUNICARSE CON EL SERVICIO TÉCNICO: techsupport@nsiindustries.com 888.500.4598
When powering up the unit for the first time, allow 1-2 minutes to charge
the supercap. The unit is ready when "12:00 AM" flashing is displayed on
screen. Press reset button after 2 minutes if screen is blank.

1.0 PRESS MODE TO GO TO THE CLK MODE.

2.0 TO SET CLOCK

AM
HOUR MIN
ENTER
CLK

3.0 TO SET DATE

SA
:
MONTH DATE YEAR
ENTER
DATE

4.0 AUTOMATIC DAYLIGHT SAVING TIME ADJUSTMENT

ON
To accept
MODE
OFF
To remove
DELETE ENTER

5.0 SETTING AN ON TIME

DAY HOUR MIN EVENT
FOR EW201B CH1/CH2 ENTER

5.1 SETTING AN OFF TIME

HOUR
DAY MIN
FOR EW201B CH1/CH2 ENTER

5.2 NEXT SCHEDULE

Repeat steps 5.0 & 5.1 for additional ON/OFF pairs OR MODE

6.0 AUTO (AUTOMATIC) MODE

NOTE: AUTO mode will follow the programmed schedule. OVR sets ON/OFF
until the next event.

7.0 MAN (MANUAL) MODE

MODE
NOTE: MAN mode will bypass programmed schedule. OVR set ON/OFF until
next OVERRIDE push.
NOTE: Press RESET with an insulated tool to clear time and date. To clear all,
press ENTER, press EVENT, then press ENTER again.
LI-882(C)
