- Page 1 ® 6 -TON, ELECTRIC WOOD SPLITTER SAFETY & OPERATING INSTRUCTIONS READ AND UNDERSTAND THIS MANUAL AND ALL INSTRUCTIONS BEFORE OPERATING THIS WOOD SPLITTER.
- Page 2 And congratulations on your purchase of a new DR 6 -TON ELECTRIC WOOD SPLITTER! We have done our utmost to ensure that your DR 6 -TON ELECTRIC WOOD SPLITTER will be one of the most trouble-free and satisfying pieces of equipment you have ever owned. Please let us know of any questions you may have.
-
Page 3: Table Of Contents
Hydraulic Safety ... 7 Additional Information and Potential Changes... 8 CHAPTER 3... 9 SETTING UP YOUR DR 6 -TON ELECTRIC WOOD SPLITTER ... 9 DR 6 -TON ELECTRIC WOOD SPLITTER Controls and Features ... 10 Unpacking the Wood Splitter ... 11 CHAPTER 4... - Page 4 ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 5: Chapter 1
Splitter. This information may be helpful to you. NOTE: If you are ever unsure about an action you are about to take, don’t do it, contact Country Home Products’ toll-free support at 1-800-DR-OWNER (376-9637) for help or information. COULD RESULT... - Page 6 ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 7: Chapter 2
Shown below are copies of all the labels that appear on the equipment. Take a moment to study them and make a note of their location on your DR 6 -TON ELECTRIC WOOD SPLITTER as you assemble and before you operate the machine. -
Page 8: Protecting Yourself And Those Around You
WOOD TO PROTECT YOUR EYES FROM POSSIBLE THROWN BITS OF WOOD. • WEAR SHOES WITH NON-SLIP TREADS WHEN USING YOUR DR 6 -TON ELECTRIC WOOD SPLITTER. IF YOU HAVE SAFETY SHOES, WE RECOMMEND WEARING THEM. DO NOT USE THE MACHINE WHILE BAREFOOT OR WEARING OPEN SANDALS. -
Page 9: Safety For Children
STANDARD PARTS ON THE DR 6 -TON ELECTRIC WOOD SPLITTER. MODIFICATIONS TO YOUR MACHINE COULD CAUSE PERSONAL INJURIES AND WILL VOID YOUR WARRANTY. • WHILE USING THE DR 6 -TON ELECTRIC WOOD SPLITTER, DON'T HURRY OR TAKE THINGS FOR GRANTED. •... -
Page 10: Safety With Electric-Powered Machines
SUPPLYING FULL POWER AND MAY CAUSE DAMAGE TO THE MOTOR. • ALWAYS KEEP THE POWER CORD AND/OR EXTENSION CORD AWAY FROM EXCESSIVE HEAT, OIL AND SHARP OBJECTS. Tip: Reference page 23 for Troubleshooting Tips. ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER... -
Page 11: Hydraulic Safety
Hydraulic Safety ESCAPING PRESSURIZED FLUID FROM HYDRAULIC SYSTEM LEAKS CAN HAVE ENOUGH FORCE TO PENETRATE SKIN AND CAUSE SERIOUS INJURY OR DEATH. HYDRAULIC FLUID CAN REMAIN PRESSURIZED WHILE THE MOTOR IS OFF DUE TO THE RETURN SPRING FORCE ON THE RAM. ALWAYS FOLLOW THESE PRECAUTIONS: •... -
Page 12: Additional Information And Potential Changes
THIS WOOD SPLITTER IN A SAFE MANNER. CALL 1(800) DR-OWNER (376-9637) FOR ASSISTANCE. Additional Information and Potential Changes Country Home Products, Inc. reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. -
Page 13: Chapter 3
CHAPTER 3 SETTING UP YOUR DR 6 -TON ELECTRIC WOOD SPLITTER This chapter outlines a few simple steps you will need to follow to set up your new machine before you use it. It may be helpful to familiarize yourself with the controls and features on your new wood splitter by reviewing the picture in the next section before beginning the steps outlined in this chapter. -
Page 14: Dr 6 -Ton Electric Wood Splitter Controls And Features

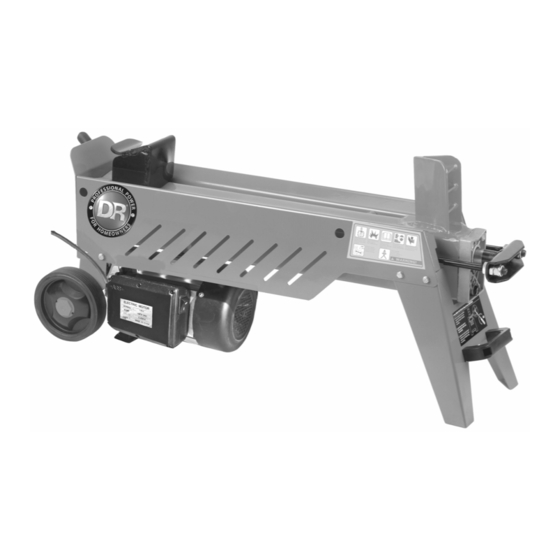

DR 6 -TON ELECTRIC WOOD SPLITTER Controls and Features NOTE: The model shown in Figure 1 may look slightly different from your machine. Operating Handle Assembly Power Cord Oil Pump Assembly Wheels and Frame Assembly ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER... -
Page 15: Unpacking The Wood Splitter
Unpacking the Wood Splitter NOTE: Unpacking the DR 6 -TON ELECTRIC WOOD SPLITTER is a two-person job. We recommend you have an extra set of hands available before you begin. Tool and Parts Supplied: • 10mm wrench • Operating Handle w/Knob •... - Page 16 ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 17: Chapter 4
OPERATING YOUR DR 6 -TON ELECTRIC WOOD SPLITTER This chapter covers the procedures for operating your new DR 6 -TON ELECTRIC WOOD SPLITTER and discusses basic operation features. You may find it helpful to review the Controls and Features on page 10. - Page 18 Hydraulic Fluid Cylinder End Cover. Tip: In cold weather, cycle the Ram several times to warm-up the hydraulic fluid. This will provide full power from your DR 6 -TON ELECTRIC WOOD SPLITTER. ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 19: Splitting Safety
Splitting Safety The DR 6 -TON ELECTRIC WOOD SPLITTER has a Ram with 6 tons of force. • ALWAYS BE SURE TO STAND INSIDE THE OPERATOR ZONE TO RUN THE WOOD SPLITTER (FIGURE 5). THIS IS THE AREA DIRECTLY BEHIND YOUR DR 6 -TON ELECTRIC WOOD SPLITTER. NEVER OPERATE THE WOOD SPLITTER FROM ANYPLACE ELSE. -
Page 20: Operating The Dr 6 -Ton Electric Wood Splitter
2. When safe to do so, push down on the Operating Handle. The Ram will now compress the log against the wedge, splitting the log. NOTE: The DR 6 -TON ELECTRIC WOOD SPLITTER is designed to run at two different speeds. When the Operating Handle is fully depressed the Ram will run at a slower speed but have more power. -
Page 21: How To Free A Jammed Log From The Wedge
How to Free a Jammed Log from the Wedge • NEVER PLACE YOUR HANDS NEAR THE LOG WHEN ATTEMPTING TO FREE IT FROM THE WEDGE. • NEVER ASK FOR THE ASSISTANCE OF ANOTHER PERSON WHEN FREEING A JAMMED LOG. • NEVER TRY TO EXTRACT THE JAMMED LOG BY HITTING IT WITH A TOOL;... - Page 22 ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 23: Chapter 5
CHAPTER 5 MAINTAINING THE DR 6 -TON ELECTRIC WOOD SPLITTER This chapter covers regular maintenance procedures that will ensure the best performance and long life of your wood splitter. WHEN PERFORMING ANY MAINTENANCE, YOU MUST FIRST UNPLUG THE WOOD SPLITTER FROM THE POWER SOURCE AND MAKE SURE THE HYDRAULIC SYSTEM IS DEPRESSURIZED AND THE FLUID HAS COOLED. -
Page 24: Adjusting The Hydraulic Fluid Level
Tool Needed: • Fine-Toothed Flat File Before each splitting session, check the sharpness of the wedge. As required, remove any burrs or flat spots on the wedge blade using a fine-toothed flat file. ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER... -
Page 25: Electrical Connections
Apply a thin coating of oil or #2 Lithium Grease to the Wedge Cutting Edge to prevent rust. • Store the DR 6 -TON ELECTRIC WOOD SPLITTER in a dry area to prevent moisture from damaging the electrical components of the machine. - Page 26 ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 27: Chapter 6
TROUBLESHOOTING Most problems are easy to fix. Consult the Troubleshooting Table below for common problems and their solutions. If you continue to experience problems call Country Home Products, Inc. for support. Troubleshooting Table WHEN PERFORMING ANY MAINTENANCE, YOU MUST FIRST UNPLUG THE WOOD SPLITTER FROM THE POWER SOURCE AND MAKE SURE THE HYDRAULIC SYSTEM IS DEPRESSURIZED AND THE FLUID HAS COOLED. - Page 28 NOTE: Country Home Products, Inc. has provided Parts Lists and Schematic Diagrams as reference tools only. CHP makes no representation or warranty of any kind to the buyer that he/she is qualified to make any repairs to the product or that he/she is qualified to replace any parts of the product.
-
Page 29: Chapter 7
CHAPTER 7 PARTS LISTS, SCHEMATIC DIAGRAMS AND WARRANTY Parts List - DR 6 -TON ELECTRIC WOOD SPLITTER NOTE: Part numbers listed are available through Country Home Products, Inc. Ref# Part# Description 205271 Nut, Hex, M16 205281 Nut, Hex, M16 (Thin) - Page 30 206861 Warning Label, Bleed Screw 206871 Warning Label, Safety 192021 DR Power Equipment Label 192031 Speed Position Label 193521 Serial # Label 211591 Safety & Operation Manual 211621 Internal Check Valve Assembly ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 31: Schematic - Dr 6 -Ton Electric Wood Splitter
Schematic - DR 6 -TON ELECTRIC WOOD SPLITTER WDS 6.3 051122 CALL TOLL FREE 1-800-DR-OWNER... - Page 32 NOTES: ® WDS 6.3, 6 -TON ELECTRIC WOOD SPLITTER...
-
Page 33: Customer Service Hotline
Country Home Products, Inc. (home of DR for ordinary purposes for which a product of this type is used. Country Home Products, Inc. however, limits the implied warranties of merchantability and fitness in duration to a period of two (2) years in consumer use, ninety (90) days for any other use. - Page 34 Daily Checklist for the DR 6 -TON ELECTRIC WOOD SPLITTER To help maintain your DR 6 -TON ELECTRIC WOOD SPLITTER for optimum performance, we recommend you follow this checklist each time you use your machine. [ ] HARDWARE: Check all nuts and bolts to be sure that the components are secure.
