Summary of Contents for Fairland IPH15

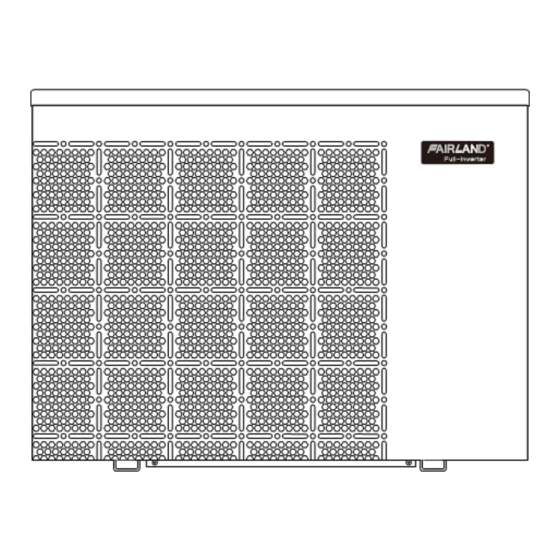

- Page 1 INSTALLATION & USER MANUAL Thank you for choosing Fairland Full-inverter heat pump...
-
Page 3: Table Of Contents
SUMMARY For users ………………………………………………………………………………. P.1-P.7 1. GENERAL INFORMATION 1.1. Contents: 1.2. Operating conditions and range: 1.3. Advantages of different modes: 1.4. Kind reminder: 2. OPERATIONS 2.1. Notice before using 2.2. Operation instructions 2.3. Daily maintenance and winterizing 3. TECHNICAL SPECIFICATION For installers and professionals …………………………………………………... -
Page 4: For Users
FOR USER 1. GENERAL INFORMATION 1.1. Contents: After unpacking, please check if you have all the following components. NOTICE: Please do not install wrong direction of the water union. STEP 1 STEP 3 STEP 2 1.2. Operating conditions and range: ITEMS RANGE Air temp... -
Page 5: Advantages Of Different Modes
FOR USER 1.3. Advantages of different modes: The heat pump has two modes: Smart and Silence. They have different advantages under different conditions. MODE RECOMMENDATION ADVANTAGES 1.4. Kind Heating capacity: 20% to 100% capacity Smart mode Intelligent optimization As standard Fast heating Silence mode Heating capacity: 20% to 80% capacity... - Page 6 FOR USER 1.4.4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be reduced or even stopped. 1.4.5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid fire. 1.4.6.
-
Page 7: Operations
FOR USER 1.4.9. Please note that following codes are not failure. CODES No water flow Anti-Freezing Reminder Out of the operating range Insufficient water flow or pump blocked Power abnormal 2. OPERATIONS 2.1. Notice before using 2.1.1. For longer service life, please ensure water pump is on before heat pump starts to work, and water pump is off after heat pump is off. - Page 8 FOR USER SYMBOL DESIGNATION FUNCTION Power On/Off ON/OFF Wi-Fi setting Unlock Press it for 3 seconds to unlock/lock screen Speed Select Smart/Silence mode Up / Down Adjust set temperature Note: ① Screen lock: a. If no operation in 30 seconds, screen will be locked. b.
-
Page 9: Daily Maintenance And Winterizing
FOR USER 1.Power On: Press for 3 seconds to light up screen, then press to power on heat pump. 2.Adjust Set Temperature: When screen is unlocked, press to display or adjust the set temperature. 3.Smart/Silence mode selection: Smart mode as default will be activated when heat pump is on, and screen shows Press to enter Silence mode, and screen shows (Suggestion: select Smart mode for initial heating.) -
Page 10: Technical Specification
FOR USER 3. TECHNICAL SPECIFICATION Model IPH15 IPH20 IPH25 IPH30 IPH35 IPH45 IPH55 IPH70 IPH70T IPH100T Advised pool 15~30 20~40 25~45 30~55 35~65 40~75 50~95 65~120 65~120 90~160 volume (m Working air temp -7~43 (℃) Performance Condition: Air 26° C, Water 26° C, Humidity 80% Heating capacity 10.0... -
Page 11: For Installers And Professionals
FOR INSTALLERS AND PROFESSIONALS 1. TRANSPORTATION 1.1. When storing or moving the heat pump, the heat pump should be at the upright position. 1.2. When moving the heat pump, do not lift the water union since the titanium heat exchanger inside the heat pump will be damaged. 2. -
Page 12: Installation Instruction
FOR INSTALLERS AND PROFESSIONALS 2.2. Installation instruction 2.2.1. Location and size The heat pump should be installed in a place with good ventilation * MINIMUM DISTANCE Filter Water processor Water switch... - Page 13 FOR INSTALLERS AND PROFESSIONALS UNIT=MM IPH15 IPH20 IPH25 IPH30 IPH35 IPH45 IPH55 IPH70 1084 IPH70T 1084 IPH100T 1154 ※ Above data is subject to modification without notice. 2.2.2. Heat pump installation. ➢ The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid;...
- Page 14 FOR INSTALLERS AND PROFESSIONALS 1. Connecting your power wire Please use cross screwdriver to take off the 2 screws at the bottom of the right side panel. Take off the lower half of the panel. Unscrew the 3 screws on the cover of the electrical box.
-
Page 15: Trial After Installation
FOR INSTALLERS AND PROFESSIONALS NOTE: Must be hard wired, no plug allowed (In Australia, IPH15~IPH30 has plug for optional). For your safe use in winter, it’s strongly recommended to equip heating priority function. For the detailed wiring diagram, please refer to Appendix 1. -
Page 16: Maintenance And Winterizing
FOR INSTALLERS AND PROFESSIONALS 2.4. Maintenance and winterizing 2.4.1 Maintenance The maintenance should be carried out once per year by qualified professional technician. ➢ Cut off power supply of the heat pump before cleaning, examination and repairing . Do not touch the electronic components until the LED indication lights on PCB turn off. -
Page 17: Failure Code
FOR INSTALLERS AND PROFESSIONALS 4. FAILURE CODE DISPLAY NOT FAILURE DESCRIPTION No water protection Power supply excesses operation range Excessive temp difference between inlet and outlet water(Insufficient water flow protection) Ambient temperature too high or too low protection Anti-freezing reminder DISPLAY FAILURE DESCRIPTION High pressure protection... -
Page 18: Appendix 1: Heating Priority Wiring Diagram (Optional)
FOR INSTALLERS AND PROFESSIONALS APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) -
Page 19: Appendix 2: Heating Priority Wiring Diagram (Optional)
FOR INSTALLERS AND PROFESSIONALS APPENDIX 2: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) -
Page 20: Appendix 3: Heating Priority Wiring Diagram (Optional)
FOR INSTALLERS AND PROFESSIONALS APPENDIX 3: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL) - Page 21 FOR INSTALLERS AND PROFESSIONALS Parallel connection with filtration clock A: Water pump timer B: Water pump wiring of Heat Pump Note: The installer should connect A parallel with B (as above picture). To start the water pump, condition A or B is connected. To stop the water pump, both A and B should be disconnected.
-
Page 22: Wi-Fi Setting
FOR INSTALLERS AND PROFESSIONALS 5. WI-FI SETTING 1) APP Download Android mobile please download from iphone please download from 2) Account registration a) Registration by Cell phone number/Email... - Page 23 FOR INSTALLERS AND PROFESSIONALS b) Cell phone number registration 3) Create family Please set family name and choose the room of device...
- Page 24 FOR INSTALLERS AND PROFESSIONALS APP Binding Please make sure your cell phone has connected the Wi-Fi Wi-Fi connection: Press for 3 seconds after screen unlock, will be flashing to enter Wi-Fi binding program. b) Click "Add device", follow indication to finish binding. display on the screen once Wi-Fi connection success.
- Page 25 FOR INSTALLERS AND PROFESSIONALS 5) Operation For heat pump with Heating function only More share devices Indicate the status of Heating Heating capacity percentage Select ℃/℉ The current swimming pool water temperature The setting temperature Timer Select Smart/ 双温 Silence Mode On/Off...
- Page 26 FOR INSTALLERS AND PROFESSIONALS 6) Share devices to your family members After binding, if your family members also want to control the device. Please let your family members register the APP first, and then the administrator can operate as below:...
- Page 27 FOR INSTALLERS AND PROFESSIONALS Then your family members can log in as below: Notice: 1. The weather forecast is just for reference. 2. APP is subject to updating without notice.
- Page 28 Thank you for choosing Fairland Full-inverter heat pump The factory reserves the final interpretation right. And keep the right to stop or change product specification and design without prior notice at any time, no need to bear the resulting obligations.
