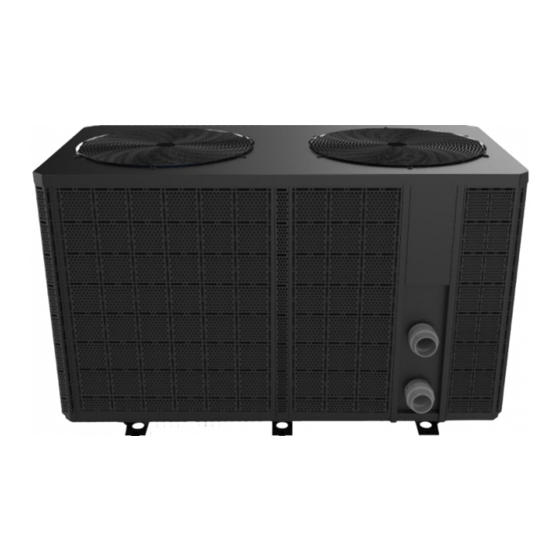

Fairland ECOFER IPHC150T Installation & User Manual

Commercial inverter pool heat pumps
Hide thumbs Also See for ECOFER IPHC150T:
Table of Contents

Advertisement

Quick Links

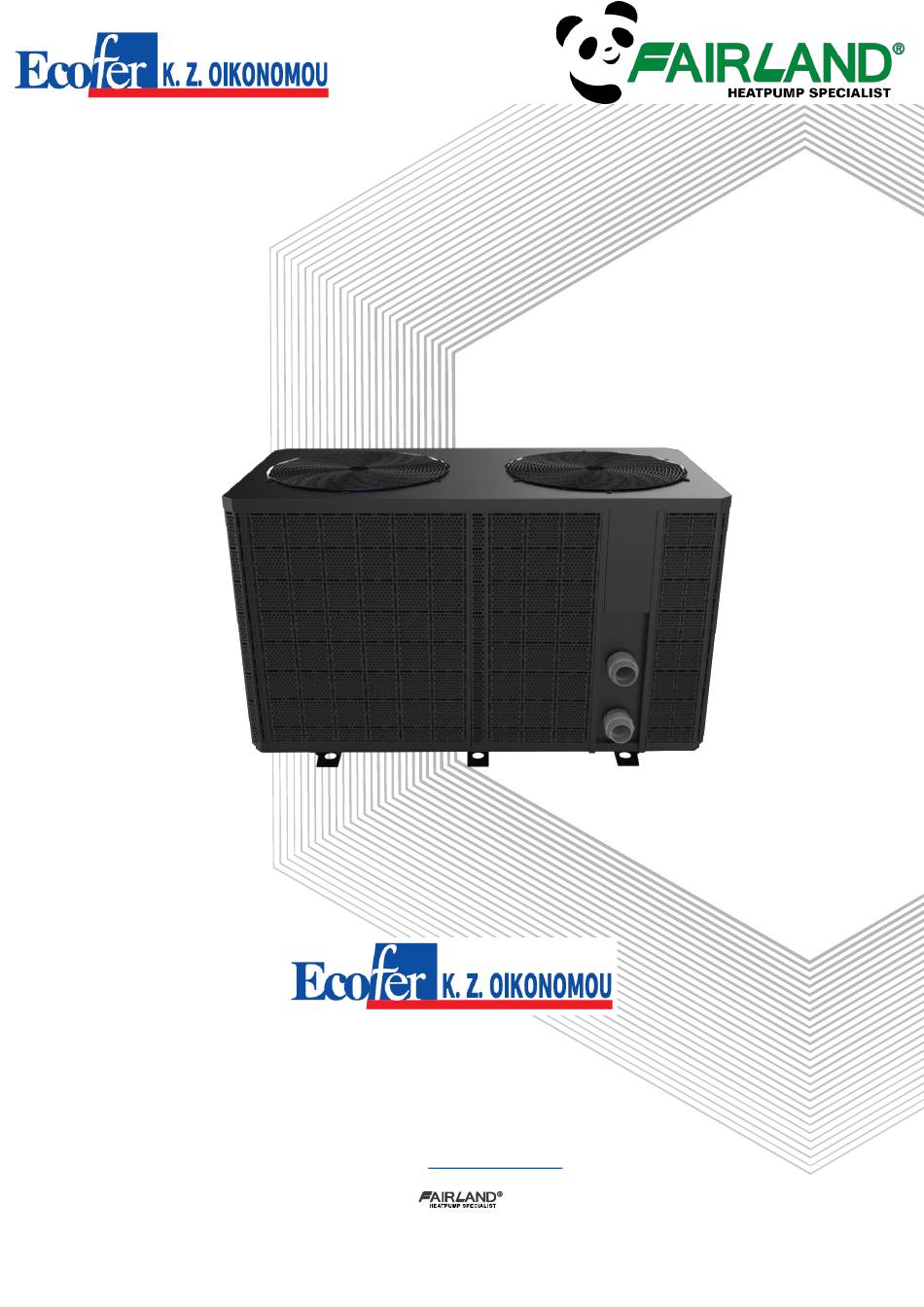

INSTALLATION & USER MANUAL
COMMERCIAL INVERTER
POOL HEAT PUMPS
Please read this user's manual carefully to ensure proper use, installation and maintenance
Ithomis Str. 6, Chalandri, GR-15231, Athens - Greece
Τel: +302106715510 / +302117007269/ +302117007270
Fax: +302106542877
Website:
www.ecofer.com.gr
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECOFER IPHC150T and is the answer not in the manual?

Questions and answers

Related Manuals for Fairland ECOFER IPHC150T

Summary of Contents for Fairland ECOFER IPHC150T

  • Page 1 INSTALLATION & USER MANUAL COMMERCIAL INVERTER POOL HEAT PUMPS Please read this user’s manual carefully to ensure proper use, installation and maintenance Ithomis Str. 6, Chalandri, GR-15231, Athens - Greece Τel: +302106715510 / +302117007269/ +302117007270 Fax: +302106542877 Website: www.ecofer.com.gr...
  • Page 2 Installation and user manual...

  • Page 3: Table Of Contents

    Installation and user manual CONTENTS 1. GENERAL INFORMATION 1.1. Contents: 1.2. Operating conditions and range: 1.3. Advantages of different modes: 2. OPERATIONS 2.1. Notice before using 2.2. Operation instructions 2.3. Daily maintenance and winterizing 3. TECHNICAL SPECIFICATION 4. TRANSPORTATION 5. INSTALLATION AND MAINTENANCE 5.1.

  • Page 4: General Information

    Installation and user manual 1. GENERAL INFORMATION 1.1. Contents: After unpacking, please check if you have all the following components. 1.2. Operating conditions and range: ITEMS RANGE Operating range Air temp -10℃～43℃ Temp. setting heating 18℃～40℃ The heat pump will have ideal performance in the operation range Air 15℃～25℃. 1.3.
  • Page 5 Installation and user manual Kind reminder: This heat pump has Power-off memory function. When the power is recovered, the heat pump will restart automatically. 1. The heat pump can only be used to heat the pool water. It can NEVER be used to heat other flammable or turbid liquid.
  • Page 6 Installation and user manual 5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid fire. 6. If any abnormal circumstances occurred, e.g.: abnormal noises, smells, smokes and leakage of electricity, switch off the main power immediately and contact your local dealer. Don’t try to repair the heat pump by yourselves.

  • Page 7: Operations

    Installation and user manual 9. Please note that following codes are not failure. CODES No water flow Anti-Freezing Reminder Out of the operating range Insufficient water flow or pump blocked Power abnormal 2. OPERATIONS 2.1. Notice before using 2.1.1. For longer service life, please ensure water pump is on before heat pump starts to work, and water pump is off after heat pump is off.

  • Page 8: Operation Instructions

    Installation and user manual 2.2. Operation instructions SYMBOL DESIGNATION FUNCTION ON/OFF Power On/Off Unlock Press it for 3 seconds to unlock/lock screen Speed Select Smart/Silence mode Up / Down Adjust set temperature Note: ① Screen lock: a. If no operation in 30 seconds, screen will be locked. b.
  • Page 9 Installation and user manual Water inlet temperature Smart/Silence Water outlet mode temperature Heating Heating capacity percentage Wi-Fi connection Water inlet Water outlet 1.Power On: Press for 3 seconds to light up screen, then press to power on heat pump. 2.Adjust Set Temperature: When screen is unlocked, press to display or adjust the set temperature.

  • Page 10: Daily Maintenance And Winterizing

    Installation and user manual 4.Defrosting a. Auto Defrosting: When heat pump is defrosting, will be flashing. After defrosting, will stop flashing. b. Compulsory Defrosting: When heat pump is heating, press together for 5 seconds to start compulsory defrosting, and will be flashing. After defrosting, will stop flashing.

  • Page 11: Technical Specification

    Installation and user manual 3. TECHNICAL SPECIFICATION Model IPHC150T IPHC300T Advised pool volume (m 130~260 260~520 Operating air temperature (℃) -10~43 Performance Condition: Air 28°C, Water 26°C, Humidity 80% Heating capacity (kW) 63,6 116,6 COP at 50% capacity 10,7 10,6 Performance Condition: Air 15°C, Water 26°C, Humidity 70% Heating capacity (kW) 40,0...

  • Page 12: Transportation

    Installation and user manual 4. TRANSPORTATION 4.1. When storing or moving the heat pump, the heat pump should be at the upright position. 4.2. When moving the heat pump, do not lift the water union since the titanium heat exchanger inside the heat pump will be damaged.

  • Page 13: Notice Before Installation

    Installation and user manual 5.1. Notice before installation： 5.1.1. The inlet and outlet water unions can’t bear the weight of soft pipes. The heat pump must be connected with hard pipes! 5.1.2. In order to guarantee the heating efficiency, the water pipe length should be ≤10m between the pool and the heat pump.
  • Page 14 Installation and user manual UNIT=MM Model IPH150T 1000 1110 1070 1000 1260 UNIT=MM Model IPH300T 1000 1630 1090 1050 2100 1280 ※ Above data is subject to modification without notice. 5.2.2. Heat pump installation. ➢ The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid;...
  • Page 15 Installation and user manual 5.2.3. Wiring & protecting devices and cable specification ➢ Connect to appropriate power supply, the voltage should comply with the rated voltage of the products. ➢ Well earth the heat pump. ➢ Wiring must be connected by a professional technician according to the circuit diagram. ➢...
  • Page 16 Installation and user manual Step 2. Power cord must be passed through below 3 holes  Connect the wire through three holes Hole1 Hole2 Hole3   Restore the internal panel Fix the internal panel by two screws   Restore the panel Fix the panel by three screws...
  • Page 17 Installation and user manual 2. Wiring diagram For power supply: 400V 50Hz Distribution Box(Customer prepare) Swimming Pool Heat Pump Wiring Board Power Cord Power Supply Fuse 400V 50Hz Breaker Earthing NOTE: Must be hard wired, no plug allowed  For your safe use in winter, it’s strongly recommended to equip heating priority function. ...

  • Page 18: Trial After Installation

    Installation and user manual 5.3. Trial after installation Please check all the wirings carefully before turning on the heat pump. 5.3.1．Inspection before use ➢ Check installation of the whole heat pump and the pipe connections according to the pipe connecting drawing;...

  • Page 19: Trouble Shooting For Common Faults

    Installation and user manual Unscrew the water union of inlet pipe Important: to let the water flow out. When the water in machine freezes in winter season, the titanium heat exchanger may be damaged. 6. TROUBLE SHOOTING FOR COMMON FAULTS FAILURE REASON SOLUTION...
  • Page 20 Installation and user manual Water inlet temp sensor failure Water outlet temp sensor failure Gas exhaust temp sensor failure Evaporator coil pipe temp sensor failure Gas return temp sensor failure Cooling coil pipe temp sensor failure Ambient temp sensor failure Cooling plate sensor failure Current sensor failure Restart memory failure...

  • Page 21: Appendix 1: Heating Priority Wiring Diagram (Optional)

    Installation and user manual APPENDIX 1: HEATING PRIORITY WIRING DIAGRAM (OPTIONAL)
  • Page 22 Installation and user manual Parallel connection with filtration clock A: Water pump timer B: Water pump wiring of Heat Pump Note: The installer should connect A parallel with B (as above picture). To start the water pump, condition A or B is connected. To stop the water pump, both A and B should be disconnected.

  • Page 23: Wifi Setting

    Installation and user manual 8. Wifi setting 1) APP Download Android mobile please download from iphone please download from 2) Account registration a) Registration by Cell phone number/Email...
  • Page 24 Installation and user manual b) Cell phone number registration 3) Create family Please set family name and choose the room of device...
  • Page 25 Installation and user manual APP Binding Please make sure your cell phone has connected the Wifi a) Wifi connection: Press for 3 seconds after screen unlock, will be flashing to enter Wifi binding program. b) Click "Add device", follow indication to finish binding. display on the screen once Wifi connection success.
  • Page 26 Installation and user manual More share devices Indicate the status of Heating Heating capacity percentage Select ℃/℉ The current swimming pool water temperature The setting temperature Timer Select Smart/ Silence Mode On/Off...
  • Page 27 Installation and user manual 6) Share devices to your family members After binding, if your family members also want to control the device. Please let your family members register the APP first, and then the administrator can operate as below:...
  • Page 28 Installation and user manual Then your family members can log in as below: Notice: 1. The weather forecast is just for reference. 5.APP is subject to updating without notice.
  • Page 29 Ithomis Str. 6, Chalandri, GR-15231 Athens - Greece Τel: +30210 6715510 / +30211 7007269/ +30211 7007270 Fax: +302106542877 Website: www.ecofer.com.gr Version: C00IW...

This manual is also suitable for:

Ecofer iphc300tEcofer iph300t
