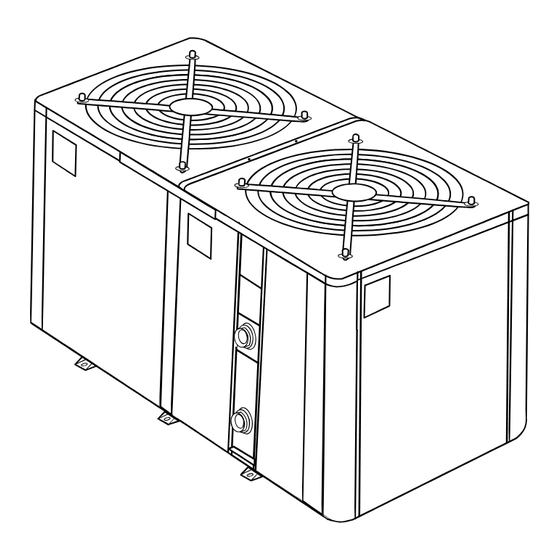

Fairland IPHC150T Installation And User Manual

Full-inverter heat pump
Hide thumbs Also See for IPHC150T:
Table of Contents

Advertisement

Quick Links

INSTALLATION AND

USER MANUAL

Thank you for choosing Fairland Full-inverter heat pump.
This manual provides you necessary information for optimal
use and maintenance, please read it carefully and keep it for
subsequent use.

Advertisement

Table of Contents
loading

Related Manuals for Fairland IPHC150T

Summary of Contents for Fairland IPHC150T

  • Page 1: User Manual

    INSTALLATION AND USER MANUAL Thank you for choosing Fairland Full-inverter heat pump. This manual provides you necessary information for optimal use and maintenance, please read it carefully and keep it for subsequent use.

  • Page 2: Table Of Contents

    SUMMARY For users ………………………………………………………………………………. P.1-P.10 1. GENERAL INFORMATION 1.1. Contents 1.2. Operating conditions and range 1.3. Advantages of different modes 1.4. Kind reminder 2. OPERATIONS 2.1. Notice before using 2.2. Operation instructions 2.3. Daily maintenance and winterizing 3. TECHNICAL SPECIFICATION For installers and professionals …………………………………………………...

  • Page 3: For Users

    FOR USER 1. GENERAL INFORMATION 1.1. Contents: After unpacking, please check if you have all the following components. 1.2. Operating conditions and range: ITEMS RANGE -7℃～43℃ Operating range Air temp 18℃～35℃ heating Temp. setting 12℃～30℃ cooling The heat pump will have ideal performance in the operation range Air 15℃～25℃.

  • Page 4: Advantages Of Different Modes

    FOR USER 1.3. Advantages of different modes: The heat pump has two modes: Smart and Silence. They have different advantages under different conditions. MODE RECOMMENDATION ADVANTAGES Heating capacity: 20% to 100% capacity As standard Intelligent optimization Fast heating Use at night Heating capacity: 20% to 80% capacity 1.4.
  • Page 5 FOR USER 1.4.3. Don’t put obstacles before the air inlet and outlet of the heat pump. 1.4.4. Don’t put anything into inlet or outlet, or the efficiency of the heat pump will be reduced or even stopped. 1.4.5. Don’t use or store combustible gas or liquid such as thinners, paint and fuel to avoid fire. 1.4.6.
  • Page 6 FOR USER 1.4.7. The main power switch should be out of the reach of Children. 1.4.8. Please cut off the power in the lightning storm weather. 1.4.9. Please note that following codes are not failure. CODES No water flow Anti-Freezing Reminder Out of the operating range Insufficient water flow or pump blocked Power abnormal...

  • Page 7: Operations

    FOR USER 2. OPERATIONS 2.1. Notice before using 2.1.1. For longer service life, please ensure water pump is on before heat pump starts to work, and water pump is off after heat pump is off. 2.1.2. Ensure no water leakage on piping system, then unlock screen and press to power on heat pump.
  • Page 8 FOR USER 2.2.1. Screen lock: a. If no operation in 30 seconds, screen will be locked. b. When HP is off, screen will be dark and “0%” will be displayed. c. Press for 3 seconds to lock screen and it will be dark 2.2.2.
  • Page 9 FOR USER 1. Power On: Press for 3 seconds to light up screen, then press to power on heat pump. 2. Adjust Set Temperature: When screen is unlocked, press to display or adjust the set temperature. 3. Mode Selection: Press to select mode.

  • Page 10: Daily Maintenance And Winterizing

    FOR USER 2.3. Daily maintenance and winterizing 2.3.1. Daily Maintenance Please don’t forget to cut off power supply of the heat pump  Please clean the evaporator with household detergents or clean water, NEVER use gasoline, thinners or any similar fuel. ...

  • Page 11: Technical Specification

    FOR USER 3.TECHNICAL SPECIFICATION Model IPHC150T IPHC300T Advised pool volume (m 130~260 260~520 Operating air temperature (℃) -7~43 Performance Condition: Air 26°C, Water 26°C, Humidity 80% Heating capacity (kW) 60.0 110.0 COP at 50% capacity 10.1 10.0 Performance Condition: Air 15°C, Water 26°C, Humidity 70% Heating capacity (kW) 40.0...
  • Page 12 FOR USER 2100×1090×1280 Net dimension LxWxH (mm) 1000x1110x1260 Net weight (kg) 165/185 330/370 The values indicated are valid under ideal conditions: Pool covered with an isothermal cover, filtration system  running at least 15 hours per day. Related parameters are subject to adjustment periodically for technical improvement without further notice. For ...

  • Page 13: For Installers And Professionals

    FOR INSTALLERS AND PROFESSIONALS 1. TRANSPORTATION 1.1. When storing or moving the heat pump, the heat pump should be at the upright position. 1.2. When moving the heat pump, do not lift the water union since the titanium heat exchanger inside the heat pump will be damaged. 1.3.

  • Page 14: Installation And Maintenance

    FOR INSTALLERS AND PROFESSIONALS 2. INSTALLATION AND MAINTENANCE The heat pump must be installed by a professional team. The users are not qualified to install by themselves, otherwise the heat pump might be damaged and risky for users’ safety. 2.1. Notice before installation： 2.1.1.
  • Page 15 FOR INSTALLERS AND PROFESSIONALS UNIT=MM Model IPHC150T 1000 1110 1070 1000 1260 UNIT=MM Model IPHC300T 1154 ※ Above data is subject to modification without notice.

  • Page 16: Heat Pump Installation

    FOR INSTALLERS AND PROFESSIONALS 2.2.2. Heat pump installation.  The frame must be fixed by bolts (M10) to concrete foundation or brackets. The concrete foundation must be solid; the bracket must be strong enough and anti-rust treated;  The heat pump needs a water pump (Supplied by the user). The recommended pump specification-flux: refer to Technical Parameter, Max.
  • Page 17 FOR INSTALLERS AND PROFESSIONALS 1. How to connect to the terminal board of IPHC300T Step 1. open the maintenance panel   Remove three screws outside Open the panel   Remove two screws inside Open the internal...
  • Page 18 FOR INSTALLERS AND PROFESSIONALS Step 2. Power cord must be passed through below 3 holes  Connect the wire through three holes Hole1 Hole2 Hole3   Restore the internal panel Fix the internal panel by two screws   Restore the panel Fix the panel by three screws...

  • Page 19: Wiring Diagram

    For your safe use in winter, it’s strongly recommended to equip heating priority function.  For the detailed wiring diagram, please refer to Appendix 1.  3. Options for protecting devices and cable specification MODEL IPHC150T IPHC300T Rated Current A Breaker Rated Residual Action Current mA Fuse Power Cord（mm...

  • Page 20: Trial After Installation

    FOR INSTALLERS AND PROFESSIONALS NOTE: The above data is adapted to power cord ≤ 10m. If power cord is ＞10m, wire diameter must be increased. The signal cable can be extended to 50m at most. 2.3. Trial after installation Please check all the wirings carefully before turning on the heat pump. 2.3.1．Inspection before use ...

  • Page 21: Maintenance And Winterizing

    FOR INSTALLERS AND PROFESSIONALS 2.4. Maintenance and winterizing 2.4.1 Maintenance The maintenance should be carried out once per year by qualified professional technician.  Cut off power supply of the heat pump before cleaning, examination and repairing . Do not touch the electronic components until the LED indication lights on PCB turn off.

  • Page 22: Trouble Shooting For Common Faults

    FOR INSTALLERS AND PROFESSIONALS 3. TROUBLE SHOOTING FOR COMMON FAULTS FAILURE REASON SOLUTION No power Wait until the power recovers Power switch is off Switch on the power Heat pump doesn’t run Fuse burned Check and change the fuse The breaker is off Check and turn on the breaker evaporator blocked Remove the obstacles...
  • Page 23 Thank you for choosing Fairland Full-inverter heat pump...
  • Page 24 Version: B00IW-R410A...

This manual is also suitable for:

Iphc300t
