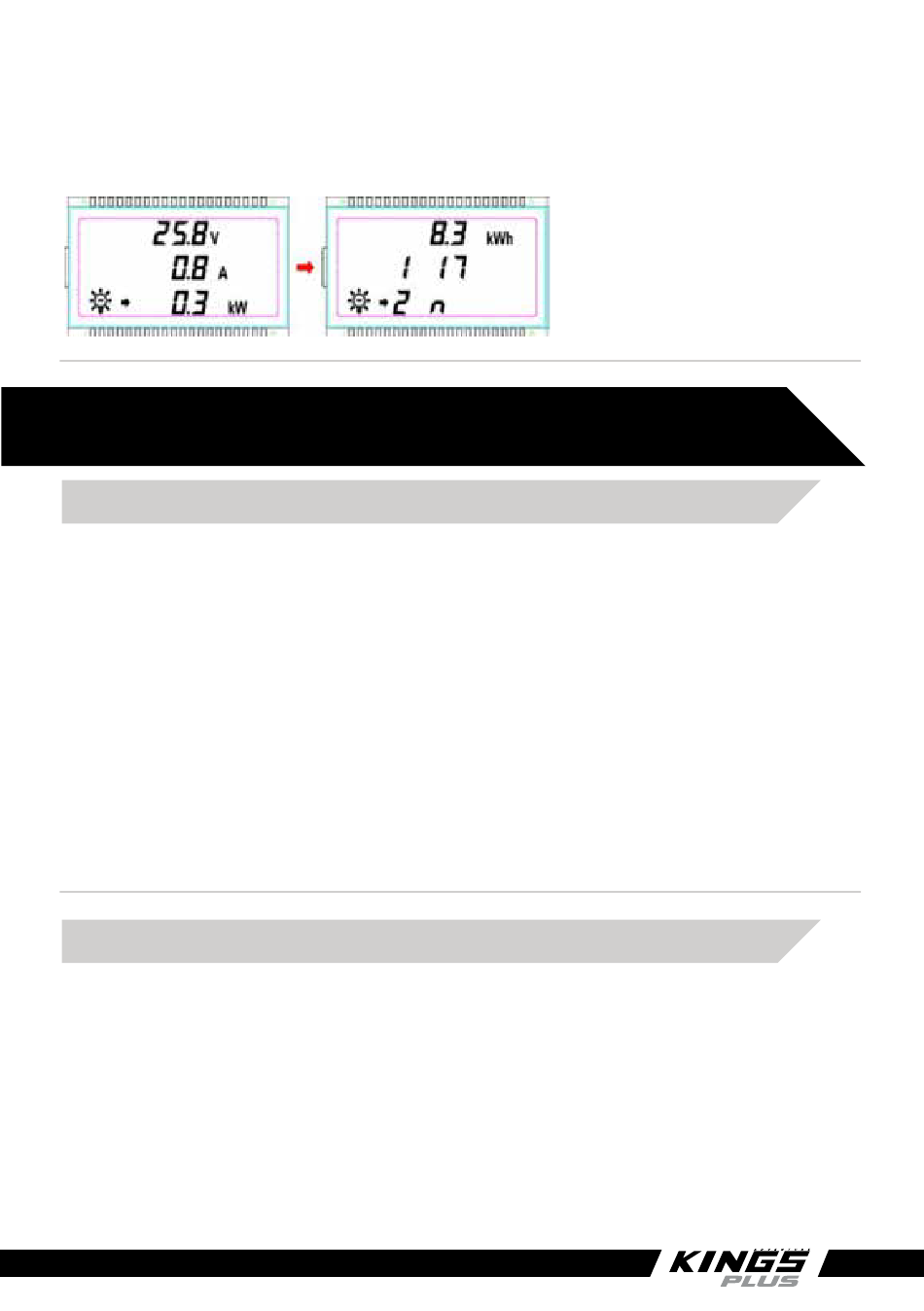

Pressing the LOAD button will access the Load Interface (with only the Load Icon shown
on screen) and will display information about the connected load (voltage, current and
power, total power consumed and load mode/ timer settings) on two screens that can
be cycled by short pressing the PV button. Pressing SET again returns to the HOME
SCREEN.

11. ADVANCED FUNCTIONS

CHANGING BATTERY TYPE

Step 1 – Start with the unit on the HOME SCREEN
Step 2 – Press the SET button to enter battery settings interface
Step 3 – Press and hold the BATT button to enter battery type interface
Step 4 – Press the + or – buttons (PV/+ or LOAD/-) to select battery type
Menu structure: SEL (Sealed), GEL, Fld (Flooded), F04 (12V Lithium LiFePO4),
F08 (24V Lithium LiFePO4), N03 (3S Lithium LiNiCoMnO2), N06 (6S
LiNiCoMnO2), N07 (7S LiNiCoMnO2) and USE (User Adjustable - please see
12. USER ADJUSTABLE SETTINGS on page 14 for more information)
Step 5 – Press SET to confirm selection
Step 6 – Press SET button x2 or wait 10 seconds to return to battery parameter menu

CHANGING BATTERY CAPACITY

Step 1 – Start with the unit on the HOME SCREEN
Step 2 – Press the SET button to enter battery settings interface
Step 3 – Press and hold the BATT button to enter battery type interface
Step 4 – Press the SET button to jump to battery capacity interface
Step 5 – Press the + or – buttons (PV/+ or LOAD/-) to set battery capacity
Step 6 – Press SET to confirm selection
Step 7 – Press SET to return to battery parameter menu
