Summary of Contents for Adventure Kings PLUS AKPSR-MPPT 01

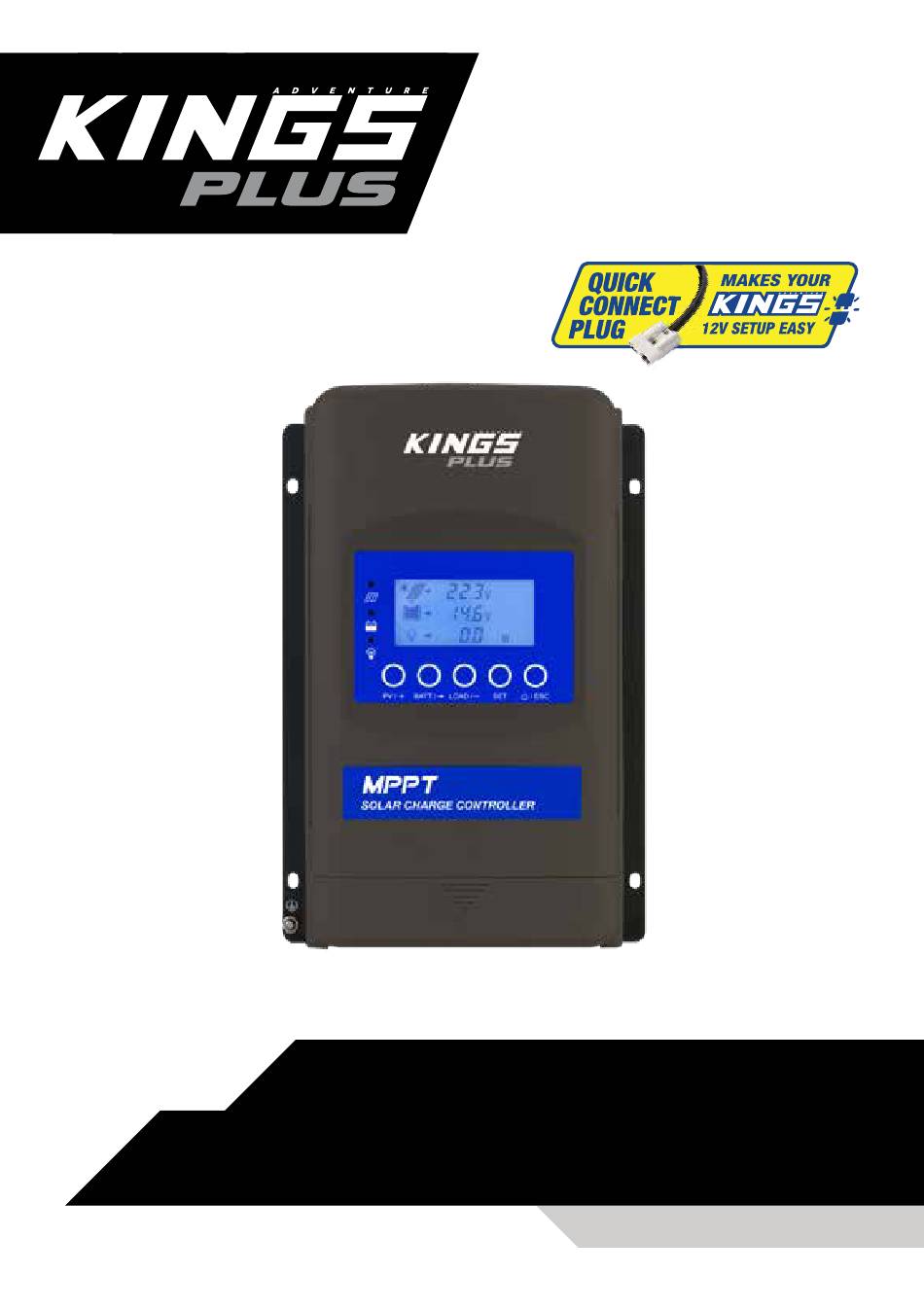

- Page 1 USER MANUAL (20 AMP LITHIUM COMPATIBLE) MPPT SOLAR CHARGE CONTROLLER / REGULATOR SKU: AKPSR-MPPT_01...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INFORMATION 2. KIT CONTAINS 3. PRODUCT IMAGE 4. INSTALLATION 5. SOLAR ARRAY REQUIREMENTS 6. WIRING REQUIREMENTS 7. LED INDICATORS 8. DISPLAY 9. BUTTON INSTRUCTIONS 10. BASIC BUTTON FUNCTIONS 11. ADVANCED FUNCTIONS Changing Battery Type Changing Battery Capacity Changing Temperature Units (°C to °F) Adjust Home Menu LCD Cycle Time Adjust Load Type / Timer... -
Page 3: Safety Information
• Maximum Solar Panel Input: 390W • Minimum Battery operating voltage: 8V 2. KIT CONTAINS • Adventure Kings Plus 20A MPPT Solar Charge Controller / Regulator • 2x twin core connection wires with Quick Connect Plugs • Temperature Sensor •... -
Page 4: Product Image
3. PRODUCT IMAGE V1.7... -
Page 5: Installation
4. INSTALLATION • Please read the entire installation instructions to get familiar with the installation steps before installation. • Be very careful when installing or connecting batteries, especially flooded lead-acid batteries. Wear eye protection and have fresh water available to wash and clean any contact with battery acid. -
Page 6: Solar Array Requirements
5. SOLAR ARRAY REQUIREMENTS The Adventure Kings Plus MPPT Charge Controller has an in-built charging current/ power-limiting function. During the charging process, when the charging current or power exceeds the rated charging current or power, the controller will automatically limit the charging current or power to the rated range. -
Page 7: Wiring Requirements
8AWG / 10mm2 • The Adventure Kings Plus MPPT Solar Charge Controller / Regulator is a common- negative controller, meaning all negative terminals are shared. The suggested method is to wire the battery, and loads and solar panels to the unit. If instead another earth point is used in the vehicle, the unit should also be earthed with the earth terminal on the heatsink. -
Page 8: Led Indicators
7. LED INDICATORS The Adventure Kings Plus MPPT Solar Charge Controller / Regulator has three multi- colour LEDs that can identify normal operations, connection issues and errors. INDICATOR INSTRUCTION Solar LED, Green Light, On Low current charging (early morning or late afternoon,... -
Page 9: Display
8. DISPLAY The icons on the left of the screen show basic information about how the system is operating, while the centre and right of the screen will cycle through the information for the solar, battery and load circuits including displaying voltage, current, power, total power, battery percentage and more. -
Page 10: Button Instructions
9. BUTTON INSTRUCTIONS When first connected, the unit will display Solar, Battery and Load information on the HOME SCREEN Display that cycles every 2 seconds. There are 5 buttons on the unit that perform different functions if they are short pressed, or long pressed (held) within the different displays / menus. -
Page 11: Basic Button Functions
Pressing the LOAD button will access the Load Interface (with only the Load Icon shown on screen) and will display information about the connected load (voltage, current and power, total power consumed and load mode/ timer settings) on two screens that can be cycled by short pressing the PV button. -
Page 12: Changing Temperature Units (°C To °F)
(PV, BATT or LOAD) until the desired parameter is shown. ADJUST LOAD TYPE / TIMER The Adventure Kings Plus Solar Charge Controller / Regulator has two sophisticated load settings available – users can set the load to turn on or off for certain time periods at certain times or turn on and off manually. -
Page 13: Clear Generated / Consumed Energy
Timer 1 Timer 2 Light ON/OFF Load will be on for 1 hour Load will be on for 1 hour after sunset before sunrise 102 ~ 115 Load will be on for 2 - 15 202 ~ 215 Load will be on for 2 - 15 hours after sunset hours before sunrise Test mode... -
Page 14: Factory Reset
FACTORY RESET There is a factory reset option available, to remove all user settings and revert to default settings. Ensure there are no solar panels or loads connected when performing a factory reset. Step 1 – Start with the unit on the HOME SCREEN Step 2 –... - Page 15 PARAMETERS DEFAULT RANGE OPERATION STEPS BCV (Boost 14.4V 9~17V Charge Voltage) 1. Press the SET button again to display the current “SYS” value FCV (Float 2. Press the + or - button (PV/+ or Charge 13.8V 9~17V LOAD/-) to increase the or decrease Voltage) the voltage by 0.1V respectively per LVR (Low...
-
Page 16: Built In Protections
13. BUILT IN PROTECTIONS When the charging current or power of the PV array exceeds the controller’s rated current or power, it will be charge at the rated current or power. PV OVER CURRENT / WARNING: When the PV’s charging current is greater than the OVER POWER rated current, the PV’s open circuit voltage cannot be greater than the “maximum PV open-circuit voltage”, otherwise the controller... - Page 17 The controller can detect the battery temperature through an external temperature sensor if fitted. The controller stops working when its temperature exceeds 65 °C and restart to work when its BATTERY OVER temperature is below 55 °C. NOTE: With an ambient temperature TEMPERATURE sensor fitted, the unit will only stop charging if ambient temperature exceeds 65°C...
-
Page 18: Troubleshooting
14. TROUBLESHOOTING POSSIBLE FAULT TROUBLESHOOTING REASON Charging LED indicator off during Confirm PV wire PV Array is daytime when sunshine falls on PV connections are correct disconnected modules properly and tight Check battery voltage, if Controller is correctly wired, but not Battery voltage below 8V, charge battery working... - Page 19 POSSIBLE FAULT TROUBLESHOOTING REASON Solar Indicator LED Green Light + When heat sink of Battery LED Indicator Orange Light, controller Exceeds BOTH Fast Flashing 85°C the controller will Controller automatically cut off input Overheating and output circuit. When the temperature drops below 75°C, the controller will resume working.
-
Page 20: Specifications
15. SPECIFICATIONS AKPSR-MPPT_01 20A MPPT Solar Charge Controller / NAME Regulator 12/24VDC (auto detect except for lithium) System Nominal Voltage Rated Charge Current Rated Discharge Current Battery Voltage Range 8~32V Max PV Open Circuit Voltage @25°C Standard Test Conditions Battery Voltage +2V ~ 36V MPP Voltage Range Rated Charge Power (12V System) 260W... -
Page 21: Default Lead-Acid Settings
16. DEFAULT LEAD-ACID SETTINGS Over Voltage Disconnect Charging Limit Voltage Over Voltage Reconnect Equalise Charging Voltage 14.6V 14.8V Boost Charging Voltage 14.4V 14.2V 14.6V Float Charging Voltage 13.8V 13.8V 13.8V Boost Reconnect Charging 13.2V 13.2V 13.2V Voltage Low Voltage Reconnect 12.6V 12.6V 12.6V... -
Page 22: Default Lithium Settings
17. DEFAULT LITHIUM SETTINGS Over Voltage 14.8V 29.8V 12.8V 25.6V 29.8V Disconnect Charging Limit 14.6V 29.2V 12.6V 25.2V 29.4V Voltage Over Voltage 14.6V 29.2V 12.5V 29.1V Reconnect Equalise Charging 14.5V 12.5V 29.1V Voltage Boost Charging 14.5V 12.5V 29.1V Voltage Float Charging 13.6V 27.2V 12.2V... -
Page 23: Appendix 1 Conversion Efficiency Curves
18. APPENDIX 1 CONVERSION EFFICIENCY CURVES Standard Test Conditions: 1000W/m2 illumination intensity, 25°C Temperature 1. For 12V System with Solar Module Max Power Point Voltage of either 17V or 34V 2. For 24V System with Solar Module Max Power Point Voltage of either 34V or 45V V1.7... -
Page 24: Warranty
19. WARRANTY 36 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 36 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
