9. BUTTON INSTRUCTIONS

When first connected, the unit will display Solar, Battery and Load information on the
HOME SCREEN Display that cycles every 2 seconds.
There are 5 buttons on the unit that perform different functions if they are short pressed,
or long pressed (held) within the different displays / menus.
1. While on the HOME SCREEN, pressing the PV, BATT or LOAD button will cycle that
selection through to the next display value.
a) Pressing PV will cycle through Volts, Amps, Watts and Watt hours.
b) Pressing BATT will cycle through Volts, Amps, Temperature and battery charge
percentage.
c) Pressing Load will cycle through Volts, Amps, Watts, consumed Watt hours, Load 1
setting and Load 2 Setting.
2. Short pressing the POWER/ESC button will turn the load output on or off
10. BASIC BUTTON FUNCTIONS

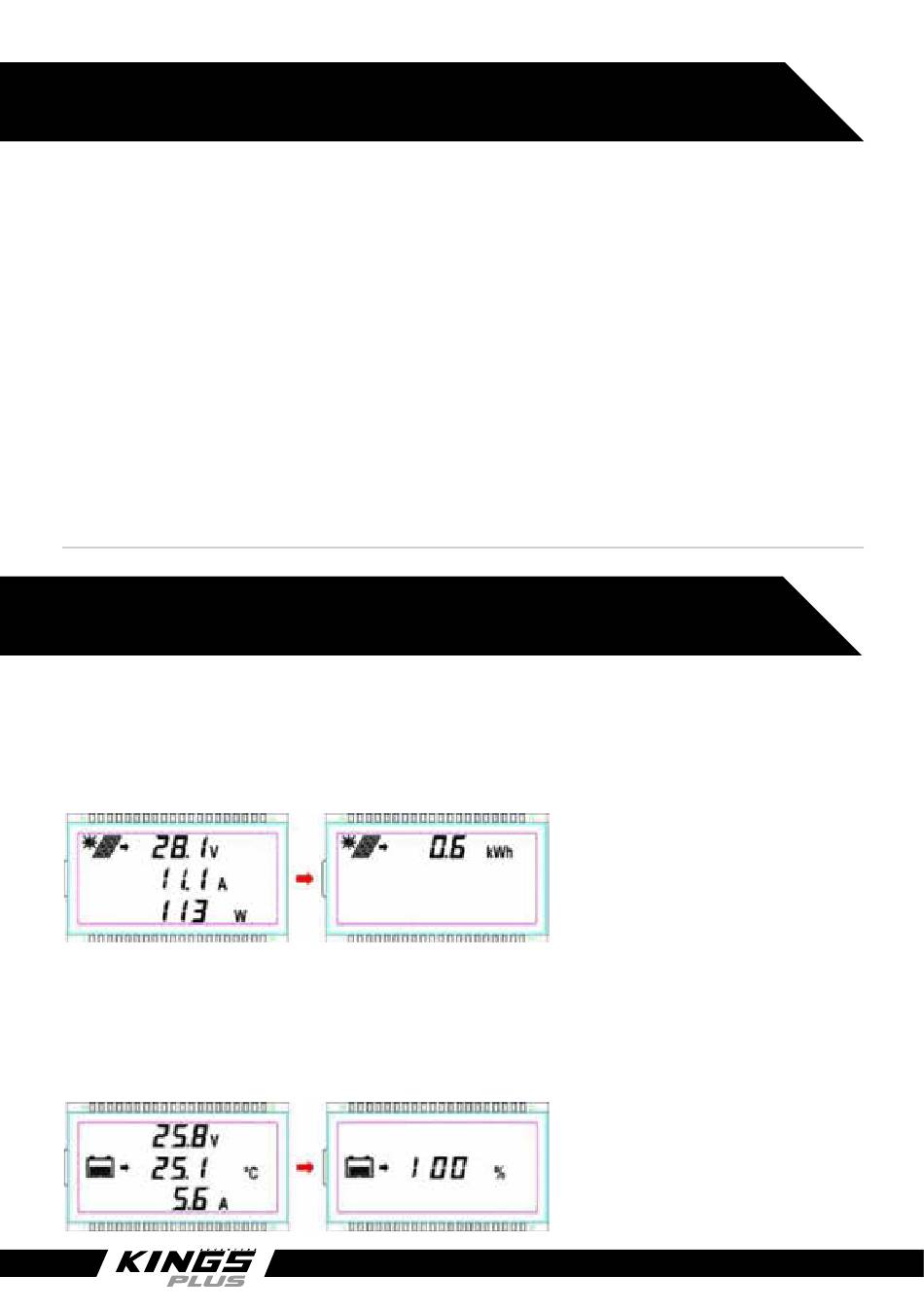

From the HOME SCREEN, pressing the SET button, then the PV button will access the
Solar Interface (with only the Solar Icon shown on screen) and display the connected
solar panel information (voltage, current, total power input and total generated power)
on two screens that can be cycled by short pressing the PV button. Pressing SET again
returns to the HOME SCREEN.
From the HOME SCREEN, pressing the BATT button will access the Battery Interface
(with only the Battery Icon shown on screen) and will display information about the
connected battery (voltage, temperature, current and battery capacity percentage) on
two screens that can be cycled by short pressing the PV button. Pressing SET again
returns to the HOME SCREEN.
