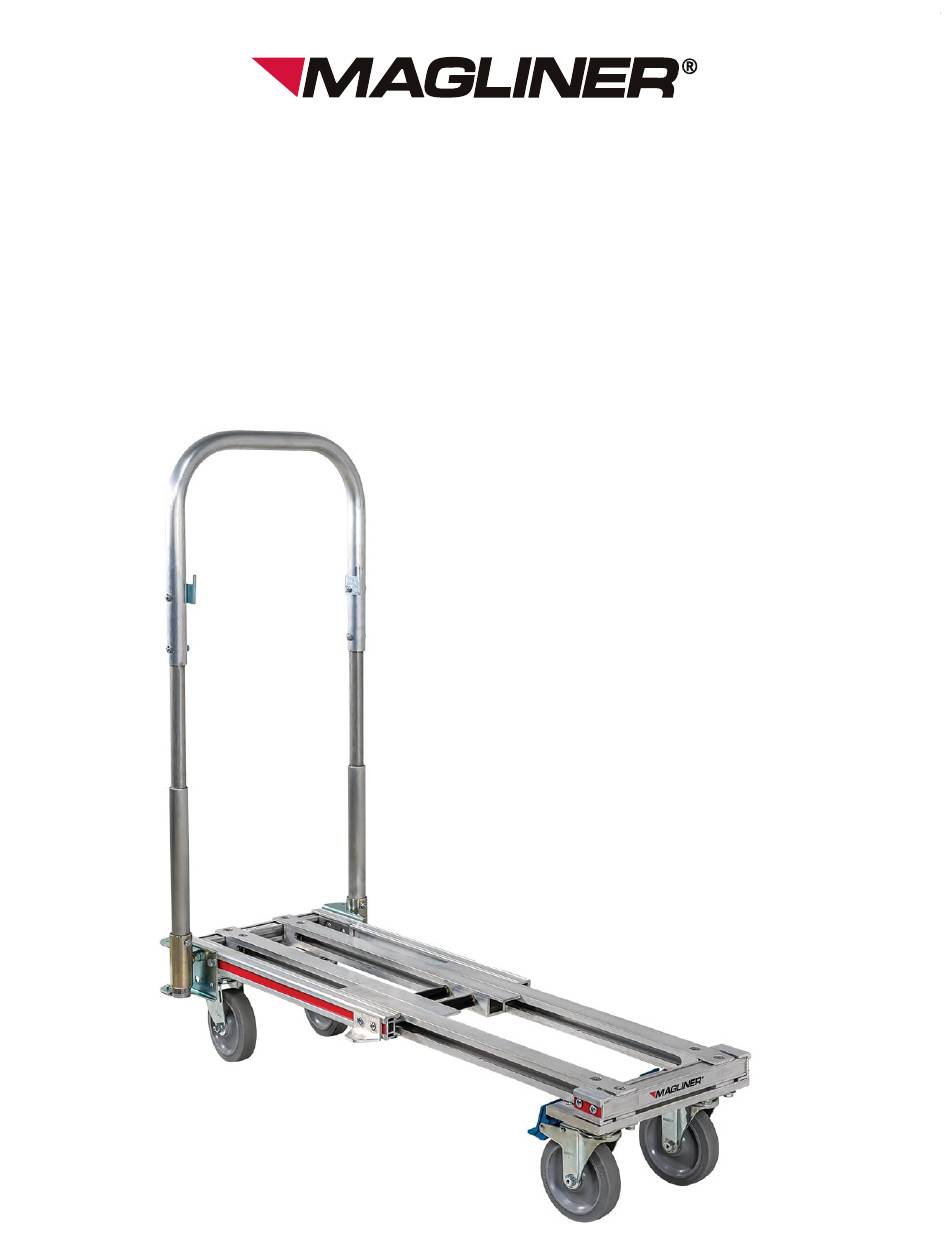

- Page 1 Folding Platform Truck Owners Manual Model MTA2-L Page 1...
-
Page 2: Table Of Contents
Table of Contents Introduction, General Safety Instructions ..................3 Folding Platform Truck Specifications ....................4 Folding Platform Truck Operation ......................5 Converting Folding Platform Truck Between Positions ..............6-7 List of Positions ............................8 Locking Caster Direction ........................8 Troubleshooting ..........................9-10 Inspection / Maintenance Checklist ....................11 Page 2... -
Page 3: Introduction, General Safety Instructions
Thank you for using the Magliner Folding Platform Truck If you have any questions regarding this product please contact Magline er Service at 1-800-MAGLINE (624-5463) or (989) Custom 512-1000. Please read this manual thoroughly to become familiar with the safe operation and maintenance of the Folding Platform Truck Convertible Hand Truck. -
Page 4: Folding Platform Truck Specifications
Folding Platform Truck Truck Specifications Fully Expanded Folding Platform Truck Components A. Telescopic pivoting handle B. Handle locking tab C. Frame latch D. 5” x 1-1/4” swivel caster E. 5” x 1-1/4” swivel caster with direction lock capability F . Frame locking rod G. -
Page 5: Folding Platform Truck Operation
Unfolding the Handle Caution: While converting the Folding Platform Truck between the different handle positions, take care to keep hands out of the way of moving parts. 1. Slide the pivoting handle toward the rear of the cart to disengage the handle locking tabs from the frame. -
Page 6: Converting Folding Platform Truck Between Positions
Expanding the Handle 1. Push the handle button on one side of the pivoting handle and lift slightly to unlock the tube on that side. 2. Push the handle button on the opposite side of the pivoting handle and lift slightly to unlock the tube on that side. - Page 7 Expanding the Deck Caution: While converting the Folding Platform Truck deck between different positions, take care to keep hands out of the way of moving parts. 1. Place your hands on the frame locking rods, as shown. 2. Slightly lift the rods to move them out of the locked position. 3.
-
Page 8: List Of Positions
List of Positions 2 Dolly Positions 29” 37” 6 Platform Truck Positions 33.5” 33.5” 35.5” 24” 32” 40” 41.5” 41.5” 41.5” 24” 32” 40” Locking Caster Direction The front two casters of the platform truck include directional locks to assist with moving he load in a straight direction. -
Page 9: Troubleshooting
Troubleshooting Problem Possible Causes Remedy If the pivot handle is bent or damaged, it should be replaced. The pivoting handle is Pivoting handle Check for burrs on the pivoting handle. File or difficult to transition sand the burrs until they’re smoothed out, or between folding and replace the pivoting handle. - Page 10 Problem Possible Causes Remedy Check to see if the caster wheels are loose within the brackets. Check to see if the brackets on the casters are bent or broken. The Folding Platform Truck Casters does not roll smoothly. Make sure the casters swivel easily. Check for flat spots on the caster wheels.
-
Page 11: Inspection / Maintenance Checklist
Page 11... - Page 12 Magline, Inc. 1205 W. Cedar Street • Standish, MI 48658 USA 1-800-MAGLINE (624-5463) • (989) 512-1000 (outside U.S. & Canada) www.magliner.com Form # B9604 © Copyright 2022, REV 11/22Magline, Inc. Page 12...
