Magliner C5 Assembly Instructions

Stair climbers hydraulic brake truck

C5 Stair Climbers

Hydraulic Brake Truck

www.magliner.com

Table of Contents:

Parts List .................................... 2

Assembly Instructions ...........2-4

For safe, efficient product use, Magline recommends inspecting

equipment regularly and replacing damaged components

immediately.

Table of Contents

Need help?

Do you have a question about the C5 and is the answer not in the manual?

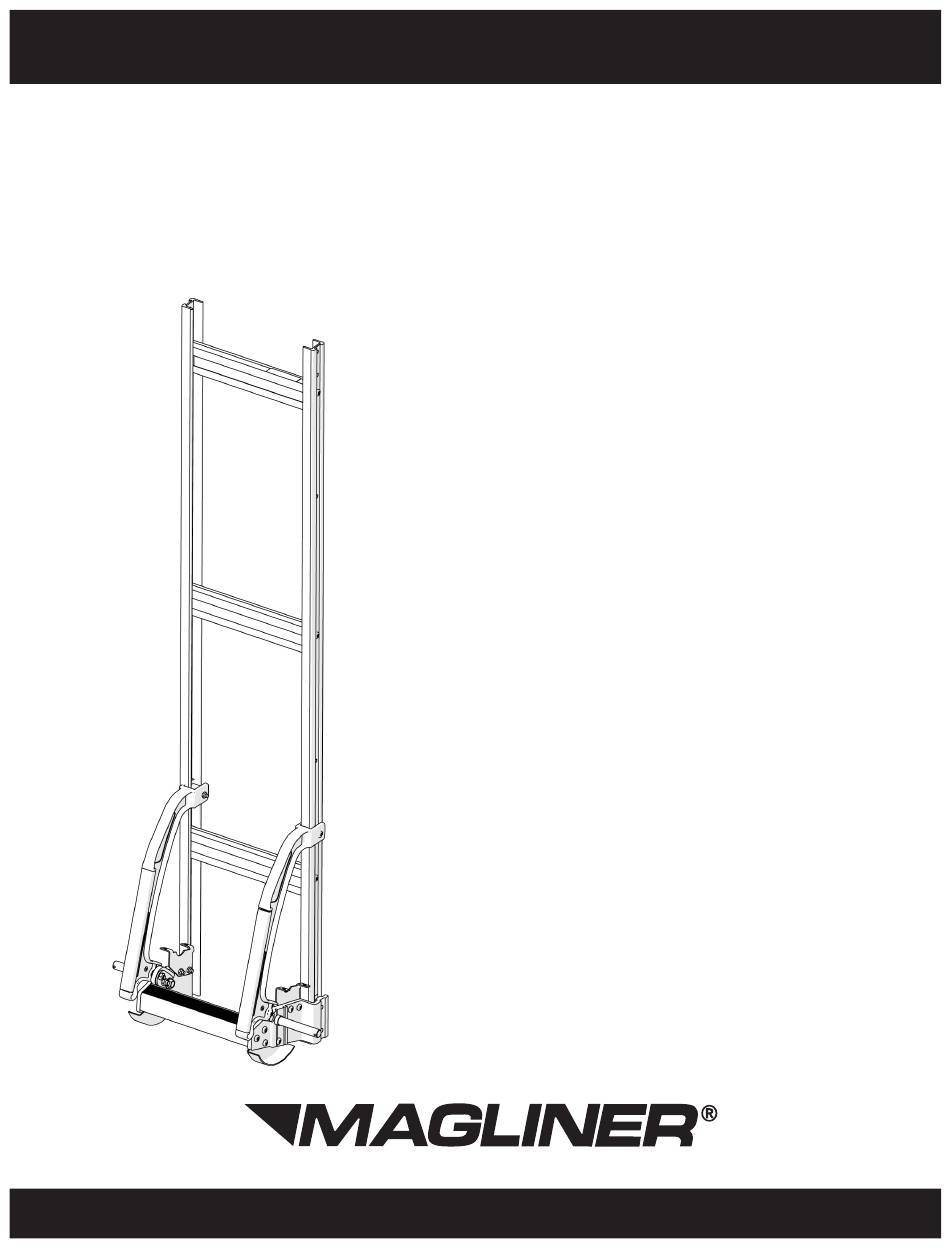

Page 1 ASSEMBLY INSTRUCTIONS C5 Stair Climbers Hydraulic Brake Truck Table of Contents: Parts List ........2 Assembly Instructions ...2-4 For safe, efficient product use, Magline recommends inspecting equipment regularly and replacing damaged components immediately. www.magliner.com...
Page 2 Note: These instructions are for Hydraulic Brake Trucks with the dual stub-axle (design prior to October 2019). If your brake truck has a single through-axle (current truck design from October 2019 and later) please download instructions from www.magliner.com/tools-resources/assembly-instructions. If you would like to convert your brake truck from dual stub-axle to single through-axle design, order 221541 axle conver- sion kit.
Page 3 Step 3 (1/2" wrenches, 9/16" wrench, pliers, blue thread locker) Insert lower bracket (C) and axle spacer (D) as shown below. Tip - it is helpful to temporarily insert a screw through both spacers to help hold alignment BEFORE you tighten the lock nut and axle bolt. Remove this screw after you've tightened the lock nut and axle bolt.
Page 4 For 39" frames: use the screwdriver to punch a hole through the red stripe. A hole will exist in the frame. For 60" frames: drill a hole in the frame using a Ø .281 (size K) drill bit and motor. Use the hole in the top of the C5 as a guide.
