Instruction Manual (Original Instructions)

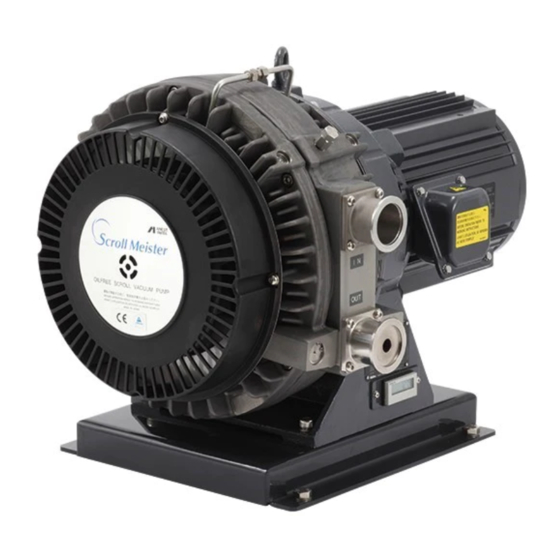

Oil-free Scroll Vacuum Pump
ISP-1000E
This instruction manual includes very important warnings, cautions and operating
procedure in order to operate this pump safely and efficiently.
Be sure to read this instruction manual thoroughly and fully understand before
operation.
After reading it, store it in a convenient place for immediate and future reading.
※ Before use, be sure to fill in the blank spaces below for future repair and after-service.
Serial No.
Who sold it to you
Purchase date
When you began
operation
CA72161006
Advertisement
Table of Contents
Related Manuals for Anest Iwata ISP-1000E
Summary of Contents for Anest Iwata ISP-1000E
- Page 1 CA72161006 Instruction Manual (Original Instructions) Oil-free Scroll Vacuum Pump ISP-1000E This instruction manual includes very important warnings, cautions and operating procedure in order to operate this pump safely and efficiently. Be sure to read this instruction manual thoroughly and fully understand before operation.
-
Page 5: Important Information
Important information Be sure to read this instruction manual to understand how to operate the equipment correctly. Only operators, who fully understand warnings, cautions and instructions, are to operate the equipment. Improper operation (mishandling) can cause serious injury, death, fire or explosion. Store this manual in a convenient place for immediate and future reference. -
Page 6: For Safe Operation
Install the unit in an area which is not motor eyebolt and crane with sufficient exposed to moisture such as rain or allowable load capacity (ISP-1000E mass steam. 68kgs) while paying attention to stability of If moisture comes into and tact with the suspended load. - Page 7 For safe operation WARNING Danger of short-circuit and Danger of electric shock electric shock Connect earth cord to earth terminal in motor terminal box. The power-supply conductor shall be free If not, it can cause injury from electric from strain including twisting by using cord Protect cable shock.
- Page 8 For safe operation CAUTION Danger of abnormal vibration Danger of overheating Detach equipment from packaging tray. Operate at ambient temperature of 10 ℃ ~40 ℃ . Operation while equipment is mounted on Operating at a temperature range other than that packaging tray can cause abnormal designated can cause accident, failure or injury vibration, resulting in accident and failure.
- Page 9 For safe operation CAUTION Danger of abnormal sound and Danger of exceeding permissible failure temperature of intake gas Open inlet to atmosphere for about 5 If intake gas temperature is over 50 ℃ , be seconds before restarting vacuum pump. sure to install a chiller or trap Be w a r e If not, it can unbalance temperature inside...
- Page 10 Where to attach warning stickers Where to attach warning stickers Always keep warning stickers clean and legible. If they become dirty or detached, replace them with new ones. If you need replacement stickers, contact the dealer who sold the vacuum pump to you. Protection cover Hour counter cover Beware of electric shock...
-
Page 11: Table Of Contents
Contents Important information ......................... 1 For safe operation ........................2 Contents ............................7 1. Before use ..........................8 1.1 Check the product ......................8 2. Name and structure of each section ................... 10 3. Installation ..........................11 3.1 Wiring ..........................12 3.2 Test operation ........................ -
Page 12: Before Use
・Check the following accessories. Instruction manual (this one) Air muffler for air-flushing (which is attached to eyebolt of motor) Vinyl bag (Air muffler is contained inside) ISP-1000E-TH ISP-1000E-TV Serial number Year of manufacture ※Please prepare electric source cables, crimp-style terminal, electric source... - Page 13 WARNING Danger of cargo collapse Be careful to install vacuum pump using motor eyebolt and crane with sufficient allowable load capacity (ISP-1000E mass 68kgs) while paying attention to stability of suspended load. Be careful about If not, it can cause damage, failure or injury from falling cargo due to hoisting failure, or by hoisting being caught between suspended cargo and other material.
-
Page 14: Name And Structure Of Each Section
2. Name and structure of each section Inlet NW40 IN plate Turning direction plate OUT plate Outlet NW40 Eye bolt Air flush port(Rc1/8) (It is closed by plug when delivered to you.) Fan cover Motor Hour counter Motor base Cooling fan Cooling fan Orbiting scroll OS Fixed scroll FS(2) -
Page 15: Installation
3. Installation WARNING Danger of electric shock Install the unit in an area which is not exposed to moisture such as rain or steam. If moisture comes into and tact with the electric source connection, it can cause fire or Avoid moisture injury due to short-circuit or electric shock. -
Page 16: Wiring
3.1 Wiring WARNING Danger of short-circuit and electric shock Ask a qualified electrician to perform electrical wiring. If not, short-circuit or electric shock can cause fire or injury. Ask qualified electrician Danger of electric shock and entanglement Be sure to turn off electric source on the installation site before wiring. If not, it can cause electric shock or injury due to turning objects. - Page 17 Danger of electric shock Connect earth cord to earth terminal in motor terminal box. If not, it can cause injury from electric shock. Be sure to ground Canadian regulation Motor not protected. External overheat protection in accordance with Canadian Electric Code Part Ⅰ [C22.1], must be provided.
- Page 18 Electric source Terminal M4 nut Activate the emergency stop by electric source switch or protective device. Avoid motor burnout by protective device (chart 1). Use rated over 9A electric source cable and earth cord. Use round type terminal. Cable-gland Fit cable-gland. Connect earth cord to earth terminal.
- Page 19 How to wire ① Remove 4pcs. of M5 bolts at motor terminal box and remove protection cover. ※Be sure to keep M5 bolts and washer, which were removed from the protection cover. ② Wiring diagram is shown inside protection cover. You can change to a 200V or 400V connection by changing terminal plate (3pcs.) and lead wire connection.
-
Page 20: Test Operation
3.2 Test operation CAUTION Danger of exhaust disruption Remove blank flange from inlet and outlet. Operation with blank flange being fitted can disrupt exhaust or cause blank flange to fly Remove blank by exhaust impetus, resulting in accident, failure, or injury from contact with flying objects. flange Danger of foreign objects entering inlet When checking turning direction, be careful not to enter foreign objects into an... -
Page 21: Connection To Vacuum System (Chamber)
In order to keep condensation away from feeding into the exhaust port, take proper measure. It causes exhaust disturbance. Drain condensations periodically by using valve separately arranged. Leak valve Chamber Vacuum pump Outlet duct Inlet Outlet Isolation valve (Automatic valve) ISP-1000E Drain condensation -17-... -
Page 22: Operation
4. Operation Be sure to use the procedure below to start up or shut down the pump. ・When you do not use air-flush device, proceed 4.1 Standard operation [page 20]. ・When you use air-flush device, proceed 4.2 Air-flush operation [page 21]. WARNING Danger of explosion and ignition Do not evacuate gas which is hazardous to humans or explosive, flammable, or... - Page 23 CAUTION Danger of exhaust disruption Remove blank flange from inlet and outlet. Operation with blank flange being fitted can disrupt exhaust or cause blank flange to fly Remove blank by exhaust impetus, resulting in accident, failure, or injury from contact with flying objects. flange Danger of vacuum break and pollution Be sure to close isolation valve between vacuum pump and vacuum system...
-
Page 24: Standard Operation
4.1 Standard operation 4.1.1 Start-up ① Check that blank flange of outlet have been removed. ② Close isolation valve in order to prevent the drawback of debris attached to the inside of vacuum pump into vacuum chamber due to pressure differential, resulting in vacuum break and pollution. -
Page 25: Air-Flush Operation
4.2 Air-flush operation This pump is equipped with air-flush port. Before evacuating vapor, read precautions below completely and be sure to understand the contents. Purpose of air-flush Processing humid air by vacuum pump may cause condensed water to remain in pump. -
Page 26: Start-Up And Shut-Down
4.2.2 Start-up and shut-down ① Start vacuum pump according to 4.1.1 Start-up [page 20]. ② Stop vacuum pump according to 4.1.2 Shut-down[page 20]. Important Continuous evacuating of humid gas When evacuating vacuum chamber while humidity in chamber is high, moisture volume drawn into pump differs according to temperature and pressure in chamber. -
Page 27: Maintenance And Inspection
5. Maintenance and inspection WARNING Danger of failure and injury Conduct periodical maintenance and inspection. If not, it can cause insufficient performance, failure of vacuum pump, and injury. Conduct periodical maintenance and inspection Danger of burns Conduct maintenance and inspection only after vacuum pump becomes cool enough. -
Page 28: Maintenance
5.2 Maintenance When maintenance interval has elapsed, be sure to contact our dealer who sold the pump to you. This vacuum pump requires maintenance conducted only by our authorized specialist. Never try to disassemble, reassemble or modify on user’s side. We are not responsible for any accidents caused by disassembly, reassembly or alteration which was done by the user or non-specialist. -
Page 29: Problems And Remedies
6. Problems and remedies If something goes wrong, refer to the following chart and remedy problems. If you cannot solve your problems, please contact either our dealer who sold it to you or us. Problems Causes Remedies Protective device (or breaker) Check protective device (or breaker) activates. -
Page 30: Specifications
Note 9：All data shown in this literature were measured based on our test standard and specific conditions. Actual measurements are subject to change of conditions of use. Note 10：ANEST IWATA reserves the right to change descriptions or specifications in this literature without prior notice. -26-... -
Page 31: Dimensions
8.2 Dimensions ISP-1000E-TH ISP-1000E-TV 8.3 Performance data -27-... - Page 32 Memo -28-...
- Page 34 Manufacturer 3176,Shinyoshida-cho, Kohoku-Ku, Yokohama 223-8501, Japan Tel +81 (0) 800-100-1926 Fax +81 (0) 45-591-1539 https://www.anest-iwata.co.jp/ European agent Am Stahlbügel 2, 74206 Bad Wimpfen, Germany Tel +49-7063-93-3670 https://www.anest-iwata-air.com Manual No.V183-05 Code No.08818744...
