Rinnai HSNRP26 Operation Manual

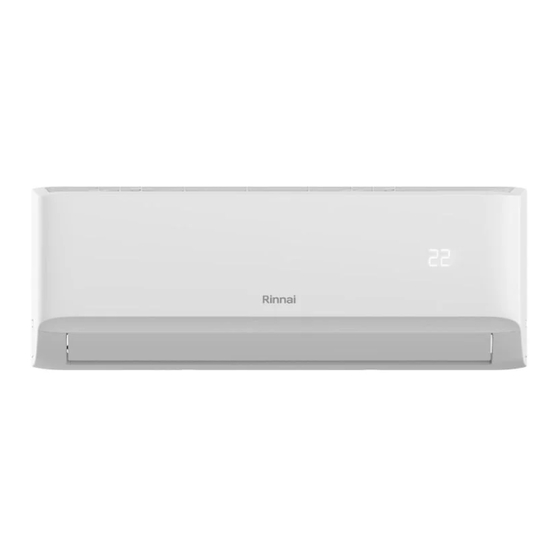

Split type wall mounted air conditioner wi-fi smart kit
Hide thumbs Also See for HSNRP26:

Advertisement

Quick Links

Download this manual
P Series Split Type Wall Mounted Air Conditioner
Wi-Fi Smart Kit Operation Manual
MODELS
System
Indoor
HSNRP26
HINRP26M
HSNRP35
HINRP35M
HSNRP50
HINRP50M
HSNRP60
HINRP60M
HSNRP70
HINRP70M
HSNRP80
HINRP80
HINRP20M
Ref Only
Outdoor
HONRP26
HONRP35
HONRP50
HONRP60
HONRP70
HONRP80
Matching Multi System Only
REFRIGERANT
R32

Advertisement

loading

Related Manuals for Rinnai HSNRP26

Summary of Contents for Rinnai HSNRP26

  • Page 1 MODELS REFRIGERANT System Indoor Outdoor HSNRP26 HINRP26M HONRP26 HSNRP35 HINRP35M HONRP35 HSNRP50 HINRP50M HONRP50 HSNRP60 HINRP60M HONRP60 HSNRP70 HINRP70M HONRP70 HSNRP80 HINRP80 HONRP80 HINRP20M Ref Only Matching Multi System Only P Series Split Type Wall Mounted Air Conditioner Wi-Fi Smart Kit Operation Manual...
  • Page 2 IMPORTANT NOTE: Read the manual carefully before installing or connecting your Smart kit(Wireless module). Make sure to save this manual for future reference. DECLARATION OF CONFORMITY Hereby, we declare that this Smart kit is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

  • Page 3: Table Of Contents

    CONTENTS SPECIFICATION..........PRECAUTIONS ..........DOWNLOAD AND INSTALL APP....INSTALL THE SMART KIT....... USER REGISTRATION ........NETWORK CONFIGURATION......HOW TO USE APP..........SPECIAL FUNCTIONS........

  • Page 4: Specification

    SPECIFICATION Model: OSK102,EU-OSK103,US-OSK103 Standard: IEEE 802. 11b/g/n Antenna Type: Printed PCB Antenna Frequency : WLAN 2400~2483.5 MHz Operation Temperature:0 C~45 C/32 F~113 F Operation Humidity: 10%~85% Power Input: DC 5V/300mA Maximum Transmitted Power: 19.8dBm Max PRECAUTIONS Applicable system: iOS, Android. (Suggest: iOS 8.0 or later, Android 4.0 or later) Please keep you APP up to date with the latest version.

  • Page 5: Download And Install App

    Due to different network situation, sometimes, request time-out could happen, thus, it is necessary to do network conf iguration again. The APP system is subject to update without prior notice for product function improvement. The actual network configuration process may be slightly different from the manual, the actual process shall prevail.

  • Page 6: Install The Smart Kit

    INSTALL THE SMART KIT(wireless module) NOTE: The P Series wall mounted split system indoor unit has been pre-fitted with the Wi-Fi Smart Kit. Please proceed to Step 5 on page 4 of this manual. Remove the protective cap of the smart kit (wireless module) Open the front panel and insert the smart kit (wireless module) into the reserved interface.

  • Page 7: User Registration

    USER REGISTRATION Please ensure your mobile device is connected to Wireless router. Also, the Wireless router has already connected to Internet before doing user registration and network configuration. It is better to log in your email box and active your registration account by clicking link in case you forget the password.

  • Page 8: Network Configuration

    NETWORK CONFIGURATION Cautions It is necessary to forget any other around network and make sure the Android or i OS device just connect to the Wireless network you want to configure. Make sure the Android or i OS device Wireless function works well and can be connected back to your original Wireless network automatically.
  • Page 9 5 Press “ + Add Device ” 6 Select the appliance you are setting up...
  • Page 10 7 Follow the above steps to enter “AP” mode.
  • Page 11 9 Choose the “ Scan the 8 Choose the network QR code ” method. configuration method.
  • Page 12 Or choose the “Manual Please enter password Setup” method.
  • Page 13 WLAN WLAN WLAN Configuration Success, Network configuration is you can see the device successful on the list.
  • Page 14 Using iOS device to do network configuration Make sure your mobile device has already been connected to the Wireless network which you want to use. Also, you need to forget other irrelevant Wireless network in case it influences your configuration process. Disconnect the power supply of AC(some units).
  • Page 15 7 Follow the above steps to enter “AP” mode.
  • Page 16 Connect to the Wireless Please enter password network.
  • Page 17 WLAN WLAN WLAN Configuration Success, Network configuration is you can see the device successful on the list.
  • Page 18 NOTE: When finishing network configuration, APP will display success cue words on the screen. Due to different internet environment, it is possible that the device status still display “offline” . If this situation occurs, it is necessary to pull and refresh the device list on the APP and make sure the device status become “online”...

  • Page 19: How To Use App

    HOW TO USE APP Please ensure both your mobile device and air conditioner are connected to the Internet before using app to control the air conditioner via internet, please follow the next steps: S I M ! 2 Choose the air conditioner. 1 Click "...
  • Page 20 Thus, user can control air conditioners on/off status, operation mode, temperature, fan speed and so on. NOTE: Not all the function of the APP is available on air conditioner. For example: ECO, Turbo, Swing function, please check the user manual to find more information.

  • Page 21: Special Functions

    SPECIAL FUNCTIONS Including: Timer on, Timer off, 8 C Heat, Sleep, Check. NOTE: If the air conditioner do not support the above function, the function will be hided from the function list. Timer on/Timer off Weekly, user can make an appointment to turn on or off AC on specific time.
  • Page 23 8 C Heat User can let the AC run under 8 C Heat by one-click. When people go outside, this function can protect your furniture from frost damage.
  • Page 24 Sleep User can customise their own comfortable sleep by setting target temperature.
  • Page 25 Check User can simply check the AC running status with this function. When finishing this procedure, it can display the normal items, abnormal items, and detail information.
  • Page 26 Share Device The air conditioner can be controlled by multi-users at the same time by Share Device function. 1 Click " Share device " 2 QR code display.
  • Page 27 4 Now the others can 3 The other users must log " " in Nethome Plus app add the shared device. " first, then click Add Share " Device on their own mobile, then ask them to scan the QR code.
  • Page 28 CAUTIONS: For models of US-OSK103, EU-OSK103: FCC ID:2AS2HMZNA19 IC:24951-MZNA19 For model of OSK102: FCC ID:2AS2HMZNA18 IC: 24951-MZNA18 T his d evice co mplies with Pa rt 1 5 o f the F CC R ules and In dustry Can ada's lice nce-exemp t RSS standards. Operat ion is sub ject to the f ollow in g two con d ition s: (1) T his d evice may not cause int erferen ce;...
  • Page 29 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful...
  • Page 30 Company will not be liable for any issues and problems caused by Internet, Wireless Router and Smart Devices. Please contact the original provider to get further help.
  • Page 32 Monday to Friday, 8.00 am to 5.00 pm EST. *Cost of a local call may be higher from a mobile phone. (National calls from public phones in Australia are free.) For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with...
