Rinnai HINRP26M Operation Manual

Split type wall mounted air conditioner
Hide thumbs Also See for HINRP26M:

Advertisement

Table of Contents

Models
System
Indoor
HSNRP26
HINRP26M
HSNRP35
HINRP35M
HSNRP50
HINRP50M
HSNRP60
HINRP60M
HSNRP70
HINRP70M
HSNRP80
HINRP80
HINRP20M
Ref Only
P Series Split Type Wall Mounted Air Conditioner
Remote Controller Operation Manual
Outdoor
HONRP26
HONRP35
HONRP50
HONRP60
HONRP70
HONRP80
Matching Multi System Only
REFRIGERANT
R32

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HINRP26M and is the answer not in the manual?

Questions and answers

Related Manuals for Rinnai HINRP26M

Summary of Contents for Rinnai HINRP26M

  • Page 1 Models REFRIGERANT System Indoor Outdoor HSNRP26 HINRP26M HONRP26 HSNRP35 HINRP35M HONRP35 HSNRP50 HINRP50M HONRP50 HSNRP60 HINRP60M HONRP60 HSNRP70 HINRP70M HONRP70 HSNRP80 HINRP80 HONRP80 HINRP20M Ref Only Matching Multi System Only P Series Split Type Wall Mounted Air Conditioner Remote Controller Operation Manual...

  • Page 2: Table Of Contents

    Table of Contents Remote Controller Specifications ............0 Handling the Remote Controller ............0 Buttons and Functions ..............0 Remote Screen Indicators .............. How to use Basic Functions ............10 How to Use Advanced Functions ........... The design and specifications are subject to change without prior notice for product improvement.

  • Page 3: Remote Controller Specifications

    Remote Controller Specifications RG10A(D2S)/BGEF, RG10A(D2S)/BGEFU1,RG10A1(D2S)/BGEF, RG10A2(D2S)/BGEFU1, RG10A2(D2S)/BGCEFU1, RG10A2(D2S)/BGCEF, RG10A10(D2S)/BGEF, RG10B(D2)/BGEF, RG10B1(D2)/BGEF, RG10B2(D2)/BGCEF,RG10B10(D2)/BGEF，RG10B10(D2)/BGCEF, RG10Y1(D2)/BGEF,RG10Y2(D2S)/BGEF 3.0V( Dry batteries R03/LR03×2) -5°C~60°C(23°F~140°F) NOTE: For models of RG10Y1 (D2)/BGEF,RG10Y2(D2S)/BGEF, If the unit is turned off under COOL, AUTO or DRY mode with the set temperature less than 24 C, the set temperature will be automatically set to 24 C when you turn on the unit again.

  • Page 4: Handling The Remote Controller

    Handling the Remote Controller Inserting and Replacing Batteries NOTES FOR USING REMOTE CONTROL Your air conditioning unit may come with two The device could comply with the local national batteries(some units). Put the batteries in the regulations. remote control before use. In Canada, it should comply with •...

  • Page 5: Buttons And Functions

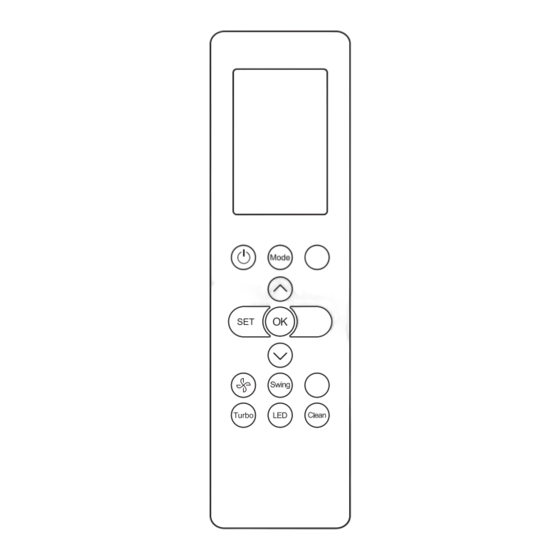

    Buttons and Functions Before you begin using your new air conditioner, make sure to familiarize yourself with its remote control. The following is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the How to Use Basic Functions section of this manual.
  • Page 6 MODE ON/OFF Scrolls through operation modes Turns the unit on or off. as follows: AUTO  COOL  DRY  HEAT  FAN TEMP Increases temperate in NOTE: HEAT mode is not 1°C (1°F) increments. supported by the cooling only Max.
  • Page 7 ON/OFF MODE Turns the unit on or off. Scrolls through operation modes TEMP as follows: AUTO  COOL  Increases temperate in DRY  HEAT  FAN 1°C (1°F) increments. NOTE: HEAT mode is not Max. temperature is supported by the cooling only 30°C (86°F).
  • Page 8 MODE ON/OFF Turns the unit on or off. Scrolls through operation modes as follows: AUTO  COOL  TEMP DRY  HEA T  FAN Increases temperate in NOTE: HEAT mode is not 1°C (1°F) increments. supported by the cooling only Max.

  • Page 9: Remote Screen Indicators

    Remote Screen Indicators Information are displayed when the remote controller is power up. Breeze Away display(some units) Active clean feature display Fresh feature display Sleep mode display Follow me feature display Wireless control feature display (some units) Transmission Indicator Low battery detection display(If flashes) Lights up when remote sends signal to indoor MODE display...

  • Page 10: How To Use Basic Functions

    How to Use Basic Functions ATTENTION Before operation, please ensure the unit is plugged in and power is available. AUTO Mode Select AUTO mode Set your desired temperature Turn on the air conditioner MODE NOTE: 1. In AUTO mode, the unit will automatically select the COOL, FAN, or HEAT function based on the set temperature.
  • Page 11 Setting the TIMER TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off. TIMER ON setting Press TIMER button to initiate Press Temp. up or down button for Point remote to unit and wait 1sec, the ON time sequence.

  • Page 12: How To Use Advanced Functions

    How to Use Advanced Functions Swing function Press Swing button Swing Swing The horizontal louver will swing up and down Keep pressing this button more than 2 seconds, automatically when pressing Swing button. the vertical louver swing function is activated. Press again to make it stop.
  • Page 13 ECO/GEAR function(some units) Press X-ECO button to enter the energy efficient mode in a sequence of following: GEAR(75%) GEAR(50%) Previous setting mode ECO..Note:This function is only available under COOL mode. ECO operation: Under cooling mode, press this button, the remote controller will adjust the temperature automatically to 24 C/75 F, fan speed of Auto to save energy (only when the set temperature is less than 24 C/75 F).
  • Page 14 Silence function Keep pressing Fan button for more than 2 seconds to activate/disable Silence function(some units). Due to low frequency operation of compressor, it may result in insufficient cooling and heating capacity. Press ON/OFF, Mode, Sleep, Turbo or Clean button while operating will cancel silence function.
  • Page 15 SET function Press the SET button to enter the function setting, then press SET button or TEMP or TEMP button to select the desired function. The selected symbol will flash on the display area, press the OK button to confirm. To cancel the selected function, just perform the same procedures as above.
  • Page 16 Tel: 1300 555 545* Fax: 1300 555 655 Monday to Friday, 8.00 am to 5.00 pm EST. *Cost of a local call higher from mobile or public phones. For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with...
