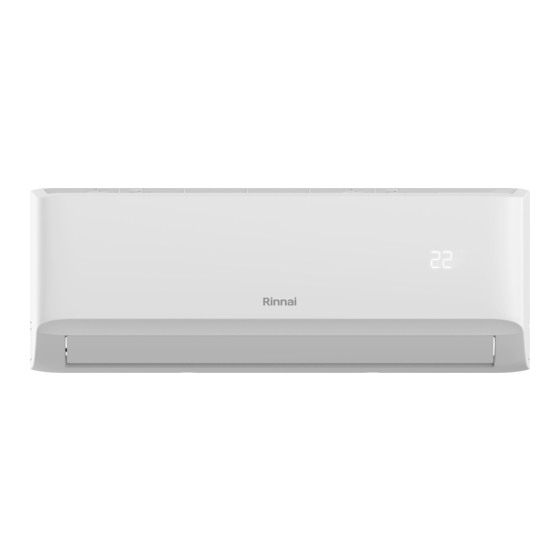

Rinnai Pro Series Installation Manual
High wall split heat pump / air conditioner
Hide thumbs
Also See for Pro Series:
- Installation manual (44 pages) ,
- Operation manual (24 pages) ,
- User manual (12 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Rinnai Pro Series
Summary of Contents for Rinnai Pro Series
- Page 1 Models System Indoor Outdoor HSNRP26 HINRP26M HONRP26 HSNRP35 HINRP35M HONRP35 HSNRP50 HINRP50M HONRP50 HSNRP60 HINRP60M HONRP60 HSNRP70 HINRP70M HONRP70 HSNRP80 HINRP80 HONRP80 Pro Series High Wall Split Heat Pump / Air Conditioner Installation guide...
- Page 2 Warning Improper installation, adjustment, alteration, service and maintenance can cause property damage, personal injury or loss of life. For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland...
-
Page 3: Table Of Contents
Contents Safety messages / important information .....4 Pro Series specification summary ......6 Component description.........7 Installation overview ..........7 Positioning and clearances - indoor unit....8 Positioning and clearances - outdoor unit ....9 Indoor installation ..........10 Outdoor installation..........13 Refrigerant piping connection .......15 Evacuation ............17 Electrical and gas leak checks ......18... -
Page 4: Safety Messages / Important Information
Safety messages / important information This appliance is heavy, use two people or a mechanical lifting device. Improper lifting may result in serious injury. HEAVY Use two people or a mechanical lifting device For safety and warranty, appliances that are damaged MUST NOT be installed or operated under any circumstances. - Page 5 R32 refrigerant This appliance uses R32 (difluoromethane) refrigerant, which is a flammable gas, class 2.2 according to AS/NZS 1677 and must be handled by a qualified person with the appropriate refrigerant handling licence. Make sure to check for and rectify any refrigerant leaks after you install or repair the unit. Certain levels of refrigerant require minimum room sizes.
-
Page 6: Pro Series Specification Summary
Pro Series specification summary 2.0kW 2.6kW 3.5kW 5.0kW 6.0kW 7.0kW 8.0kW Nominal Capacity 2.65 3.55 Power Supply to Outdoor Unit 220~240 - 1 - 50 V - Ph - Hz Recommended Circuit Breaker Rated Capacity 2.65 3.55 Capacity Range 0.80-2.90 1.00-3.50... -
Page 7: Component Description
Component description Wall mounting plate Front panel Louvre Drainage pipe Small filter Signal cable Refrigerant piping Remote Remote holder Outdoor unit power cable Installation overview 150 mm 120 mm 120 mm 2000 mm Select installation location. Determine wall hole position. Attach mounting plate. -
Page 8: Positioning And Clearances - Indoor Unit
Positioning and clearances - indoor unit Required clearances 150 mm 120 mm 120 mm 2000 mm Ensure the following: DO NOT install: 5 Good air circulation 6 Near a doorway 5 Convenient drainage 6 In a location subject to direct sunlight 5 Noise from the unit will not disturb others 6 Near any source of heat, steam, or 5 Firm and solid—location will not vibrate... -
Page 9: Positioning And Clearances - Outdoor Unit
Positioning and clearances - outdoor unit Required clearances Ensure the following: DO NOT install: 5 Good air circulation and ventilation 6 Near any source of combustible gas 5 Noise from the unit will not disturb others 6 In locations exposed to excessive salty air 5 Firm and solid—location will not vibrate 6 In locations exposed to excessive dust 5 Protected from prolonged periods of direct... -
Page 10: Indoor Installation
Indoor installation Select installation location Refer notes and clearances diagram on p.8. Attach mounting plate to wall • Remove the screw that attaches the mounting plate to the back of the indoor unit. • Secure the mounting plate to the wall with the screws provided. Make sure the mounting plate is flat against the wall. - Page 11 Connect drain hose By default the drain hose is attached to the left-hand side of the unit (when facing the back of the unit). However, it can also be attached to the right-hand side. To ensure proper drainage attach the drain hose on the same side that your refrigerant piping exits the unit. Attach the drain hose extension (purchased separately) to the end of the drain hose.
- Page 12 Indoor installation continued Wrap piping and cables Before passing the piping, drain hose, and the signal cable through the wall bundle them together to save space, protect and insulate them. Bundle the drain hose, refrigerant pipes, and signal cable as shown. Make sure the drain hose is at the bottom of Space behind unit the bundle.
-
Page 13: Outdoor Installation
Outdoor installation Select installation location Refer notes and clearances diagram on p.9. Install drain joint Before bolting the outdoor unit in place, you must install the drain joint at the bottom of the unit so condensate can be properly drained away so as not to cause property damage. Anchor outdoor unit The outdoor unit can be anchored to the ground or to a wall mounted bracket with M10 bolts. - Page 14 Outdoor installation continued Connect signal and power cables Before performing any electrical or wiring work, turn off the mains power to the system. All wiring must be performed in accordance with the wiring diagram located on the WARNING inside of the wiring cover. The signal cable enables communication between the indoor and outdoor units.
-
Page 15: Refrigerant Piping Connection
Refrigerant piping connection When connecting refrigerant piping do not let substances or other gases other than the specified refrigerant enter the unit. The presence of other gases or substances will lower the unit’s capacity, and can cause abnormally high pressure in the refrigeration cycle. WARNING This can cause explosion and injury. - Page 16 Refrigerant piping connection continued Flare pipe ends continued Place flaring tool onto the form. Turn the handle of the flaring tool clockwise until the pipe is fully flared. Remove the flaring tool and flare form, then inspect the end of the pipe for cracks and even flaring.
-
Page 17: Evacuation
Evacuation Air and foreign matter in the refrigerant circuit can cause abnormal rises in pressure, which can damage the unit, reduce its efficiency, and cause injury. Use a vacuum pump and manifold gauge to evacuate the refrigerant circuit, removing any residual gas and moisture from the system. Evacuation should be performed upon initial installation and when the unit is relocated. -
Page 18: Electrical And Gas Leak Checks
Electrical and gas leak checks Confirm the unit’s electrical system is safe and operating properly. Check all flare nut connections and confirm the system is not leaking. Confirm gas and liquid (high and low pressure) valves are fully open. Electrical safety checks After installation confirm that all electrical wiring is installed in accordance with the wiring diagrams on the appliance and with local regulations. -
Page 19: Test Run
Test run Perform the test run for at least thirty minutes. Connect power to the unit and press the ON/OFF button on the remote to turn it Press the MODE button to scroll through the following functions: • COOL select the lowest temperature •... -
Page 20: Installation Checklist
Installation checklist Complete the installation checklist below and make sure this is left with the homeowner. Also instruct the homeowner about the use, care, and maintenance of the system, and ensure they understand the safety instructions. Check Issues if not checked F Is the indoor unit installed securely? Dislodgement, vibration, noise F Checked for gas leaks? -
Page 21: Mounting Plate Dimensions
Apendix 1: Mounting plate dimensions The Pro Series mounting plates differ to those represented in the dimension diagrams below, they look like this. 2.6 kW and 3.5 kW Model B Right rear hole Left rear hole 5.0 kW and 6.0 kW... -
Page 22: Appendix 2 Error Code Summary
Apendix 2: Error code summary Error code Error description Indoor unit EEPROM parameter error EH 00 / EH or Indoor / outdoor communication error EL 01 Zero crossing signal detection error EH 02 Over low voltage protection of indoor external fan EH 30 Over voltage protection of indoor external fan EH 31... - Page 23 Error code Error description Condenser high temperature protection pc or Humidity sensor is in open circuit or has short circuited fh 0c Compressor discharge temperature protection pc 06 Outdoor current protection pc 08 Anti-cold air in heating mode ph 09 PFC module malfunction pc of High pressure protection...
- Page 24 Rinnai.co.nz Tel: 0800 746 624 Pro Series installation guide http://www.youtube.com/rinnainz http://facebook.com.rinnainz 14093-A I 01-22...
