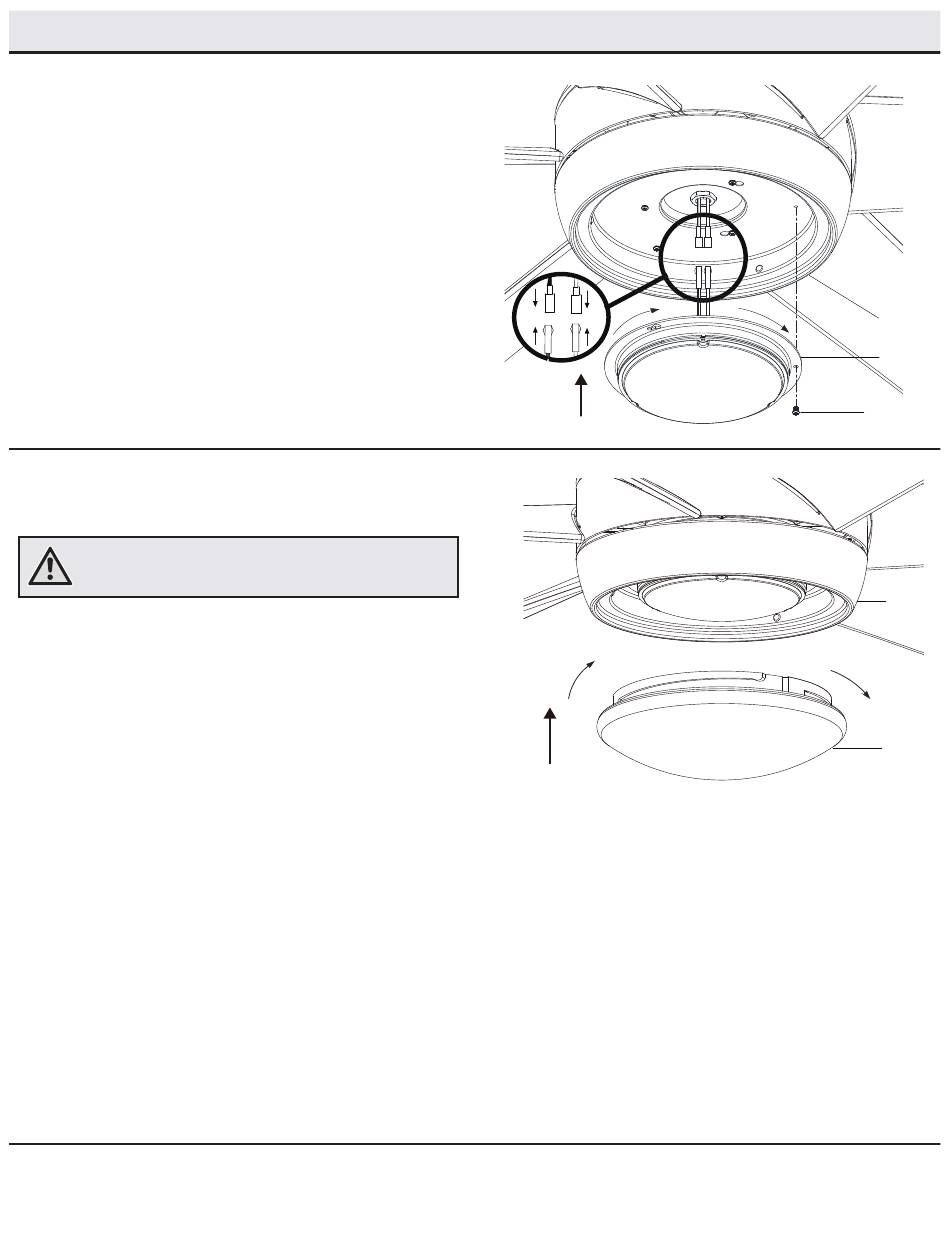

Assembly - Attaching the Accessories (continued)
2
Attaching the light kit fitter assembly
Remove one screw (TT) from the light kit pan (F), and loosen,
but do not remove the other two screws.
Connect the wires from the light kit fitter assembly (I) to the
wires from the fan motor assembly (E) by connecting the
molded adaptor plugs together. Carefully tuck all wires and
splices into the switch cup.
Push the light kit fitter assembly (I) up to the light kit pan (F)
so that the two loosened screw heads fit into the keyhole
slots. Turn the light kit fitter assembly (I) clockwise to secure.
Re-install the screw that was removed in the first step.
Make sure all the screws are firmly tightened.
3
Installing the glass shade
WARNING: Do not overtighten when installing the glass shade
into the light kit. Allow the glass shade to cool completely before
removing.
Place the glass shade (H) into the light kit pan (F), aligning the
three flat areas on the top of the flange of the glass shade (H)
with the three raised dimples in the light kit pan (F). Turn the
shade clockwise until it stops.
11
Please contact 1-800-986-3460 for further assistance.
F
I
TT
H
HOMEDEPOT.COM/HOMEDECORATORS
