We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
USE AND CARE GUIDE

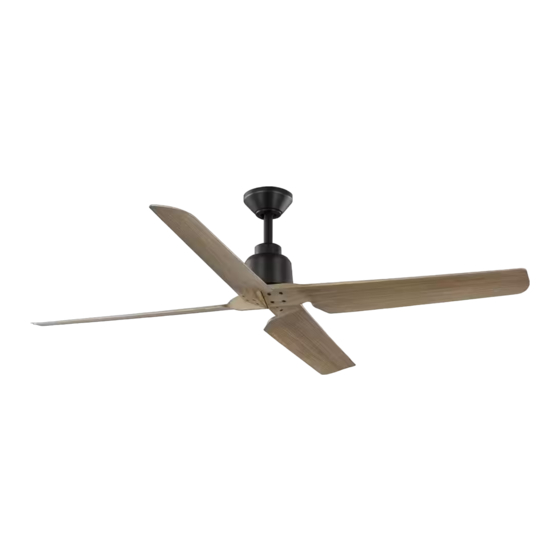

DELMORE 60-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search field.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
Item #xxxx xxx xxx
Model #56054
UL Model #60-ROSE
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection DELMORE 56054
Summary of Contents for Home Decorators Collection DELMORE 56054
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. -
Page 3: Warranty
“wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Wire connecting nut Hanger pin Locking pin Hex key...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Receiver (inside canopy) Remote control Ball/downrod assembly Battery Canopy 66 in. extension wire Decorative motor collar cover Fan motor assembly Blade IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped or personal injury, mount to an outlet box marked ceiling. The maximum angle allowable is 20° away from “Acceptable for fan support of 35 lb (15.9 kg) or less”, horizontal. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting □ Remove the magnetic canopy bottom cover (JJ) from the canopy (C) by pulling it off. □ Loosen the two canopy screws (HH) located in the bottom of the mounting bracket (A). □... - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical WARNING: To reduce the risk of fire, electric shock or personal injury, mount to an outlet box marked “Acceptable for fan support of 35 lb (15.9 kg) or less”, and use screws provided with the outlet box.
- Page 9 Assembly - Hanging the Fan (continued) Installing the receiver Black WARNING: To reduce the risk of fire or electric shock, remember to disconnect power. The electrical wiring White must meet all local and national electrical code Ground/Green requirements. The electrical source and fan must be 110/120 volts, 60Hz.
- Page 10 Assembly - Hanging the Fan (continued) Wiring the fan to the receiver Outlet box NOTE: The fan comes with 12 in. lead wires for use with the provided 6 in. ball/downrod assembly (B). If you wish to Green use a longer downrod, attach the 66 in. extension wire (J) to the fan by connecting the molded adaptor plugs from the extension wires to the adaptor plug from the fan.
- Page 11 Assembly - Attaching the Fan Blades Attaching the blade to the fan □ Attach the blade assembly to the motor assembly (E) by aligning the screw holes on the blade (F) with the screw holes on the bottom of the fan motor assembly (E). □...
- Page 12 Assembly - Attaching the Accessories Preparing the remote control NOTE: The remote control has already been paired to the ceiling fan for your convenience. If you have two of the same model fans in your home, please follow the steps below to control each fan independently.
-
Page 13: Operation
Operating Your Fan and Remote Control POWER ON/OFF Press and release the power button to turn the fan on or off. NOTE: On start up your ceiling fan will oscillate back and forth. Power This is NORMAL OPERATION for DC ceiling fans as it goes through its calibration cycle. -
Page 14: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 15 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
