Item #987 787
Model #26660
UL Model #60-ATO
USE AND CARE GUIDE

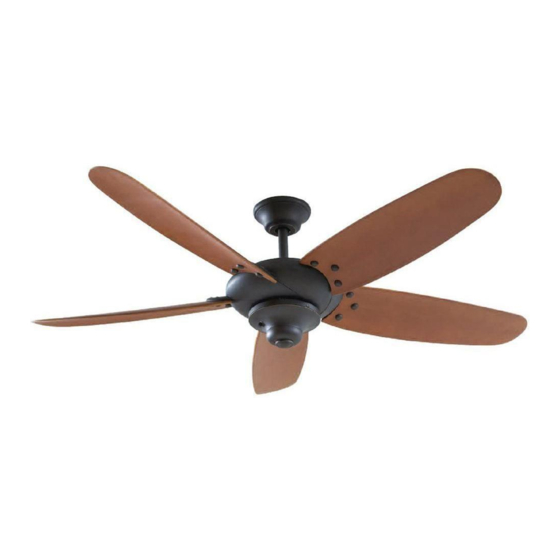

ALTURA 60-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Related Manuals for Home Decorators Collection ALTURA 60-ATO
Summary of Contents for Home Decorators Collection ALTURA 60-ATO
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as To reduce the risk of electric shock, ensure the electricity has... -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Plastic wire connecting nut Decorative nut...
- Page 5 Pre-installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Decorative motor collar cover (inside canopy) Blade Ball/downrod assembly Switch cup adaptor Canopy with canopy ring attached Wall control Fan-motor assembly Switch cup IMPORTANT: This product and/or components are governed by one or more of the following U.S.
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain WARNING: To reduce the risk of fire, electric shock proper blade clearance when installing on a steep, or personal injury, mount to outlet box marked sloped ceiling. The maximum angle allowable is 30° “Acceptable for fan support of 50 lbs. - Page 7 Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ □ Remove the canopy ring (L) from the canopy (C) by turning Route the wires exiting the top of the fan motor (D) into the ring counter-clockwise until it unlocks. the decorative motor collar cover (F) and through the □...
- Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical Hanging the fan □ WARNING: To reduce the risk of fire, electric shock or personal Carefully lift the fan motor assembly (D) up to the slide- injury, mount to outlet box marked “Acceptable for fan support on mounting bracket (A).
-
Page 9: Assembly
Assembly - Hanging the Fan (continued) Making the electrical connection (standard) WARNING: Each wire nut supplied with this fan is designed to accept up to one 12-gauge house wire and two wires from the fan. If you have larger than 12-gauge house wiring or more than one house wire to connect to the fan wiring, consult an Outlet box electrician for the proper size wire nuts to use. - Page 10 Assembly - Hanging the Fan (continued) Making the electrical connection (with light kit) WARNING: Each wire nut supplied with this fan is designed to BLUE (TO LIGHT) Outlet box accept up to one 12-gauge house wire and two wires from the BLACK (TO MOTOR L) in the ceiling BLACK (TO AC IN L)
- Page 11 Assembly - Hanging the Fan (continued) Wrapping the extra wire NOTE: Follow this step ONLY if you did not cut the extra length off from the wires coming from the ceiling fan. □ Gently wrap the excess wire around the mounting bracket. □...
- Page 12 Assembly - Attaching the accessories Attaching the switch cup adaptor □ Remove the three screws from the black bracket below the fan motor assembly (D). □ Align the holes in the switch cup adaptor (H) with the three holes in the black bracket. □...
- Page 13 Assembly - Installing the light kit (optional) Preparing the switch cup □ Remove the switch cup (E) from the ceiling fan by remove the three mounting screws (UU) and save them for later use. □ Hold the threaded retaining nut (JJ) with one hand and turn the bottom cover (GG) counterclockwise with the other.
- Page 14 Operating Your Fan and Wall Control Wall control installation Wall Control - Your fan is equipped with a wall control to operate the speed of your new ceiling fan. For more information on how to WARNING: To avoid possible electrical shock, be sure install the wall control, see the wall control instructions packaged electricity is turned off at the main fuse or circuit breaker with the wall control components.
-
Page 15: Care And Cleaning
Any measurement deviation should be within 1/8 in. Run the fan for ten minutes. If the fan continues to wobble please contact Home Decorators Collection Customer Service and a balancing kit will be sent to you at no charge. - Page 16 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
