Jacuzzi J16 POWER PRO Quick Start Manual

Seating Capacity.........................................
Dimensions..................................................
Useable Swim Area Dimensions..................
Dry Weight..................................................
Filled Weight (Spa Volume) ......................
Water Capacity (Spa Volume) ...................
Electronic Controls........................................
Pump 1...........................................................
Pump 2...........................................................
Pump 3...........................................................
Pump 4...........................................................
Total Seat Jets............................................
Seat A Jets............................................
Seat B Jets............................................
Seat C Jets.............................................
Seat D Jets..........................................
Massage Selectors........................................
Air Controls....................................................
Water Management System........................
LED Lighting.................................................
Synthetic Cabinet Colours............................
Acrylic Colours.............................................
Headrests.......................................................
Waterfalls.......................................................
Electrical Requirements...............................
Warranty.......................................................
Options/ Special Features..........................



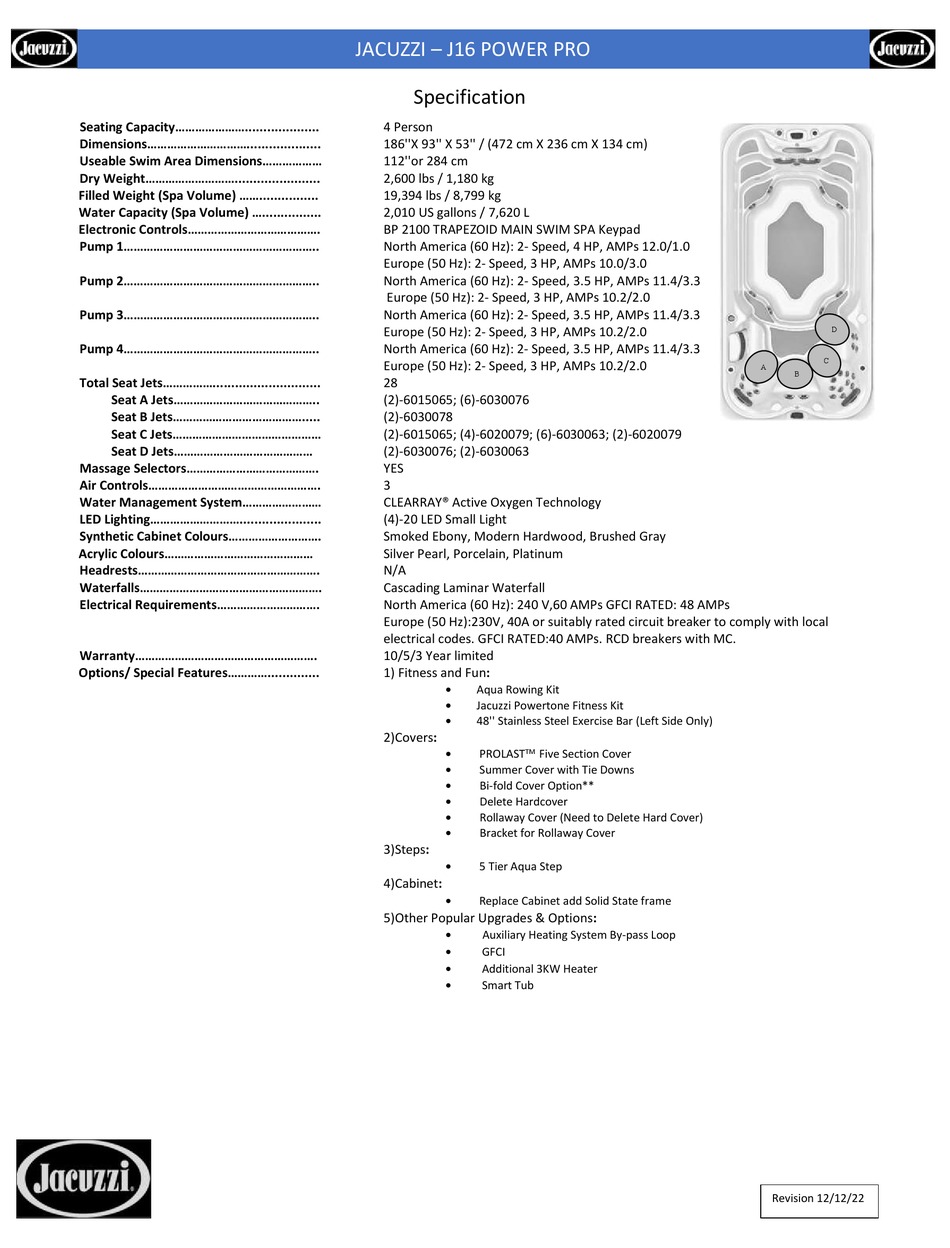

JACUZZI – J16 POWER PRO
Specification
4 Person
186''X 93'' X 53'' / (472 cm X 236 cm X 134 cm)
112''or 284 cm
2,600 lbs / 1,180 kg
19,394 lbs / 8,799 kg
2,010 US gallons / 7,620 L
BP 2100 TRAPEZOID MAIN SWIM SPA Keypad
North America (60 Hz): 2- Speed, 4 HP, AMPs 12.0/1.0
Europe (50 Hz): 2- Speed, 3 HP, AMPs 10.0/3.0
North America (60 Hz): 2- Speed, 3.5 HP, AMPs 11.4/3.3
Europe (50 Hz): 2- Speed, 3 HP, AMPs 10.2/2.0
North America (60 Hz): 2- Speed, 3.5 HP, AMPs 11.4/3.3
Europe (50 Hz): 2- Speed, 3 HP, AMPs 10.2/2.0
North America (60 Hz): 2- Speed, 3.5 HP, AMPs 11.4/3.3
Europe (50 Hz): 2- Speed, 3 HP, AMPs 10.2/2.0
28
(2)-6015065; (6)-6030076
(2)-6030078
(2)-6015065; (4)-6020079; (6)-6030063; (2)-6020079
(2)-6030076; (2)-6030063
YES
3
CLEARRAY® Active Oxygen Technology
(4)-20 LED Small Light
Smoked Ebony, Modern Hardwood, Brushed Gray
Silver Pearl, Porcelain, Platinum
N/A
Cascading Laminar Waterfall
North America (60 Hz): 240 V,60 AMPs GFCI RATED: 48 AMPs
Europe (50 Hz):230V, 40A or suitably rated circuit breaker to comply with local
electrical codes. GFCI RATED:40 AMPs. RCD breakers with MC.
10/5/3 Year limited
1) Fitness and Fun:
Aqua Rowing Kit

 Jacuzzi Powertone Fitness Kit
 48'' Stainless Steel Exercise Bar (Left Side Only)
2)Covers:
 PROLAST
TM
 Summer Cover with Tie Downs
 Bi-fold Cover Option**
Delete Hardcover

Rollaway Cover (Need to Delete Hard Cover)

 Bracket for Rollaway Cover
3)Steps:
5 Tier Aqua Step

4)Cabinet:

Replace Cabinet add Solid State frame

5)Other Popular Upgrades & Options:
 Auxiliary Heating System By-pass Loop
 GFCI 
 Additional 3KW Heater
Smart Tub
 
Five Section Cover
D
C
A
B
Revision 12/12/22
