Important：Read and follow all instructions and SAFETY PRECAUTIONS before using this equipment
The gun body of this model is finished with special coating. Do not use the wire brush or metal spatula for
cleaning. Do not inscribe letters on the gun body. It may cause peeling off the coating.
MODELS
JUPITER- R- Air Cap No. - Fluid Tip Size – Type of Feed (G：Gravity, S:Suction)
(Ex.)： JUPITER-R-J1 -1.2-G
SPECIFICATIONS
Maximum Working Air Pressure： 0.69 MPa,
Chart．1
Air Cap No.
Tip size(mm)
Part Number
1.0
1.1
1.2
○
○
○
J1
JUP-3-J1
○
○
○
J2
JUP-3-J2
PARTS LIST
Chart.2
Ref No.
Part Number Description
1 JUP-6
Retaining Ring
2 JUP-50-K5
Cap Seal Kit of 5s
3 JUP-55-K5
Ring Seal Kit of 5
4 See Chart.1
Air Cap
5 See Chart.3
See Chart.3
6 JUP-7
Baffle
7 JUP-8-K5
Gasket Kit of 5
8 SN-404-K
Packing, Spring & Packing Nut Kit
9 JUP-12
Body Bushing & Seal
10 JUP-72-K5
Body Bushing Gasket Kit of 5
11 See Chart.3
Needle
12 SN-409
Valve Spring and pad kit
13 JUP-13
Needle Adjusting Knob
14 JUP-44
Pattern Valve Assembly
15 JUP-43
Air Valve Assembly
16 SN-405J-K5 Trigger Stud & Hex Screw Kit of 5
17 JUP-108
Trigger
18 JUP-42
Cheater Valve
19 JUP-30
Air Connector
20 SN-26-K4
Color ID Ring Kit (4 Colors)
21 JUP-35G
Fluid Inlet (Gravity)
JUP-35S
Fluid Inlet (Suction)
22 JUP-39
Air Valve Cage
23 SN-34-K3
Air Valve Seal

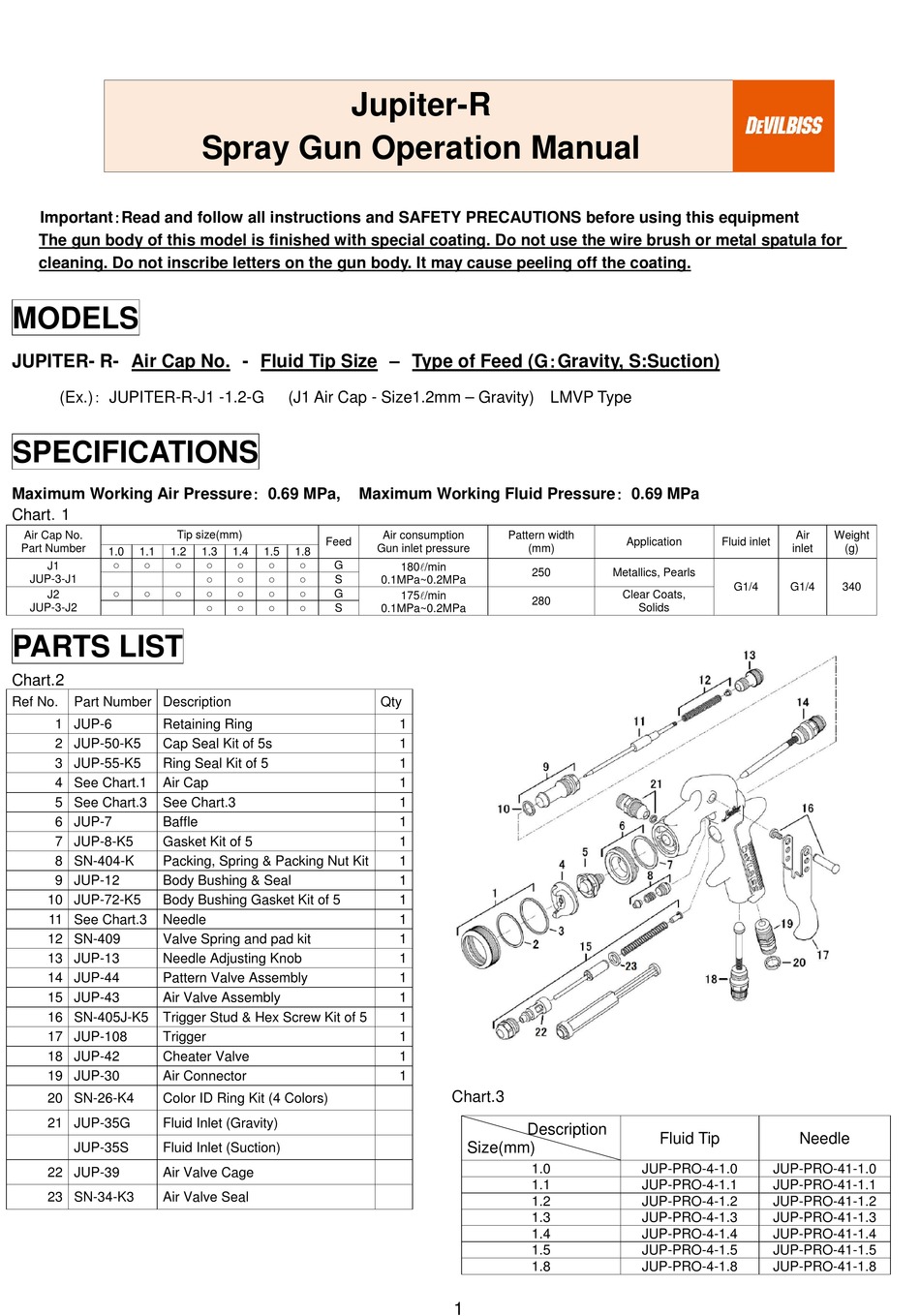

Jupiter-R
Spray Gun Operation Manual
(J1 Air Cap - Size1.2mm – Gravity) LMVP Type
Maximum Working Fluid Pressure： 0.69 MPa
Feed
1.3
1.4
1.5
1.8
○
○
○
○
G
○
○
○
○
S
○
○
○
○
G
○
○
○
○
S
Air consumption
Pattern width
Gun inlet pressure
(mm)
180/min
250
0.1MPa~0.2MPa
175/min
280
0.1MPa~0.2MPa
Qty
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Chart.3
Description
Size(mm)
1.0
1.1
1.2
1.3
1.4
1.5
1.8
1
Application
Fluid inlet
Metallics, Pearls
G1/4
Clear Coats,
Solids
Fluid Tip
JUP-PRO-4-1.0
JUP-PRO-41-1.0
JUP-PRO-4-1.1
JUP-PRO-41-1.1
JUP-PRO-4-1.2
JUP-PRO-41-1.2
JUP-PRO-4-1.3
JUP-PRO-41-1.3
JUP-PRO-4-1.4
JUP-PRO-41-1.4
JUP-PRO-4-1.5
JUP-PRO-41-1.5
JUP-PRO-4-1.8
JUP-PRO-41-1.8
Air
Weight
inlet
(g)
G1/4
340
Needle
