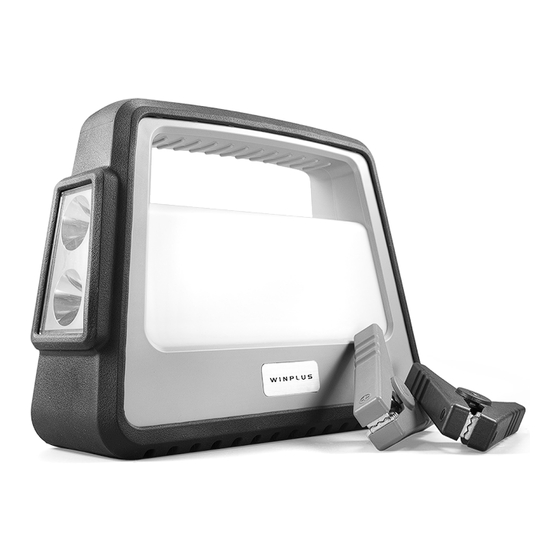

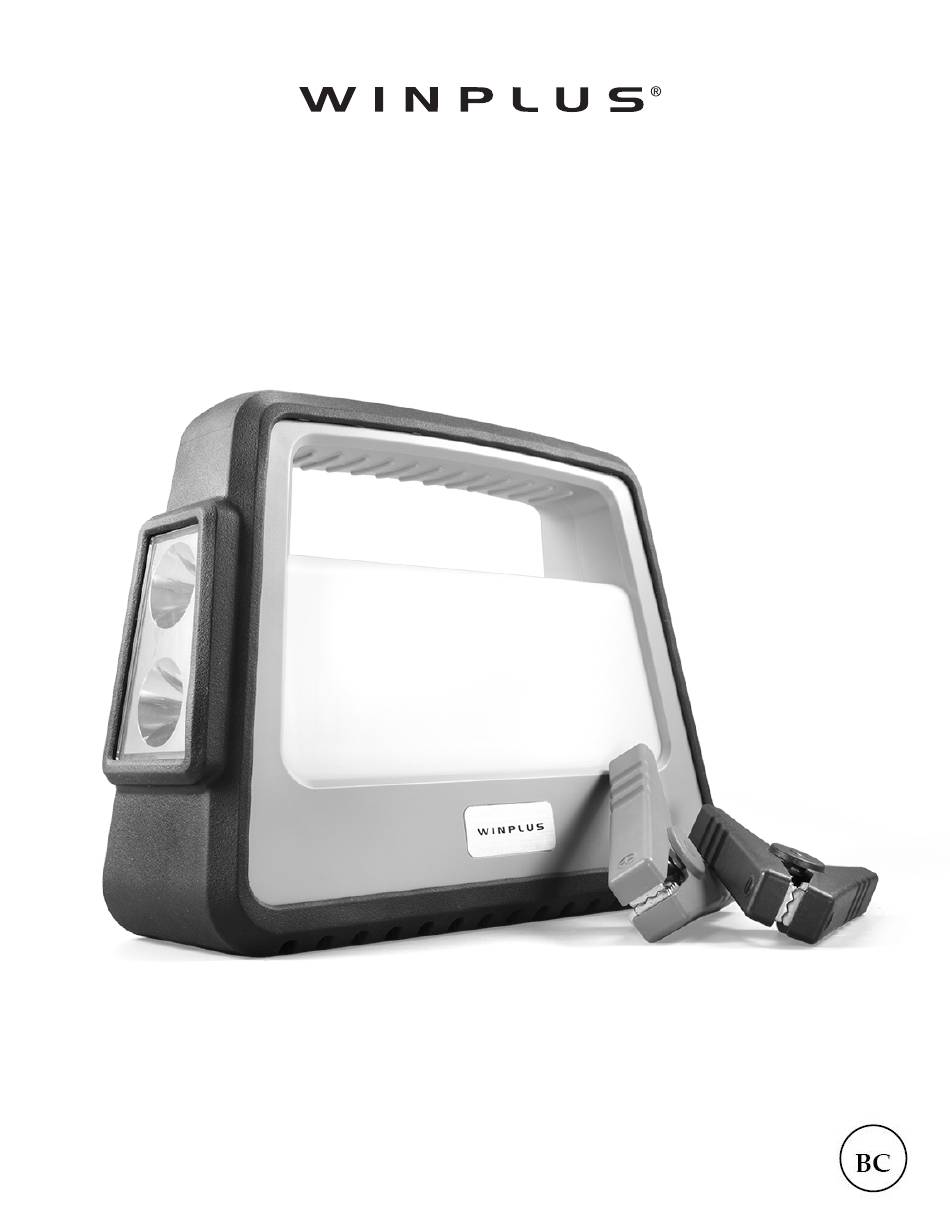

- Page 1 JUMP STARTER AC55717 User Manual...
-
Page 2: Package Contents
PACKAGE CONTENTS: Storage Case Jump Starter USB Cable and User Manual Car Adaptor Jumper Cable with Safe & Smart Protection... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS: Product Dimensions: 9.2 x 6.9 x 3.1 in (233 x 177 x 79 mm) Product Weight: 2.425 lbs (1100g) Internal Battery: Lithium-Ion Capacity: Up to 12000 mAh (3.7V) Input Voltage: 5V 2A/ 9V 1.7A via Car Adaptor USB Output Voltage: 5V (2.4A + 2.1A) Jump Start Current: 350A - 500A Operating Temperature: -4ºF ~ 104ºF (-20ºC ~ 40ºC) Storage Temperature:... -
Page 4: Charging The Jump Starter
POWER LEVEL INDICATOR LIGHTS: Press the power button to check the capacity of the Jump Starter. Indicator Lights: 1 Flashing 1 Solid 2 Solid 3 Solid 4 Solid Battery Capacity: Below 5% 5-25% 26-50% 51-76% 76% - Full When charging, the indicator lights will flash one by one. The number of solid lights indicates the battery capacity. - Page 5 CHARGING YOUR USB DEVICES: Use the original manufacturer’s USB cable that came with your device and plug into one of the USB output ports. You can charge two devices at the same time. One of the ports has a maximum output of 2.4A while the other has a maximum output of 2.1A.
-
Page 6: Jump Starting
LED FLASH MODE / HAZARD LIGHT a) Press the flash button once for the spotlight in front to flash. Press again for the spotlight and lantern light to flash. b) Press the hazard light button once to turn on the hazard light. JUMP STARTING: To jump start the 12-volt vehicle battery, put the vehicle in park (neutral if the vehicle has a manual... - Page 7 JUMP STARTING CONT.: Connect the clamp to the POSITIVE (+) post on the car battery. The POSITIVE battery post will be slightly larger than the NEGATIVE post, and will be marked with a PLUS (+) sign. There may also be a plastic protective cover over the positive battery post.
- Page 8 JUMP STARTING CONT.: You now have 30 seconds to start your vehicle before the jump starter times out to prevent the vehicle battery from reverse charging the unit. If it does not crank or cranks very slowly, wiggle the jumper connections to make sure they are making good contact.
- Page 9 The Jump Starter Pro may not work correctly for vehicles that require remote battery jumper locations (e.g.: battery located in trunk or other location). Please consult the owner’s manual for your vehicle.
- Page 10 For information regarding air travel safety with batteries please check the U.S. Department of Transportation prior to travel at: http://phmsa.dot.gov/ safetravel/batteries Note: The Jump Starter Pro contains the equivalent of 6.0g of lithium and gives 44.4 watt hours of power.
-
Page 11: Important Safety Instructions
WARNING CONT.: IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. - Page 12 WARNING CONT.: when you work near a lead-acid battery. 2) Have plenty of fresh water and soap nearby in case battery acid contacts skin, clothing, or eyes. 3) Wear complete eye protection and clothing protection. Avoid touching eyes while working with battery. 4) If battery acid contacts skin or clothing, wash immediately with soap and water.
-
Page 13: Conditions Of Warranty
Winplus North America warrants, to the original purchaser, that its products are free from defects in material and workmanship for 1 year from the date of original purchase. Where permitted by law, Winplus North America’s liability shall be limited to that set forth in this limited express warranty. -
Page 14: Owner's Responsibilities
Return Authorization and instruct on how to get a new unit. Winplus North America makes no other warranty of any kind aside from the limited express warranty stated herein. - Page 15 FCC Compliance Statement: Jump Starter Pro Model: AC55717 Responsible Party: Winplus North America Inc. 820 South Wanamaker Avenue, Ontario, CA 91761 Tel: 866-294-9244 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:...
-
Page 16: Troubleshooting
Plug the USB cable into computer or any USB cable 2A wall adaptor. Have a comment or question? Email us at: customercare@winplususa.com or visit us online at www.winplus.com 820 South Wanamaker Avenue, Ontario, CA 91761 | Tel: 866-294-9244 © 2018 Winplus North America Inc. All Rights Reserved. ML-55717_V3...
