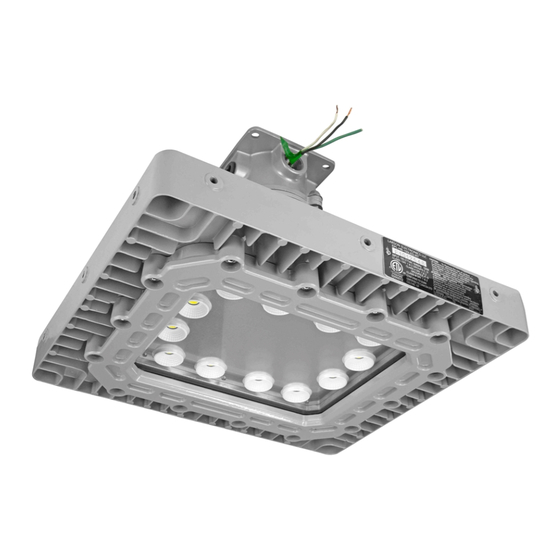

Larson Electronics EPL-HB-150LED-RT-NSF Instruction Manual

150W Explosion Proof Food Safe LED Light Fixture
C1D1/C2D1 - 17500 Lumens - No Exposed Glass
This explosion proof light is designed for illumination of industrial locations. It uses the latest in
solid state lighting technology for long life, low maintenance and high efficiency.
The unique design focuses the light where it is needed, giving improved efficiency over a
conventional HID luminaire.
This light fixture is shipped preconfigured to work in the selected voltage range. This includes 100-
277V AC 50/60hz or 11-25V AC/DC depending on model selected. An internal, universal input power-
factor-corrected switch allows it to be used from any voltage within range without variation in light
output. Check product label for correct input voltage!
WARNING
To avoid the risk of fire, explosion or electric shock, this product should be installed, inspected
and maintained by a qualified electrician only, in accordance with all applicable electrical codes.
To avoid electric shock:
•
Be certain electrical power is OFF before and during installation and maintenance.
•
Luminaire must be connected to a wiring system with an equipment-grounding conductor.
To avoid explosion:
•
Make sure the supply voltage is within the luminaires' voltage rating.
•
Ensure the marked T rating is less than the ignition temperature of the Hazardous
Atmosphere.
•
Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
•
Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.
For supply connections, use wire rated for at least 110°C
Recommended mounting height is 25-40 feet.

MOUNTING

This fixture offers an adjustable mounting system that allows it to be mounted to any flat surface
including walls and ceilings. A single ½-13 bolt is used to mount the fixture to the surface.
Check to ensure that all mounting hardware is included.
• 2 Small Brackets
• 1 Large Trunnion Bracket
• 8 Bolts
• 8 Lock-Washers
• 4 Nuts
Larson Electronics, LLC
Instruction Manual
Phone: (800) 369-6671 Fax: (903) 498-3364
EPL-HB-150LED-RT-NSF

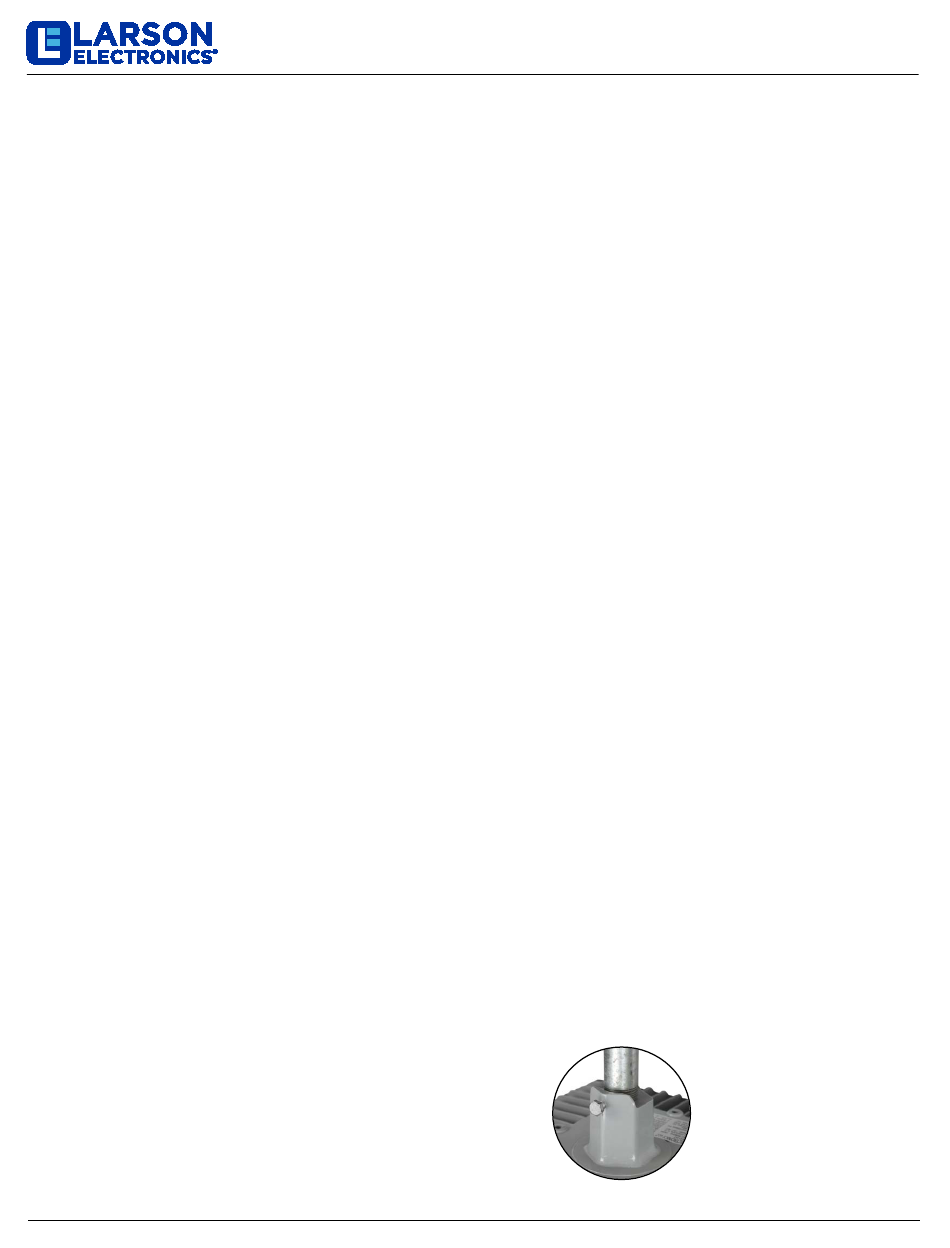

When pendant mounting,
thread cable
approved conduit
thread conduit to back of
fixture. Tighten set bolt
after at least 5 full threads.
www.larsonelectronics.com
through
and
1 of 2
