Larson Electronics EPL-HB-50LED-RT Instruction Manual

C1D1 Explosion Proof 50 Watt High Bay LED Light Fixture
Paint Spray Booth Approved - 4,333 Lumens
This explosion proof light is designed for illumination of industrial locations. It uses the latest in
solid state lighting technology for long life, low maintenance and high efficiency.
The unique design focuses the light where it is needed, giving improved efficiency over a
conventional HID luminaire.
An internal, universal input, power-factor-corrected switch-mode supply allows it to be used from any
nominal 100-277V AC 50/60 Hz or 11-25 Volts AC/DC power supply (depending on model) without
any variation in light output.
WARNING
To avoid the risk of fire, explosion or electric shock, this product should be installed, inspected
and maintained by a qualified electrician only, in accordance with all applicable electrical codes.
To avoid electric shock:
•
Be certain electrical power is OFF before and during installation and maintenance.
•
Luminaire must be connected to a wiring system with an equipment-grounding conductor.
To avoid explosion:
•
Make sure the supply voltage is within the luminaires' voltage rating.
•
Ensure the marked T rating is less than the ignition temperature of the Hazardous
Atmosphere.
•
Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
•
Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.
For supply connections, use wire rated for at least 110°C
Recommended mounting height is 25-40 feet.

MOUNTING

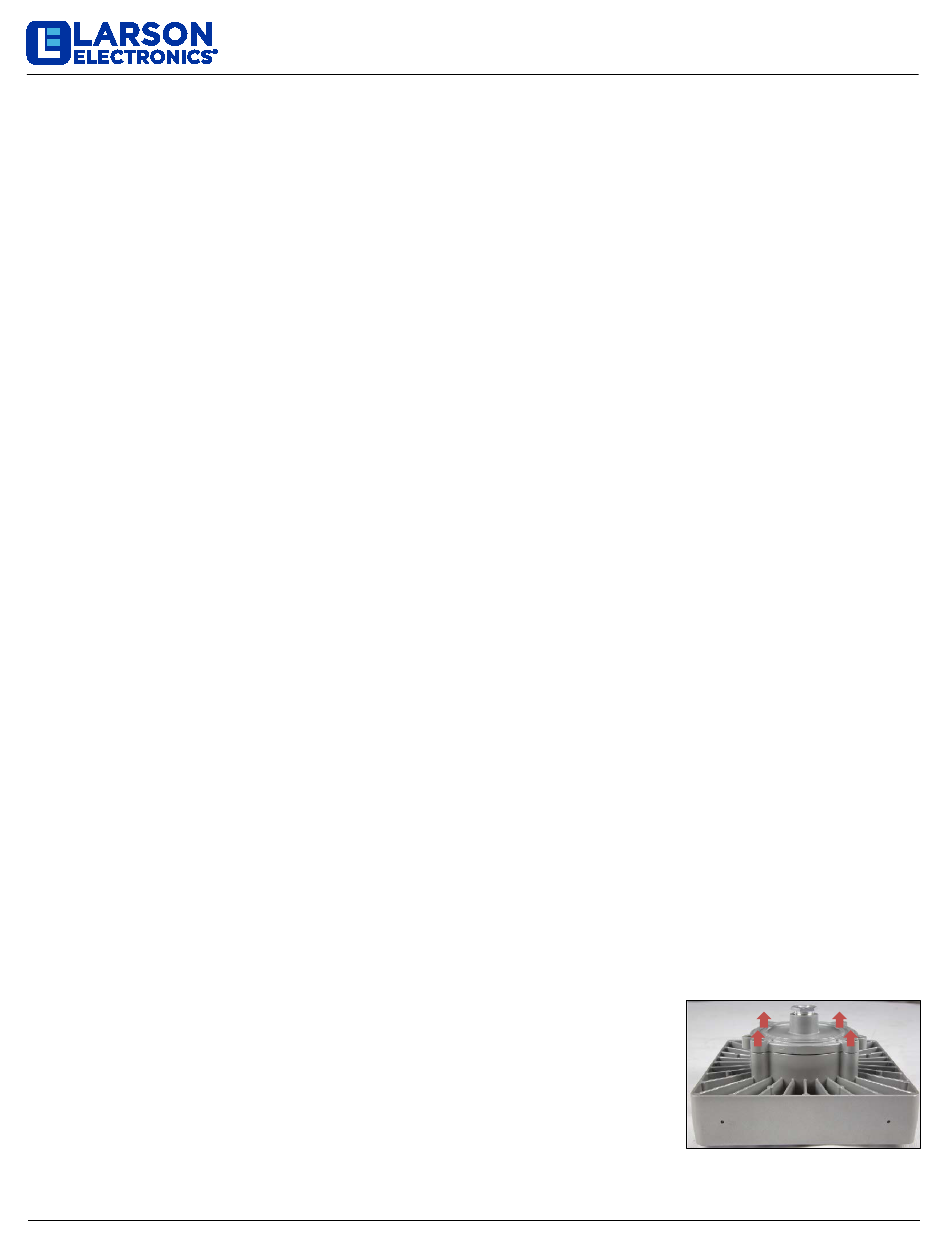

This fixture offers a variety of mounting options. Mounting options
include ceiling mounting, pendant mounting, wall mounting and cable
mounting. Each mount is interchangeable and can be switched easily
from back of light. Remove the back cover plate to reveal the driver and
line wires. Feed wires through back cover if not already and replace
cover plate. Thread cable and attach the mount to the back cover plate
utilizing the included hardware through the three (3) mounting holes on
the back. Once attached, fixture is ready to be mounted to the surface or
conduit.
