Summary of Contents for Hinkley HOVER FLUSH 900872FMB-LWD
Page 1

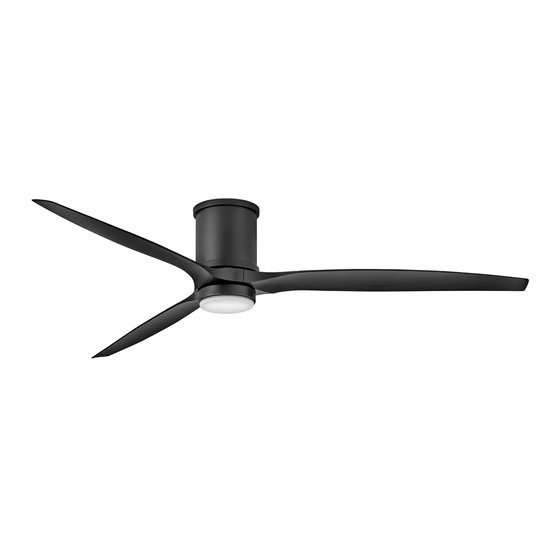

72" HOVER FLUSH ™ INDOOR / OUTDOOR LED FAN DC MOTOR CEILING FAN INSTRUCTION MANUAL...
Page 2
SO WE’RE HERE IF YOU HAVE A QUESTION, NEED SOME HELP OR WANT TO CHAT ABOUT OUR PRODUCTS. SEND SUGGESTIONS OUR WAY TOO—WE’RE ALWAYS LOOKING TO MAKE YOUR EXPERIENCE WITH HINKLEY A POSITIVE ONE. > SERVICE@HINKLEY.COM > 800.HINKLEY > LET’S SEE THAT HINKLEY STYLE @HINKLEY...
If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. | hinkley.com...
Blade to Motor Screws w/Lock MH900872Fxx Washers, Balance Kit, Safety cable hardware NOTE: Design of parts shown above may look slightly different for (wood screw, flat washer) your specific model of fan. XX=FAN FINISH | hinkley.com...
Firmly Safety cable clamp tighten screw in the clamp. Cut off excess cable. (Fig. 2) Safety cable loop You are now ready to make the electrical connections. Wood screw and washer Safety cable Fig. 2 | hinkley.com...
4 tabs on the decorative ring. Once lined up, slide the decorative ring and secure it to the top of the fan motor until snug. (Fig. 2) Mounting bracket Screws Fig. 1 Studs Decorative ring motor Fig. 2 hinkley.com...
Raise glass shade up against adapter plate and secure it Fig. 1 to the fan by turning the glass shade clockwise until snug. DO NOT OVERTIGHTEN. Restore power and your light kit is ready for operation. LED assembly Glass shade Fig. 2 | hinkley.com...
Page 14
Power lead to the fan is connected to the remaining switch lead. (Fig. 4) Attach the cradle A to the wall switch box using the supplied hardware. Attach the multi-gang faceplate to the switch set in the wall outlet box. Cradle A of Hinkley switch will fit in any standard decora face plate.
Page 16
An UPWARD airflow moves warmer air off the ceiling area as shown in Figure 4. This allows you to set your heating unit on a cooler setting without affecting your comfort. SUMMER MODE WINTER MODE (COUNTERCLOCKWISE DIRECTION) (CLOCKWISE DIRECTION) Fig. 3 Fig. 4 | hinkley.com...
• Your cost depends on rates and use • Energy Use: 19 Watts RPMs All estimates based on typical use, excluding lights ftc.gov/energy Airflow Shown Is a Weighted Average of High and Low Cubic Feet per Minute Based on Close to Ceiling | hinkley.com...
Wait 10 seconds. f) Hold down the Power button on the transmitter you wish to pair. In addition to the included wall control, you can control your Hinkley The fan light should flash three times and the motor spin up for fan through the Bond app.
Page 20
HINKLEY IS PROUD TO PROVIDE YOU WITH CEILING FAN PRODUCTS THAT ENHANCE YOUR SPACE WITH COMFORT, PURPOSE AND STYLE. AS A FAMILY COMPANY, WE ARE COMMITTED TO DESIGN, PERFORMANCE AND QUALITY, AND WHAT’S IMPORTANT TO YOU IS PARAMOUNT TO US.
Page 21
GLOBAL HEADQUARTERS 33000 Pin Oak Parkway | Avon Lake, Ohio 44012 T (440) 653 5500 | F (440) 653 5555 | hinkley.com...
