User's Guide

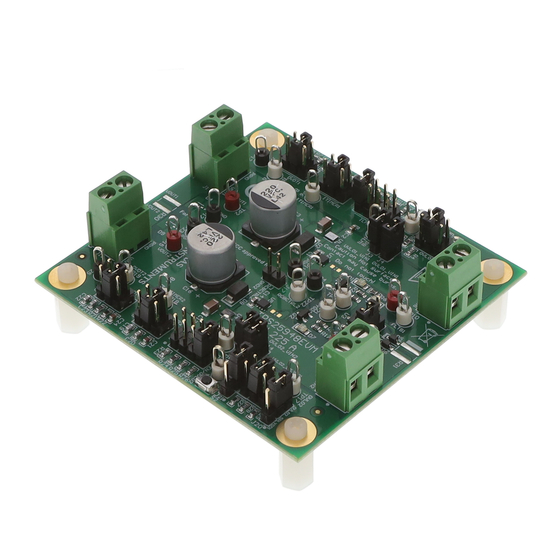

TPS25948EVM Evaluation Module for TPS25948 eFuse
This user's guide describes the evaluation module (EVM) for the TPS25948 eFuse. The TPS25948 device is
a 3.5-V to 23-V, 8-A eFuse with integrated 13-mΩ FET with reverse current protection, overcurrent protection,
inrush current protection, adjustable overcurrent transient blanking timer, and programmable undervoltage and
overvoltage protection.
TP1(VIN1), TP14(VIN2), TP2(VOUT1), TP15(VOUT2) are Kelvin-sense test points and not a good
choice for carrying high current. Do not apply power to these test points. Use connectors present on
EVM for applying power.
1
Introduction.............................................................................................................................................................................3
1.1 EVM Features....................................................................................................................................................................
1.2 EVM Applications...............................................................................................................................................................
2 Description..............................................................................................................................................................................
3
Schematic................................................................................................................................................................................4
Configurations..........................................................................................................................................................5
4.1 Physical Access.................................................................................................................................................................
4.2 Test Equipment and Setup.................................................................................................................................................
Procedures....................................................................................................................................................8
Test......................................................................................................................................................................9
Test...............................................................................................................................................................10
Test.......................................................................................................................................................11
5.4 Wakeup into Short Test....................................................................................................................................................
5.5 Overvoltage Test..............................................................................................................................................................
5.6 Priority Power Mux Test...................................................................................................................................................
6 EVAL Board Assembly Drawings and Layout Guidelines................................................................................................
Drawings..................................................................................................................................................................15
(BOM).........................................................................................................................................................17
8 Revision History...................................................................................................................................................................
Figure 3-1. TPS25948EVM eFuse Evaluation Board Schematic................................................................................................
Figure 5-1. TPS25948EVM Setup with Test Equipment..............................................................................................................
Figure 5-2. TPS25948 Output Rise Profile (VIN = 12 V, Cout = 220 µF, CdVdT = OPEN, R
536
Ω......................................................................................................................................................................................12
Figure 5-7. Priority PowerMux Test on
SLVUCK4A - MARCH 2023 - REVISED JULY 2023
Submit Document Feedback
ABSTRACT
Caution
Note
Table of Contents
List of Figures
Device...................................................................................13
TPS25948.....................................................................................................................14
Assembly..............................................................................15
Copyright © 2023 Texas Instruments Incorporated
Hot surface.
Contact can cause burns.
Do not touch!
= 536 Ω, No Load)...................
Setting.........................................................................10
ILM
TPS25948EVM Evaluation Module for TPS25948 eFuse
Table of Contents
3
3
3
5
7
12
13
14
15
20
4
8
9
= 536
Ω..........................11
=
ILM
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPS25948EVM
Summary of Contents for Texas Instruments TPS25948EVM
-
Page 1: Table Of Contents
Figure 5-6. Overvoltage Protection Response of the TPS25948 Device...................13 Figure 5-7. Priority PowerMux Test on TPS25948........................14 Figure 6-1. TPS25948EVM Board (a) Top Assembly (b) Bottom Assembly................15 SLVUCK4A – MARCH 2023 – REVISED JULY 2023 TPS25948EVM Evaluation Module for TPS25948 eFuse Submit Document Feedback Copyright ©... - Page 2 Trademarks www.ti.com Figure 6-2. TPS25948EVM Board (a) Top Layer (b) Bottom Layer................... List of Tables Table 2-1. TPS25948EVM eFuse Evaluation Board Options and Setting................... Table 4-1. Input and Output Connector Functionality........................Table 4-2. Test Points Description............................... Table 4-3. Jumper Descriptions and Default Positions........................
-
Page 3: Introduction
Adapter and charger input protection 2 Description The TPS25948EVM eFuse evaluation board has two channels and enables evaluation of TPS259480A and TPS259482L eFuses from TPS25948 family. Channels 1 and 2 share a common ground plane and provide option to evaluate power muxing and paralleling capabilities of TPS25948 eFuse. The channels provide programmable OVLO, ITIMER, dVdt, and ILM settings. -
Page 4: Schematic
Schematic www.ti.com 3 Schematic Figure 3-1 illustrates the EVM schematic. Figure 3-1. TPS25948EVM eFuse Evaluation Board Schematic TPS25948EVM Evaluation Module for TPS25948 eFuse SLVUCK4A – MARCH 2023 – REVISED JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 5: General Configurations
General Configurations 4 General Configurations 4.1 Physical Access Table 4-1 lists the TPS25948EVM eFuse evaluation board input and output connector functionality. Table 4-2 Table 4-3 describe the test point availability and the jumper functionality. Table 4-4 describes the function of signal LEDs. -
Page 6: Table 4-3. Jumper Descriptions And Default Positions
2-3 position connects onboard generated voltage, VCC as CH-1,2 reference for digital signals of U1 and U2 TPS25948EVM Evaluation Module for TPS25948 eFuse SLVUCK4A – MARCH 2023 – REVISED JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 7: Test Equipment And Setup
One resistive load or equivalent that can tolerate up to 8-A DC load at 23 V and capable of the output short. SLVUCK4A – MARCH 2023 – REVISED JULY 2023 TPS25948EVM Evaluation Module for TPS25948 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... -
Page 8: Test Setup And Procedures
Test Setup and Procedures www.ti.com 5 Test Setup and Procedures In this user's guide section, the test procedure is described for TPS25948EVM testing. Make sure the evaluation board has default jumper settings as shown in Table 5-1. Table 5-1. Default Jumper Setting for TPS25948EVM eFuse Evaluation Board... -
Page 9: Hot-Plug Test
12 V. Figure 5-2 shows an example of inrush current captured on the TPS25948EVM eFuse evaluation board. Figure 5-2. TPS25948 Output Rise Profile (VIN = 12 V, Cout = 220 µF, CdVdT = OPEN, R = 536 Ω, No... -
Page 10: Overcurrent Test
5. The device allows the overload current for the programmed ITIMER period and then starts limiting current. Figure 5-3 shows an example of the circuit breaker test on the TPS25948EVM. Figure 5-3. Overcurrent Response of TPS25948 for 9-A Current Limit Setting TPS25948EVM Evaluation Module for TPS25948 eFuse SLVUCK4A –... -
Page 11: Output Hot-Short Test
3. Observe the waveforms using an oscilloscope. Figure 5-4 shows test waveform of output Hot-short on the TPS25948EVM eFuse evaluation board. Figure 5-4. Output Hot-Short Response of the TPS25948 Device at Vin = 12 V, Cout = Open, R = 536 Ω... -
Page 12: Wakeup Into Short Test
3. Turn ON the power supply. Figure 5-5 shows test waveform of wakeup into output short on the TPS25948EVM eFuse evaluation board. Figure 5-5. Test Waveform of Wakeup Into Output Short for the TPS25948 Device at Vin = 12 V, Cout = Open, R = 536 Ω... -
Page 13: Overvoltage Test
4. Increase the input supply VIN from 12 V to 15 V and observe the waveforms using an oscilloscope. Figure 5-6 shows overvoltage response of TPS25948 on the TPS25948EVM eFuse evaluation board. Figure 5-6. Overvoltage Protection Response of the TPS25948 Device SLVUCK4A –... -
Page 14: Priority Power Mux Test
Test Waveform of PowerMux configuration when primary voltage = 12 V, secondary voltage = 20 V, and output transitioning from primary to secondary voltage as primary loses power. Figure 5-7. Priority PowerMux Test on TPS25948 TPS25948EVM Evaluation Module for TPS25948 eFuse SLVUCK4A – MARCH 2023 – REVISED JULY 2023 Submit Document Feedback... -
Page 15: Eval Board Assembly Drawings And Layout Guidelines
EVAL Board. Figure 6-2 shows PCB layout images. Figure 6-1. TPS25948EVM Board (a) Top Assembly (b) Bottom Assembly SLVUCK4A – MARCH 2023 – REVISED JULY 2023 TPS25948EVM Evaluation Module for TPS25948 eFuse Submit Document Feedback... - Page 16 EVAL Board Assembly Drawings and Layout Guidelines www.ti.com Figure 6-2. TPS25948EVM Board (a) Top Layer (b) Bottom Layer TPS25948EVM Evaluation Module for TPS25948 eFuse SLVUCK4A – MARCH 2023 – REVISED JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 17: Bill Of Materials (Bom)
Standoff, Hex, 0.5"L #4-40 Nylon Standoff 1902C Keystone J1, J2, J11, J12 Terminal Block, 2x1, 5.08mm, TH 10.16x15.2x9mm 282841-2 TE Connectivity SLVUCK4A – MARCH 2023 – REVISED JULY 2023 TPS25948EVM Evaluation Module for TPS25948 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated... - Page 18 J3, SH-J4, SH-J5, Shunt Solutions SH-J6, SH-J8, SH- J9, SH-J10, SH- J11, SH-J12, SH- J13, SH-J14, SH- J15, SH-J16 TPS25948EVM Evaluation Module for TPS25948 eFuse SLVUCK4A – MARCH 2023 – REVISED JULY 2023 Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
- Page 19 0 Ohms Jumper Chip Resistor Wide 1218 RC1218JK-070RL Yageo 1812 (4532 Metric), 1218 Moisture Resistant Thick Film SLVUCK4A – MARCH 2023 – REVISED JULY 2023 TPS25948EVM Evaluation Module for TPS25948 eFuse Submit Document Feedback Copyright © 2023 Texas Instruments Incorporated...
-
Page 20: Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version. Changes from Revision * (March 2023) to Revision A (July 2023) Page • Changed schematic............................• Changed TPS25948EVM Setup with Test Equipment image................8 • Changed Figure 6-1 Figure 6-2 ........................ - Page 21 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
