Summary of Contents for saunalife E Mood E6

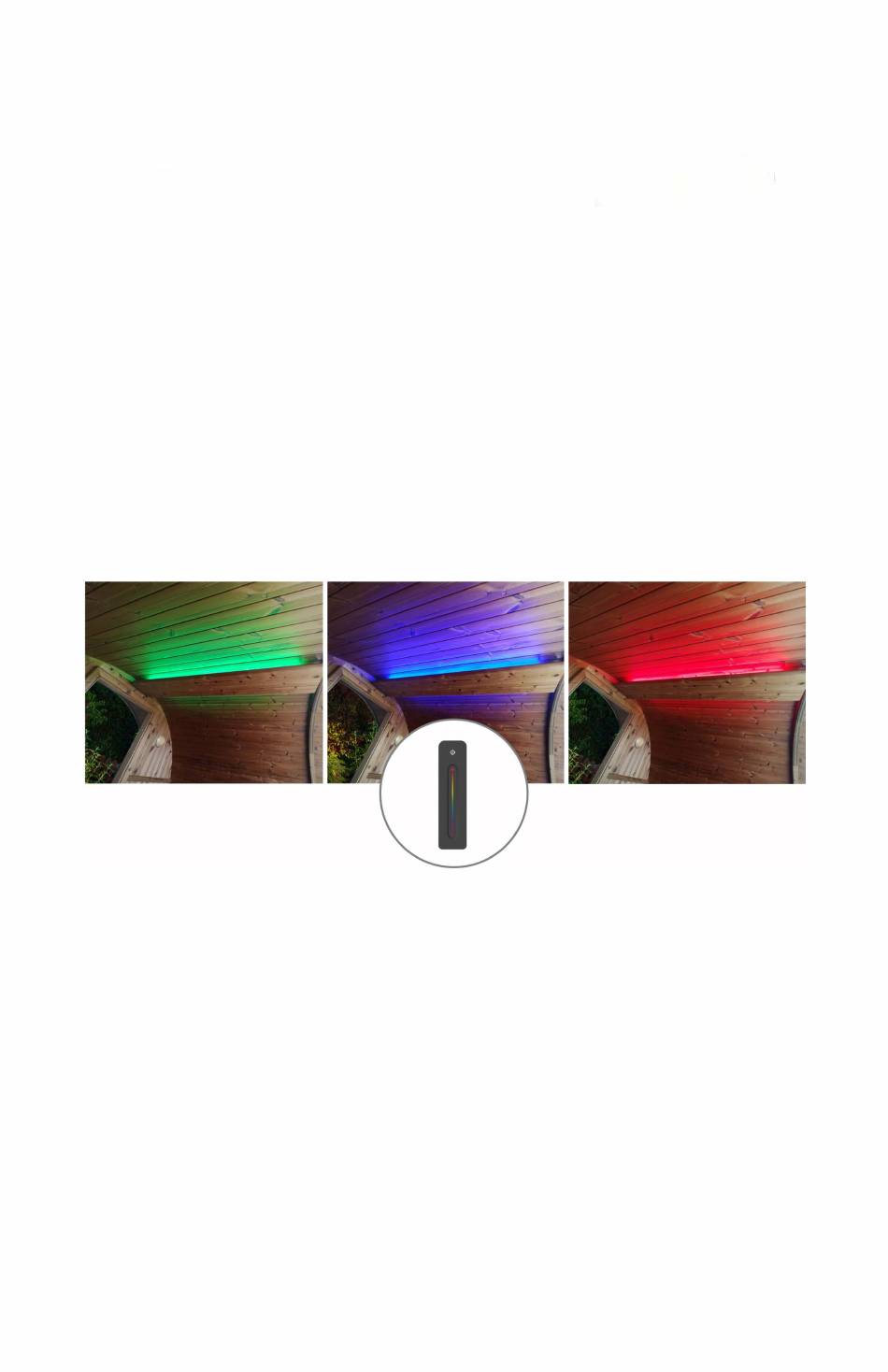

- Page 1 @saunalife E Mood E6/E7 /ES Installation Manual Mood RGB Light...
- Page 2 LED Lightbar Package Contents: RF Driver/Receiver Power Supply RGB Remote (qty. 1) (qty. 1) (qty. 1) 4-Pin 30’ Cable AC Power Cable (qty. 1) (qty. 1) RGB Led Mood Light (qty. 1)
- Page 3 Installation Recommendations Please read this manual in its entirety prior to installation and keep it somewhere accessible for future reference. The RF Driver and Power Supply may be installed outdoors but must be IMPORTANT protected from rain and snow. RF Driver and Power Supply should be installed in a waterproof electrical enclosure.
- Page 4 STEP 1. Mount RF Driver / Receiver Using 2 screws mount RF driver to desired surface. Driver should be mounted in a dry accessible location for service. Note: Do not install within 20” of sauna heater and a maximum of 20” off floor. STEP 2.
- Page 5 STEP 3. Install Mood Light Take Mood light fixture and two screws, lift fixture to ceiling ensuring that it’s centered within the room. Drive two screws, one on each end securing fixture to ceiling of barrel. Take 4-Pin cable and connect to pigtail off Mood light. STEP 4.
- Page 6 STEP 6. RGB Control Installation Take holder and separate back mounting plate from holder. At mounting location, screw mounting plate to surface. Slide holder from top down onto mounting the plate.
-
Page 7: Control Operation
STEP 7. Startup & Testing • Verify that all connections are secure and complete before proceeding. • Ensure DC-out end of Power Supply is plugged into DC-in of the Driver. • Plug AC power cable from the Power Supply into a 120V AC electrical outlet. •... - Page 8 Wi-Fi Setup To set up Wi-Fi operation follow the steps On IOS or Android down- below load the Tuya Smart App Note: Wi-Fi Driver supports 802.11 b / g / n 2.4 GHz Wi-Fi standard. The Wi-Fi Driver Step 1 Step 2 Step 3 Step 4...
-
Page 9: Specifications
Specifications RF Driver/Receiver Power Supply Operating Voltage: 24V DC Input Voltage: 120VA C Rated Out Current: 5CH, 3A/CH Output Voltage: 24V DC Output Voltage: 12-24V DC Rated Power: Max Output Power: 5Ch X 72W AC Current: 1.3A Operating Temp: -22°F - 131°F DC Current: 3.75A Dimensions:... -
Page 10: Troubleshooting
Troubleshooting No Power • Verify that the electrical outlet has voltage. • Check that connections on Power Supply are secure. • Check that the DC barrel plug connection on the Power Supply is secure. Power but lights not turning on •... - Page 11 Notes:...
- Page 12 © 2023 Bathing Brands, Inc. REV: 07/2023...
