Summary of Contents for saunalife BP031085

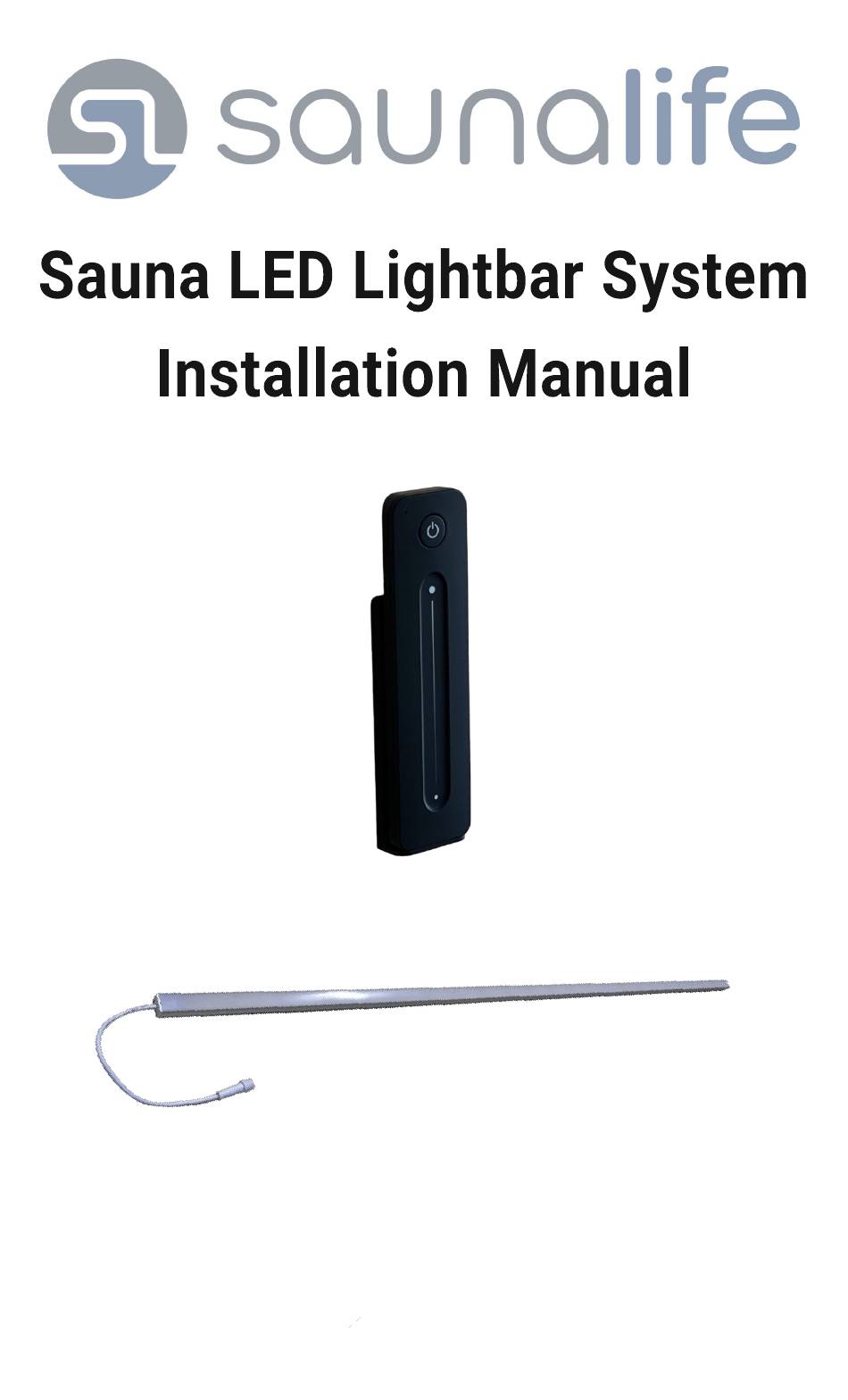

- Page 1 W h i t e L E D L i g h t b a r...
- Page 2 LED Lightbar Package Contents: RF Driver / Receiver Power Supply Dimming Remote (qty. 1) (qty. 1) (qty. 1) 2-Pin 4-Way Cable 2-Pin 30’ Cable AC Power Cable (qty. 1) (qty. 1) (qty. 1) Adjustable Mounting Clips Stationary Mounting Clips (qty. 3) (qty.
- Page 3 Installation Recommendations Please read this manual in its entirety prior to installation. The RF Driver and Power Supply may be installed outdoors but must be pro- IMPORTANT tected from rain and snow. RF Driver and Power Supply should be installed in a waterproof electrical enclosure.
- Page 4 STEP 1. Mount RF Driver / Receiver Using 2 screws mount RF driver to desired surface. Driver should be mounted in a dry accessible location for service. Note: Do not install within 20” of sauna heater and a maximum of 20” off floor.
- Page 5 STEP 2. Connect 2-Pin 4-Way Cable Locate 2-Pin 4-way cable and connect single end to 2-Pin Pigtail of Driver.
- Page 6 STEP 3. Run 2-Pin 30’ Cable Run 2-Pin 30’ light cable from Driver to LED light bar. At Driver connect to one of the 4 leads on 2-Pin 4-Way cable Note: Repeat this step if installing more than one light.
- Page 7 STEP 4. Install Mounting Brackets & LED Light Bar Determine the location where LED light will be installed. Screw Mounting Clips to surface ensuring even coverage of light fixture. Carefully snap LED light bar into each clip. Backrest installation shown in images below using stationary clips.
- Page 8 STEP 5. Connect 2-Pin 30’ Cable to Light Bar Connect light cable end to lead off light bar. Note: Repeat this step if installing more than one light.
- Page 9 STEP 6. Install Power Supply Connect AC power cord cable to power supply block. Place power supply near RF driver. Connect DC cable end from power supply and connect into RF driver DC IN port.
- Page 10 STEP 7. Dimming Control Installation RF Remote includes a wall mount holder for storing. Take holder and separate back mounting plate from holder. At mounting location screw mounting plate to surface. Slide holder from top down onto mounting the plate.
-
Page 11: Control Operation
STEP 8. Startup & Testing • Verify that all connections are secure and complete before proceeding. • Ensure DC-out end of Power Supply is plugged into DC-in of the Driver. • Plug AC power cable from the Power Supply into a 120V AC electrical outlet. •... - Page 12 Wi-Fi Setup To set up Wi-Fi operation follow the steps below On IOS or Android down- Note: Wi-Fi Driver supports 802.11 b / g / n load the Tuya Smart App 2.4 GHz Wi-Fi standard. The Wi-Fi Driver will not connect with 5 GHz network Step 1 Step 2 Step 3...
-
Page 13: Specifications
PART NUM- Operating Max Watt- Dimensions Lumens (with adjusta- Voltage (VDC) (with flush clips) ble clips) BP031085 3/4W x 9/16H x 3/4W x 1-1/4H x 24V DC 11.32W 1,246 LED White BP031086 3/4W x 9/16H x 3/4W x 1-1/4H x 24V DC 14.27W... -
Page 14: Troubleshooting
Note: Resetting Driver will clear any paired remotes and require repairing. Replacement Parts Description Part Number Driver BP031108 Power Supply/90W BP031137 RF Control Single-Zone BP031111 4-Way IP67 2-PIN Splitter BP031075 2-PIN IP67 Pigtail BP031073 48” White Light Bar BP031085 60” White Light Bar BP031086... - Page 15 Notes:...
- Page 16 T e c h n i c a l S u p p o r t ( 2 2 4 ) 2 5 3 - 5 9 0 9 © 2023 Bathing Brands, Inc. REV: 03272023...
