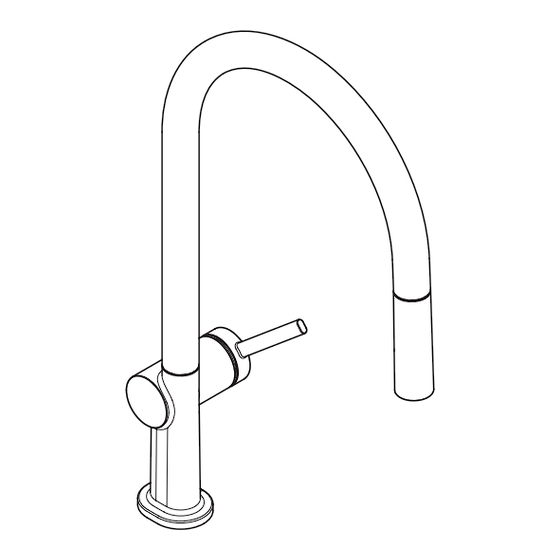

Hans Grohe Talis M54 210 2jet 72800 7 Series Instructions For Use/Assembly Instructions
Hide thumbs
Also See for Talis M54 210 2jet 72800 7 Series:
- Instructions for use/assembly instructions (49 pages) ,
- Instructions for use/assembly instructions (16 pages) ,
- Instructions for use/assembly instructions (48 pages)
Related Manuals for Hans Grohe Talis M54 210 2jet 72800 7 Series
Summary of Contents for Hans Grohe Talis M54 210 2jet 72800 7 Series
- Page 1 ZH 用户手册 / 组装说明 EN Instructions for use / Assembly instructions Talis M54 210 2jet 72800XX7 Talis M54 210 1jet 72802XX7 Talis M54 270 1jet 72808XX7...
- Page 2 中文 调节 (参见第页 10) 安全技巧 装配时为避免挤压和切割受伤, 必须戴上手套. 热水温度调节. 如果使用即热式喷头, 则不建议安 冷热水管间过大的压力差必须予以平衡. 装热水阀门. 保养 (参见第页 16) 安装提示 • 安装前必须检查产品是否受到运输损害. 安装后 单向阀必须在符合国家或当地的法律的情况下按照 将不认可运输损害或表面损伤. EN 806-5定期检查 (至少一年一次). • 管道和阀门必须根据通用标准进行安装, 冲洗和 大小 (参见第页 11) 检查. • 请遵守当地国家现行的安装规定. 流量示意图 (参见第页 11) 技术参数 备用零件 (参见第页 17) 1 MPa 工作压强: 最大 0,1 - 0,5 MPa 推荐工作压强: XX = 颜色代码 1,6 MPa 测试压强: 00 = 镀铬 (1 MPa = 10 bar = 147 PSI) 67 = Matt Black 60°C 热水温度: 最大...
-
Page 3: Installation Instructions
English Adjustment (see page 10) Safety Notes Gloves should be worn during installation to prevent To adjust the hot water limiter. Using a hot water limiter in combination with a continuous flow water heater is not crushing and cutting injuries. The hot and cold supplies must be of equal pressures. recommended. Maintenance (see page 16) Installation Instructions • Prior to installation, inspect the product for transport The check valves must be checked regularly according to damages. After it has been installed, no transport or EN 806-5 in accordance with national or regional surface damage will be honoured. regulations (at least once a year). • The pipes and the fixture must be installed, flushed Dimensions (see page 11) and tested as per the applicable standards. • The plumbing codes applicable in the respective Flow diagram (see page 11) countries must be observed. Spare parts (see page 17) Technical Data Operating pressure: max. 1 MPa XX = Colors Recommended operating pressure: 0,1 - 0,5 MPa 00 = Chrome Plated... - Page 4 (3 Nm) SW 9 mm SW 24 mm (4 Nm) SW 19 mm (4 Nm) 150° 110° 60°...
- Page 5 150° 75° 75° 24 x 15° 105° 45° 105° 45°...
- Page 6 110° 55° 55° 110° 24 x 15° 85° 25° 85° 25°...
- Page 7 60° 60° 24 x 15° 30° 30° 45° 15°...
- Page 8 Armaturenfett Grease 滑油...
- Page 9 CLICK > 2 min...
- Page 10 60 °C 10 °C 0,3 MPa SW 2,5 mm 50°C 43°C 55°C 38°C 60°C 36°C SW 2,5 mm (3,5 Nm)
- Page 11 Talis M54 210 2jet 72800XX7 2 3 6 2 2 3 Ø 2 5 Ø 3 4 G 3 / 8 G1/2 Talis M54 210 2jet 72800XX7 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 Q = l/min 9 12 15 18 21 24 27 30 Q = l/sec...
- Page 12 Talis M54 210 1jet 72802XX7 2 3 6 2 2 3 Ø 2 5 Ø 3 4 G 3 / 8 G1/2 Talis M54 210 1jet 72802XX7 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 9 12 15 18 21 24 27 30 Q = l/min Q = l/sec...
- Page 13 Talis M54 270 1jet 72808XX7 2 2 9 Ø 2 5 Ø 3 4 G 3 / 8 G1/2 Talis M54 270 1jet 72808XX7 0,60 0,55 0,50 0,45 0,40 0,35 0,30 0,25 0,20 0,15 0,10 0,05 0,00 Q = l/min 9 12 15 18 21 24 27 30 Q = l/sec...
- Page 14 • • • • • Hansgrohe , Hansgrohe • • www.hansgrohe-int.com/guarantee. • • QuickClean QuickClean, • • QUICK CLEAN...
-
Page 15: Warranty
English • After cleaning rinse thoroughly with clean water to Cleaning Recommendation for Hans- remove any cleaner residue. grohe Products • The use of steam cleaners is not permitted. The high Today, modern sanitary and kitchen tapware, showers, temperatures can damage the products. accessories, washstands, tubs and radiators consist of Important very different materials to comply with the needs of the... - Page 17 Talis M54 210 2jet 72800XX7 93739XX0 93737XX0 98433000 98112000 (30x1,5) (8x2) 93736XX0 98391000 (29x2) 98446000 94911000 93735610 98516000 (60°/110°/150°) 93738000 96456000 98365000 93740000 98426000 (19x2) 98197000 93742XX0 (20x1,5) 93743000 95910000 98052000 (36x3) 97523000 98422000 (7x1,5) 97548000 93019000 93744000 (6,6x1,6) (300 mm) 93253000 93746000 (900 mm)
- Page 18 Talis M54 210 1jet 72802XX7 93737XX0 93739XX0 98433000 98112000 (30x1,5) (8x2) 93736XX0 98391000 (29x2) 98446000 94911000 93735610 (60°/110°/150°) 98516000 93738000 98365000 96456000 93740000 98426000 (19x2) 98197000 93747XX7 (20x1,5) 93833000 95158000 98052000 (36x3) 97523000 98422000 (7x1,5) 97548000 93019000 93744000 (6,6x1,6) (300 mm) 93253000 93746000 (900 mm)
- Page 19 Talis M54 270 1jet 72808XX7 98112000 (8x2) 96456000 93752XX0 93749XX0 98516000 93737XX0 94911000 98433000 (60°/110°/150°) (30x1,5) 98365000 93736XX0 98391000 (29x2) 98426000 93750000 98446000 (19x2) 93735610 98197000 93738000 (20x1,5) 93753000 93740000 98052000 (36x3) 97523000 98422000 (7x1,5) 97548000 93019000 (6,6x1,6) 93744000 93253000 (300 mm) 93746000 (900 mm)
- Page 20 Talis M54 210 2jet 72800XX7 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon +49 (0) 78 36/51-1282 · Telefax +49 (0) 7836/511440 E-Mail: info@hansgrohe.com · Internet: www.hansgrohe.com...
