Summary of Contents for Hans Grohe Locarno 110 04810 0 Series

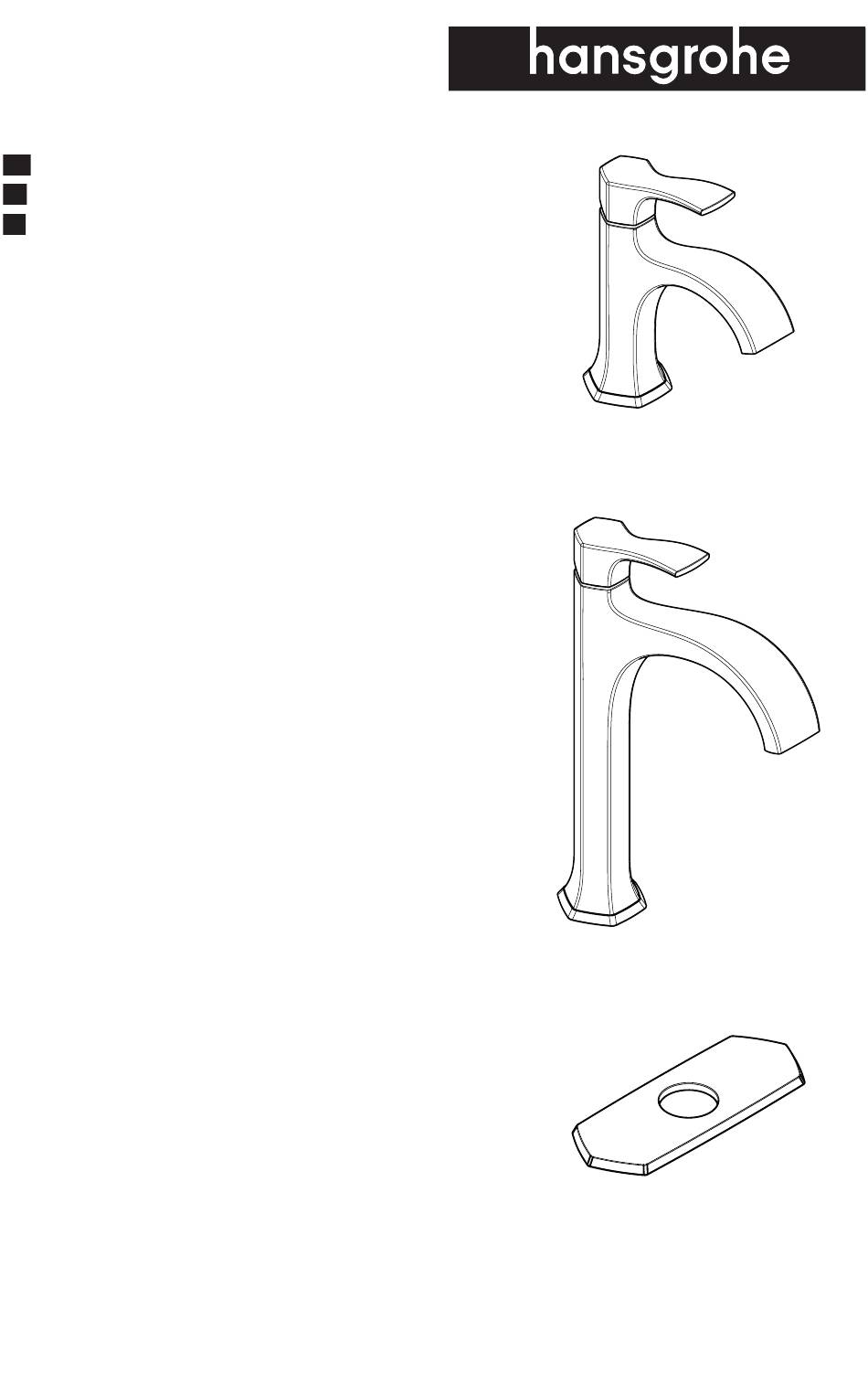

- Page 1 EN Installation / User Instructions / Warranty FR Instructions de montage / Mode d'emploi / Garantie ES Instrucciones de montaje / Manejo / Garantía Locarno 110 04810xx0 Locarno 210 04811xx0 Locarno 210 04819xx0...
-
Page 2: Technical Information
English Français Technical Information Données techniques Water pressure Pression d’eau Recommended 15 - 75 PSI (0.1 - 0.5 MPa) recommandée 15 - 75 PSI (0.1 - 0.5 MPa) Maximum 145 PSI (1 MPa) maximum 145 PSI (1 MPa) Hot water temp. Température d'eau chaude Recommended 120°-140°... - Page 3 Español Datos tecnicos Tools Required / Outiles Utiles / Herramientas Útiles Presión en servicio recomendada 15 - 75 PSI (0.1 - 0.5 MPa) max. 145 PSI (1 MPa) Temperatura del agua caliente recomendada 120°-140° F (48° - 60° C)* 9 mm max.
- Page 4 Locarno 110 Locarno 210 04810xx0 04811xx0 5¾" (147 mm) 2⁷⁄₁₆"(62mm) Ø1¼" (32 mm) 7⅞" (200 mm) 2⁷⁄₁₆"(62mm) ⅜ Ø1¼" (32 mm) ⅜ Locarno 04819xx0 6⅝" (168 mm) Ø1⅜" (35 mm)
- Page 5 Optional: Install the baseplate 04819xx0 / En Option : Installez l'embasse 04819xx0 / Opcional: Instale la placa de base 04819xx0 English Français Español Position the baseplate and Placez l’embase et le joint sur la Ubique la placa de base y la gasket over the holes in the surface de montage.
-
Page 6: Installation / Installation / Instalación
Installation / Installation / Instalación 2.2 ft-lb 3 Nm English Français Español Place the faucet and sealing ring Placez le robinet et l’anneau Coloque el grifo y el aro de on the mounting surface. d’étanchéité sur la surface de sellado sobre la superficie de montage. - Page 7 1.5 mm 5.9 ft-lb 8 Nm English Français Español Connect the hoses to the stops. Connectez les tuyaux d’arrivée Conecte las mangueras de d’eau chaude et d’eau froide suministro de agua caliente y fría Use two wrenches, as shown in aux butées d’arrêt.
- Page 8 1.5 mm > 2 min English Français Español Flush the faucet for at least two Rincez le robinet pendant au Lave el grifo durante al menos 2 minutes. moins 2 minutes. minutos. Install the aerator. Installez l’aérateur. Instale el aireador. Tighten the aerator screw.
- Page 9 Set hot water limiter / Positionner le limiteur de température / Ajustar tope 3 mm 140° F 50° F 44 PSI 60° C 10° C 0.3 MPa 91°F 33°C 97°F 36°C 140°F 60°C 100°F 38°C 109°F 131°F 43°C 122°F 55°C 50°C 3 mm 3.7 ft-lb / 5 Nm...
- Page 10 Replacement Parts / Pièces détachées / Repuestos Locarno 110 04810xx0 Locarno 210 04811xx0 98863xx0 98398000 92527000 98864000 98146000 Locarno 04819xx0 95973001 98865000 98398000 98866000 93085001 13961000 xx = Colors / Couleurs / Acabados 00 = Chrome 67 = Matte Black 82 = Brushed Nickel 83 = Polished Nickel...
- Page 11 User Instructions / Instructions de service / Manejo fermé ouvert cerrado abierto cold chaud froid caliente frío...
- Page 12 Cleaning / Nettoyage / Limpieza 1.5 mm 1.5 mm...
- Page 13 Cleaning Recommendation for Hansgrohe Products Modern bathroom faucets, kitchen faucets and shower products are made from different materials to comply with the needs of the market with regard to design and functionality. To avoid damage to the product, it is necessary to take proper care of it.
- Page 14 Important • Les residus de produits pour le corps comme les savons liquides, shampooings, gels de douche, teintures pour cheveux, parfums, apres-rasage et vernis a ongles peuvent causer des deteriorations. Rincez le produit avec de l’eau propre après chaque utilisation. •...
-
Page 16: Limited Consumer Warranty
Limited Consumer Warranty This warranty is limited to products manufactured by Hansgrohe, conditions in the home such as excessive water pressure Inc. (“Hansgrohe”) that are purchased by a consumer in the United or corrosion. States or Canada after March 1, 1996, and installed in either the Labor and other expenses for disconnection, deinstallation, United States or in Canada.
