AIR FRYER
Owner's Manual
Model: 38020 - 38021
Rev.1
Questions or Concerns?
For Amazon Purchases: support@nuwavenow.com
For All Other Purchases: help@nuwavenow.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Brio 38020 and is the answer not in the manual?

Questions and answers

Related Manuals for NuWave Brio 38020

Summary of Contents for NuWave Brio 38020

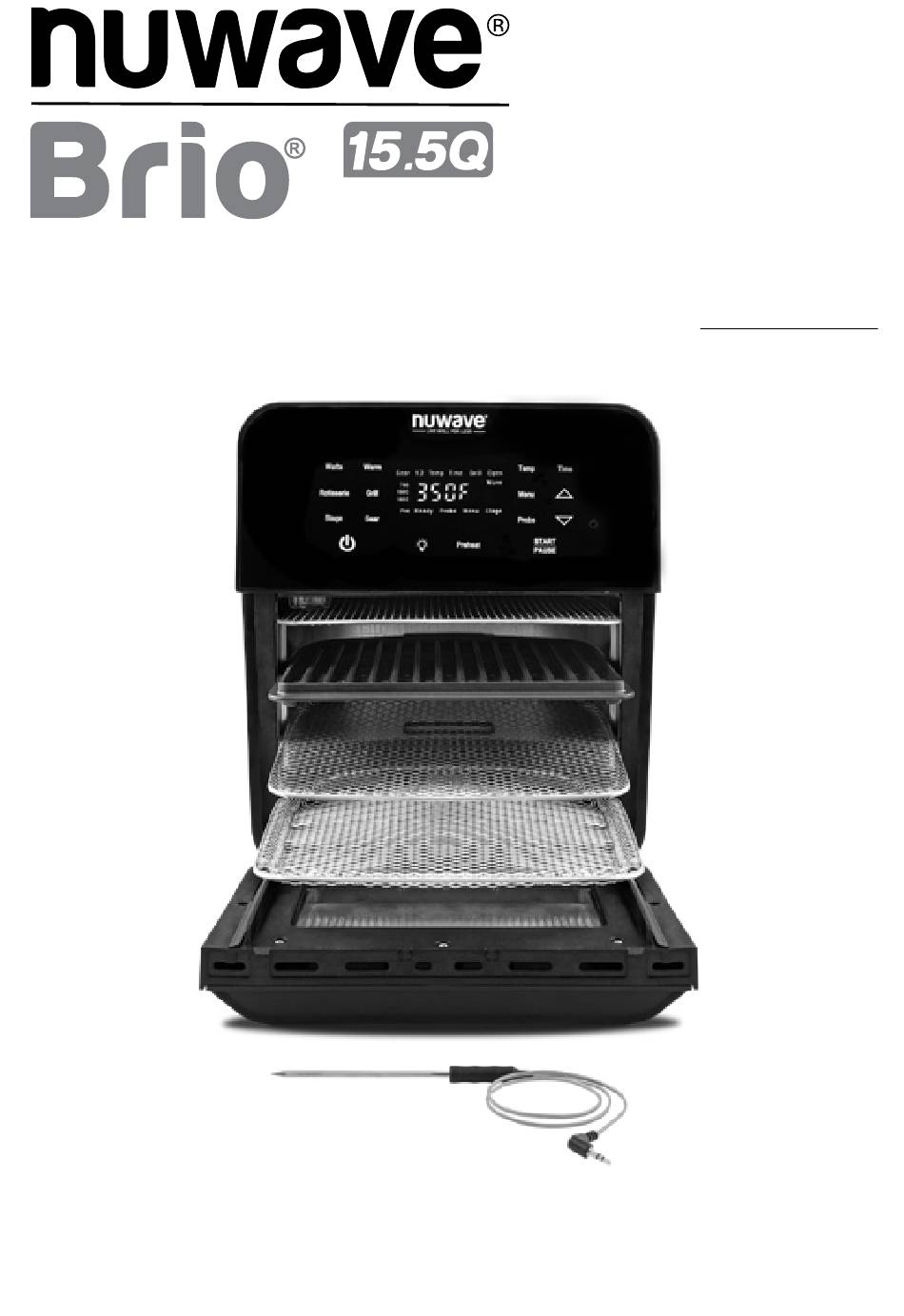

  • Page 1 AIR FRYER Owner’s Manual Model: 38020 - 38021 Rev.1 Questions or Concerns? For Amazon Purchases: support@nuwavenow.com For All Other Purchases: help@nuwavenow.com...
  • Page 2 THANK YOU! Congratulations on your NuWave® purchase. We know there are many options available and sincerely appreciate the trust you have placed in us. For the last 30 years, we have committed to introducing products that promote healthy living at affordable prices. By combining the highest quality designs with cutting edge technology, we have always strived to blend feature, function, and innovation into every product we make.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Important Safeguards ..............4 –  Parts & Accessories ..............6 Assembly Guide ................7 – Quick Start ..................10 – Probe Guide ..................13 General Use...................14 – Advanced Settings ...............18 – Cleaning & Maintenance ..............25 – Troubleshooting Guide ..............27 – Limited Warranty ................29 –...

  • Page 4: Important Safeguards

    13. ALWAYS unplug the Brio and contact NuWave Customer Service* if an excess amount of smoke escapes the unit during operation. Note: A small amount of smoke is normal when using the Brio for the first time.
  • Page 5 20. NEVER disassemble the Brio or replace any parts without the prior written consent of the manufacturer. Note: If any trouble arises during operation, any service MUST be done by NuWave LLC. 21. NEVER use metal utensils with the coated Reversible Rack as doing so can damage the surface.

  • Page 6: Parts & Accessories

    PARTS & ACCESSORIES 1500 1800 Door Part #: B15P1 Power Base Part #: B15A1 Plastic Hinge (2) Door Screws (2) Part #: B15P6 Part #: B15P8 Stainless Steel Stainless Steel Drip Tray Part #: B15A7 Mesh Tray Mesh Rack Part #: B15A2 Part #: B15A3 Grill/Griddle Plate Rotisserie Basket...

  • Page 7: Assembly Guide

    ASSEMBLY GUIDE Before Use 1. Remove all the packaging materials. 2. Remove the glue and labels on the appliance. 3. Clean all parts thoroughly with hot water, a nonabrasive sponge, and mild dish detergent, or in the dishwasher, top rack only. 4.
  • Page 8 ASSEMBLY GUIDE Rotisserie Basket Assembly To use the Rotisserie Basket with the Brio, follow the steps and illustrations below: Remove the top lid from the Rotisserie Basket: Squeeze the Left prongs on the outside of the top lid toward the middle and lift up. Remove the other end from the holes.
  • Page 9 ASSEMBLY GUIDE obstruction. the left. Keep the right side slightly tilted upward while sliding it in. • When using the Rotisserie Basket, place the Drip Tray on the bottom. Bring down the right side of the bar and place it into the bracket, then insert the left side of the bar into the hole in the inner wall.

  • Page 10: Quick Start

    QUICK START 1500 1800 The maximum selectable cooking time differs depending on the selected cooking temperature. 50F – 275F 99:59 (99 hours and 59 minutes) 280F - 345F 24:00 (24 hours) 350F - 400F 1:00 (1 hour) 405F - 425F 00:15 (15 minutes) 10 | nuwavenow.com...
  • Page 11 QUICK START The Power button turns the Brio on and off. Start/Pause: The START/PAUSE button starts, pauses, and resumes cooking. Up & Down Arrows: The arrow buttons adjust the cooking temperatures and times, as well as select different cooking presets. Temp: Adjust the cooking temperature before and during the cooking process.
  • Page 12 QUICK START 1500 Grill: Using the Grill/Griddle Plate, grill your favorite meats and vegetables Press Grill and 1800 use the Up and Down arrows to adjust the temperature and time. Place the Grill/Griddle Plate in Rack Position 2. Watts: The Brio offers 3 wattage levels (700, 1500 & 1800W). Press Watts to change the running wattage the Brio will use.

  • Page 13: Probe Guide

    PROBE GUIDE Probe Temperature Guide Meats Temp. Rare Well Time Min. Rare Well 6 - 8 per lb. Chicken, breast 360F 165F* 7 - 9 per lb. Turkey, breast 5 - 7 per lb. Duck, breast 8 - 10 per lb. Chicken, whole 360F 165F*...

  • Page 14: General Use

    GENERAL USE Getting Started Plug the power cord into an electrical outlet. Press the Power button to turn the Brio on and off and to cancel any cooking function. Adjust the temperature and time by pressing the Up and Down arrows. •...
  • Page 15 GENERAL USE Preheat Preheat the Brio to set the cooking temperature before cooking your food for crispier results. The Brio will automatically preheat before all functions. The default cooking temperature is 350F and the range is 50F-425F. Press START/PAUSE to begin preheating. 350F •...
  • Page 16 GENERAL USE Put your food in the Brio and plug the Probe into the Probe Jack on the right side of the Brio, with the Probe wire facing the front of the Tray. The Brio will beep once. Press and hold Probe for 1 second. Adjust the Probe temperature.
  • Page 17 GENERAL USE View the cooking settings during cooking Press Stage to review each cooking step. Continue to press Stage to scroll through all of the programmed functions for that preset number. • Adjustments to the temperature and time can be made for each function at this time, but it will not be saved.

  • Page 18: Advanced Settings

    ADVANCED SETTINGS Using Warm independently Keeps your food warm until you are ready to serve. Press and hold Warm for 1 second. The Brio will automatically begin to warm your food at the default temperature of 140F. • Press Warm again to cancel the Warm function at any time. You can adjust the cooking temperature and time using the Up and Down arrows.
  • Page 19 ADVANCED SETTINGS • You can see and adjust the upcoming cooking stage(s) by pressing Stage. Menu Store your own cooking preset Adjust the cooking temperature and time. Press START/PAUSE to begin cooking. Press and hold Menu for 1 second. The LED display will show "Menu"...
  • Page 20 ADVANCED SETTINGS To save your edits, press and hold Menu for 1 second and “101” will be displayed. Select the preset number (101-150) that you would like to save your edits to and hold Menu again for 1 second. Note: Once saved, the edited preset will be available for recall. If the cooking process has finished, the preset is no longer editable.
  • Page 21 ADVANCED SETTINGS temperature and time, if desired. Press START/PAUSE to begin. The Brio will start preheating. Once preheated, “Sear 1” and “:” will be flashing. Once Sear 1 is finished, the Brio will beep once and will begin the regular cooking temperature and time set on step 1.
  • Page 22 ADVANCED SETTINGS Press Sear + Menu at the same time. The display will show 10F. Use the Up or Down arrows to set the temperature to 15F. Press START/PAUSE. The Brio will begin cooking at 375F. Press Probe to show the current internal temperature of the food.
  • Page 23 ADVANCED SETTINGS Press the Up or Down arrows to adjust the time. Place the Probe in the food and place the food in the Brio and press START/ PAUSE. The Brio will begin cooking and the current Probe temperature will be displayed.
  • Page 24 ADVANCED SETTINGS Switching from Fahrenheit to Celsius Press and hold Temp for 1 second. The Brio will 350F 177C 1500 1500 display the temperature settings in degrees Celsius. 1800 1800 Press and hold Temp for 1 second again to switch back to degrees Fahrenheit.

  • Page 25: Cleaning & Maintenance

    CLEANING & MAINTENANCE Hand-wash Clean your Brio after every use or in between a number of large batches. Do not use metal utensils or harsh abrasives when cleaning as this can damage the coating. Unplug the Brio and make sure it cools completely. Use a damp cloth to wipe the outside of the appliance.
  • Page 26 CLEANING & MAINTENANCE Removing the Door for Cleaning To Remove the Brio Door To Remove the Plastic Window Open the Brio Door. The Brio Door can be disassembled to clean the inner plastic window. Using a screwdriver, unscrew both Fully open the Brio Door. screws located at the Door hinge to remove the Door (as shown in image Using a screwdriver, unscrew the...

  • Page 27: Troubleshooting Guide

    TROUBLESHOOTING GUIDE The Brio is not turning on or working. 1. The Brio is not plugged in. 2. The Power button was not pressed. Insert the plug into an appropriate grounded power socket. Press the Power button. The ingredients are not completely cooked. 1.
  • Page 28 Put slightly more oil on the potatoes before placing them in the Brio for crispier results. If the Brio needs to be replaced or returned to the manufacturer, please contact NuWave LLC Customer Service. For Amazon Purchases: support@nuwavenow.com For All Other Purchases: help@nuwavenow.com...

  • Page 29: Limited Warranty

    Original Purchaser only. The Manufacturer will provide the necessary parts and labor to repair the product at the NuWave LLC Service Department. After the expiration of the warranty, the cost of the parts and labor will be the responsibility of the owner.
  • Page 30 NUWAVE LLC. DISPUTE RESOLUTION PROCEDURE For disputes relating to use of the website or use or purchase of a NuWave product or service (collectively “Disputes”), you agree to first contact NuWave LLC at legal@nuwavenow.com. If we cannot resolve your dispute informally, any and all disputes shall be submitted to final and binding arbitration.
  • Page 31 LIMITED WARRANTY or use of a NuWave product. For any dispute arising out of your use of NuWave’s website, you have thirty (30) days from the date you provided information to the website to opt out of arbitration. If more than 30 days have passed, you are not...
  • Page 32 Designed & Developed in USA NuWave LLC 560 Bunker Ct. Vernon Hills, IL 60061, U.S.A. Email: For Amazon Purchases: support@nuwavenow.com For All Other Purchases: help@nuwavenow.com Item No: BM38020 Made in China Rev.1-V5-JD ©2023 NuWave LLC • All Rights Reserved. 08-17-23...
