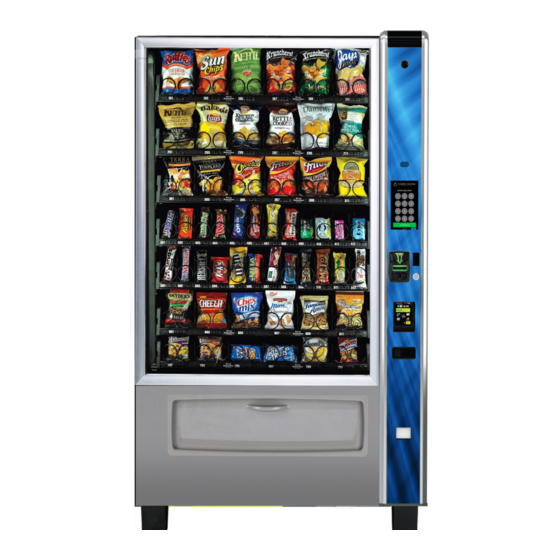

- Page 1 INSTALLATION GUIDE CURVE PANEL W/ VENTURE For Merchant Media 186/187, 471/472 All manuals are available at https://www.veii.com/manual 8700 BROOKPARK ROAD www.veii.com 1.800.321.2311 CLEVELAND, OHIO 44129 VE1021148 - Media Panel Installation Manual...
-
Page 2: Table Of Contents
INSTALLATION GUIDE TABLE OF CONTENTS Merchant 186/187, 471/472 Disassembly / Assembly Process for CURVE Panel w/ Venture REMOVE DOOR ................INSTALL DOOR STEP 1. New Controller ............... STEP 1. New Controller ............... 6 ..STEP 2. Mount Door Catch and Slide Brackets ........ - Page 3 TOOLS REQUIRED 5/16” SOCKET 11/32” WRENCH 11/32” , 1/4” NUT DRIVER PHILLIPS SCREW DRIVER INCLUDED PARTS PART NUMBER DESCRIPTION VE7207K KEPS NUTS, ZINC, #8-32 FASTENER MOUNT CABLE VE4684 HOLDER, 3/4” VE1017112 PCB STANDOFF SCREW, 8-32 X .25 HWHTS VE737K SLOT TC TYPE F VE4601K 6”...
- Page 4 INCLUDED HARNESSES PART NUMBER DESCRIPTION VE1017070 MDB HARNESS VE6877 DROP SENSOR HARNESS VE6822 MOTION CENSOR HARNESS VE1017066 COIN RETURN MOTOR HARNESS VE1017542 LED POWER HARNESS VE1018279 DROP SENSOR HARNESS , UCB MERCHANT VE5817 DEX HARNESS VE1020990 DOOR SWITCH HARNESS VE5834 DISPLAY RIBBON - HARNESS BOARD VE1019772 VENTURE DATA HARNESS...
-
Page 5: Install Door
REMOVE DOOR REMOVE DOOR WARNING To prevent personal injury and equipment damage, turn machine off and disconnect electrical cord from the wall outlet before installing door. Failure to do so could result in electrical shock. TRAY1 TRAY1 1.B) Mark the tray connectors or wires going to the controller in such a way 1.A) Unplug machine from power 1.C) Unplug all harnesses from the... -
Page 6: Step 2. Mount Door Catch And Slide Brackets
INSTALL NEW DOOR HARNESS BOARD 1.D) Attach cabinet harnesses to 1.E) NOTE: The 24VAC is installed 1.C) Attach the Merchant harness controller. differently than OEM, and it has no board (VE1017151) to the UCB as directional key. shown. STEP 2. Mount Door Catch and Slide Brackets SLOTS MUST POINT UP 2. -
Page 7: Step 3. Mount And Secure Door
INSTALL NEW DOOR SLOTS MUST POINT UP 2.G) Pull out the lower left rail with the mounting plate installed. Using three 2.H) Pull out lower right slide and 8-32 X 375 PHMS screws (VE7227) secure the door to the mounting plate mount door onto studs with nuts as shown. -
Page 8: Step 4. Reassemble Door
INSTALL NEW DOOR STEP 4. Reassemble Door 4.A) Close door and ensure the 4.B) Secure the Coin return motor and mount to the coin mech mounting bracket. t-handle operates smoothly, it should engage the door catches easily and without excessive force. - Page 9 ATTACH HARNESSES STEP 1. Attach Harnessing CAUTION Inspect all electrical connections, making sure they are properly attached to their specified connection points before powering up machine. 1.A) Connect LED POWER HARNESS 1.C) Connect DOOR SWITCH HARNESS 1.B) Connect DISPLAY RIBBON (VE1017542) to controller and (VE1019798) to door switch and HARNESS (VE5834) to controller.
- Page 10 ATTACH HARNESSES 1.J) Secure loose wires with CABLE TIES 1.I) Connect VENTURE DATA HARNESS (VE1019771) to venture board and UCB. (VE4601K). 1.K) Connect P-CLAMP (VE4684) to door slide. Route harnessing as shown and secure with cable ties in locations specified in the following pictures.
-
Page 11: Controller Port Diagram
CONTROLLER PORT DIAGRAM ESCROW MOTOR PUSH BUTTON DOOR SWITCH POWER FOR VENTURE DISPLAY VENTURE DATA 24VDC NO CONNECTION DISPLAY TRAY 1 LED CONTROL TRAY 2 24VAC TRAY 3 DROP SENSOR TRAY 4 HEATER/LED* ONLY IF USING TRAY 5 LEDS ONLY USED TRAY 6 FOR CHILLED MACHINE... -
Page 12: Venture Port Diagram
VENTURE PORT DIAGRAM USB 2 USB 1 POWER MOTION SENSOR DATA SPEAKER SCAN THE QR CODE BELOW FOR UCB PROGRAMMING GUIDES VE1021148 - Media Panel Installation Manual www.veii.com... - Page 13 VENDORS EXCHANGE WARRANTY INFORMATION Limited Warranty and Disclaimer. VE warrants that the Products, including without limitation, their component Part(s), sold will be of the kind and quality described herein and will be free of defects in workmanship or material. This Warranty shall extend for the Warranty Period set forth below following the date of delivery of such Products to Buyer.
