BEGA 77 911 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

• 4mm hex head screwdriver

Overview:

LED Watts: 23.6W
System Watts: 28.0W
Controllability: 0-10V dimmable
Weight: 27.6 lbs.
Protection Class: IP65

Notice to Installer:

1. For pole top applications only.
2. Slip fits 3" OD poles or tenons only. Requires a minimum 4" length of straight dia.
pole/tenon for proper installation.
3. Pole top luminaire is provided with a 25' wire bundle to route through the pole for
suppy wiring connections.

Installation: Luminaire

1. Route the luminaire wiring through the pole to the base and slip fit the luminaire over
the top of the pole.
2. Aim luminaire in desired direction. Secure luminaire into place by tightening the (6)
4mm set screws on the pole fitter evenly. Set screws must be tightened to 12Nm.
3. Make supply wiring connections in base of pole:
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
0-10V Dimming (if applicable):
DIMMING CONTROL (+) TO POSITIVE LUMINAIRE DIM CONTROL WIRE
DIMMING CONTROL (-) TO NEGATIVE LUMINAIRE DIM CONTROL WIRE

Accessories

Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2023
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com

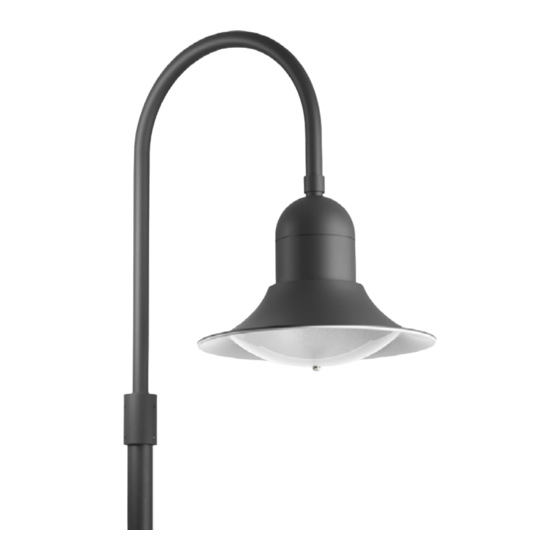

Pole top luminaire - asymmetric wide beam

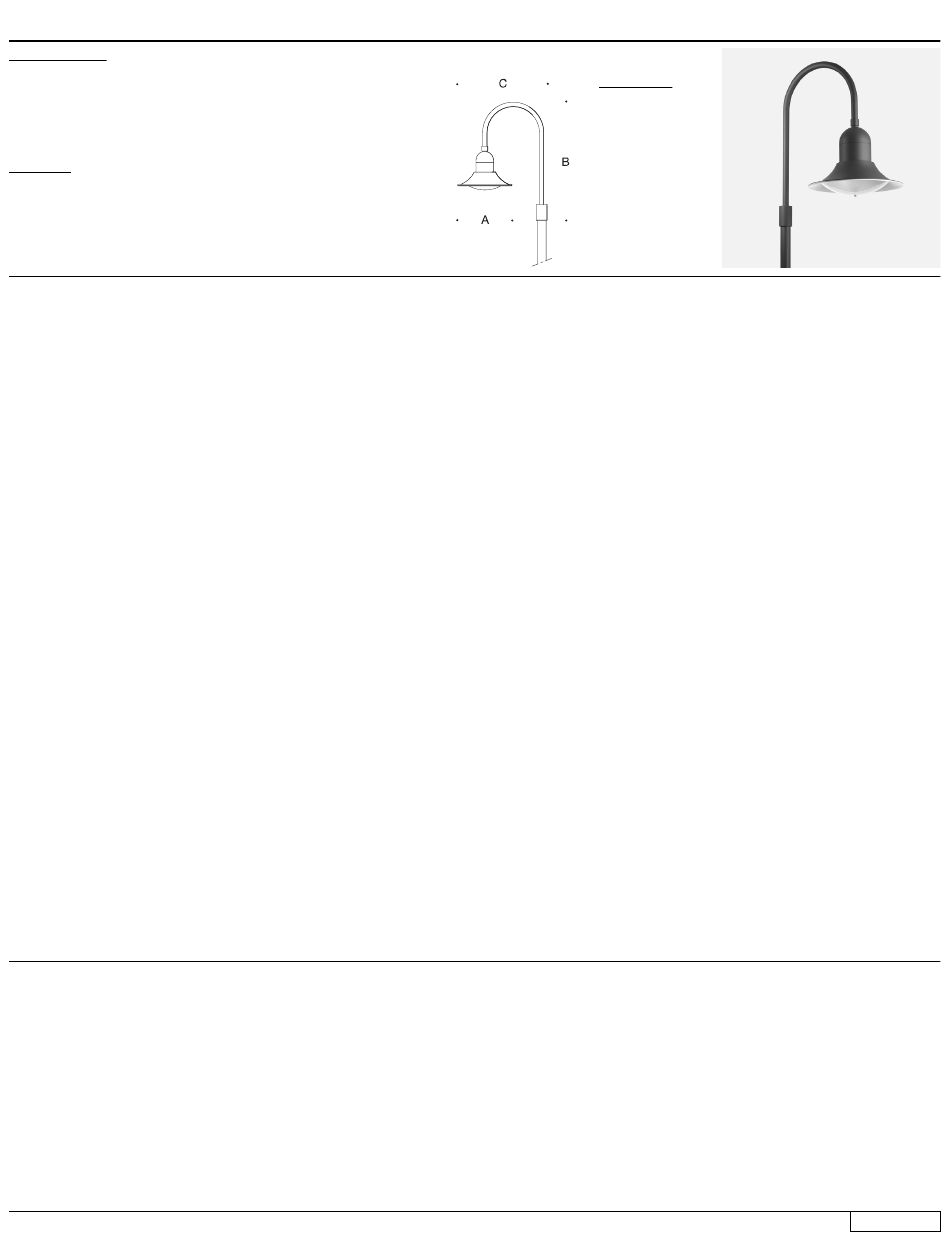

Dimensions

A: 26-5/8
B: 46-1/4
C: 40-1/8

Maintenance:

Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.

Replacement Parts

See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
77 911
Updated: 01/20/23
77 911 1 of 2
