BEGA 77 008 Installation And Technical Information

BEGA
Installation and Technical Information

Tools Required:

• Digging tool

Overview:

LED Watts: 3.0W
System Watts: 4.2W
Controllability: Non dimmable
Weight: 1.9 lbs.
Protection Class: IP67

Notice to Installer:

1. BEGA fixtures may be damaged if connected to a conduit system that contains water.
Article 300-5G of the National Electric Code requires that "conduits or raceway
through which moisture may contact energized live parts shall be sealed or plugged at
both ends".
2. Remote 12-24V AC input voltage required for use with BEGA Home and Garden
luminaire. Voltage must not drop below 10V AC.
3. Pre-wired with 6' of #18 AWG wire with waterproof gland into housing.
4. Luminaire must be installed 10'' or more from pool, spa or fountain.
5. Do not remove the desiccant pouch from the luminaire housing.

Installation:

1. Turn main power off before start of installation.
2. Establish planned fixture location and provide 12-24V AC supply wiring.
3. Dig hole at least 5" deep for luminaire. Sufficient drainage (e,g, gravel, stone
chippings) must be provided under the luminaire. [Figure 2]
4. Install luminaire housing flush to finished surface.
5. Make wiring connections. For maximum wire run lengths see [Figure 1].
6. Wiring connections must be made in a watertight location.
7. Fill soil or gravel around luminaire assuring housing stays level.
8. Turn main power on.

Accessories

Please refer to the appropriate accessory installation
sheet for further instruction when applicable.
Low voltage magnetic transformer
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 © copyright BEGA 2019
Due to the dynamic nature of lighting products and the associated technologies, luminaire data on this sheet is subject to change at the discretion of BEGA North America. For the most current technical data, please refer to bega-us.com
536
Garden floodlight - Home & Garden

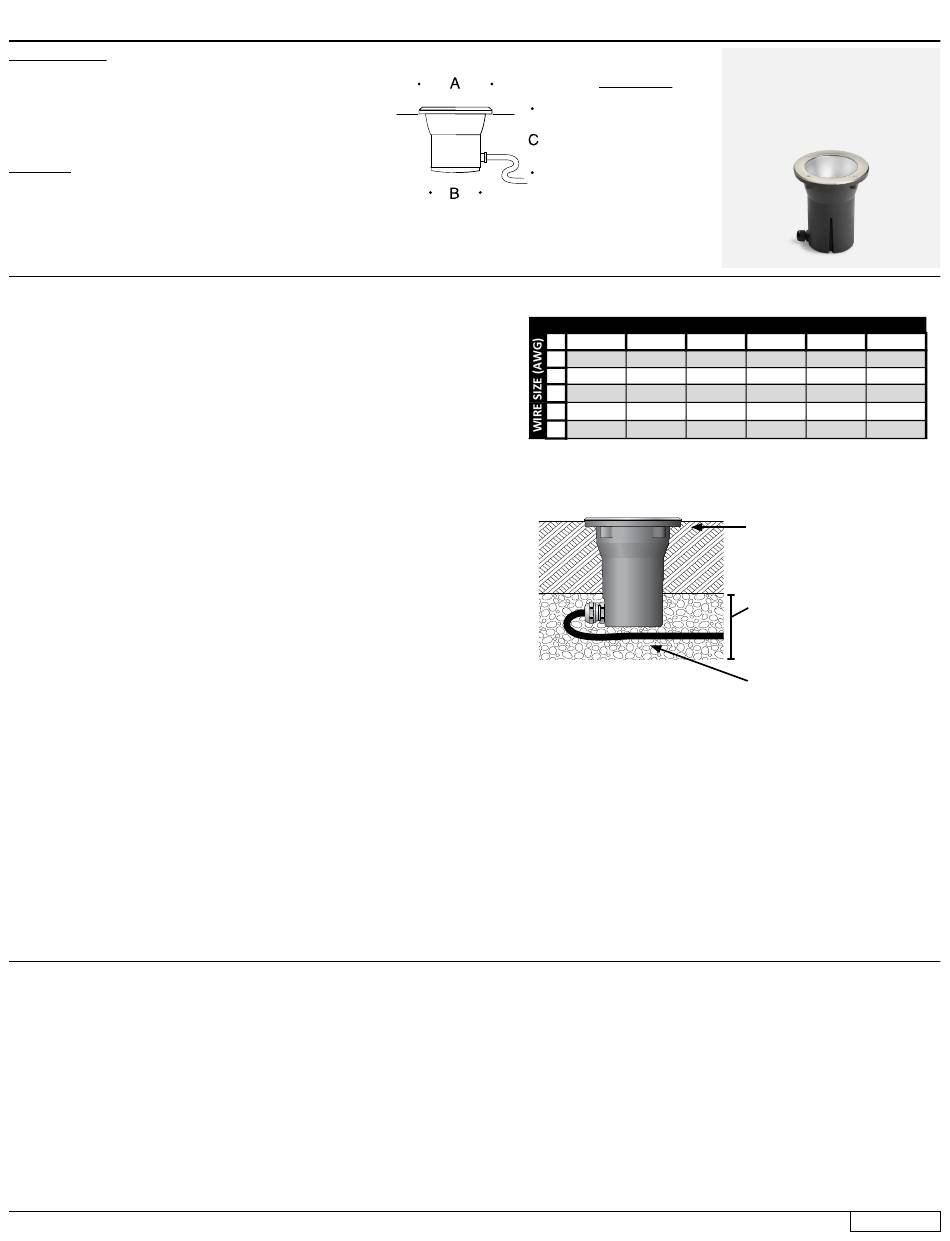

Dimensions

A: 4 3/8''
B: 2 3/8''
C: 5''
Figure 1:Voltage drop chart
TOTAL SYSTEM WATTS
5W 10W
18 366 183
16 585 292
14 928 464
12 1477 738
10 2353 1176
*Max Run Length (ft) Per Wire Size: 2V drop
Figure 2: Installation

Maintenance:

Clean regularly with solvent-free cleaner
removing dirt and debris. Do not use high
pressure cleaners.

Replacement Parts

See label inside of fixture for LED replacement
part number.
Consult factory for all other replacement
components.
77 008
15W 20W 30W
122 92 61
195 146 97
309 232 155
492 369 246
784 588 392
Housing flush to finished surface
Proper draining required
6' #18 AWG wire
Updated: 10/07/19
77 008
40W
46
73
116
185
294
