BEGA 77 910 Installation And Technical Information

BEGA
Installation and Technical Information
Tools Required:
3mm hex key
4mm hex key
5mm hex key
Adjustable wrench
Protection Class: IP65
Weight: 22.0 lbs.
Notice to Installer for 77 910:
1. For pole top applications only.
2. Slip fits 3" O.D. poles only.
3. LED module and integral driver provided by BEGA.
4. Pole top luminaire supplied with 25 feet of cable to route through pole.
77 910 - installation:
1. Route the luminaire wiring through to the pole base and slip luminaire over the
top of the pole.
2. Secure luminaire by tightening set screws on pole fitter, evenly.
3. Insert shade reflector into luminaire housing such that the drainage hole on the
reflector rim is turned to the pole side. Tighten four (4) hex screws evenly and
securely.
4. Undo cap nut in luminaire housing and install optical unit according to directional
label, "FRONT". Tighten nuts to secure.
5. Install lens after and tighten screw to secure. Make sure the gasket is seated
properly.
6. Make supply wiring connections to luminaire wires in pole base:
MAIN VOLTAGE SUPPLY WIRE TO BLACK LUMINAIRE WIRE
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE LUMINAIRE WIRE
GREEN GROUND WIRE TO GREEN LUMINAIRE WIRE
Relamping/Maintenance
NO relamping necessary.
Lamp: 15.8W LED
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2017

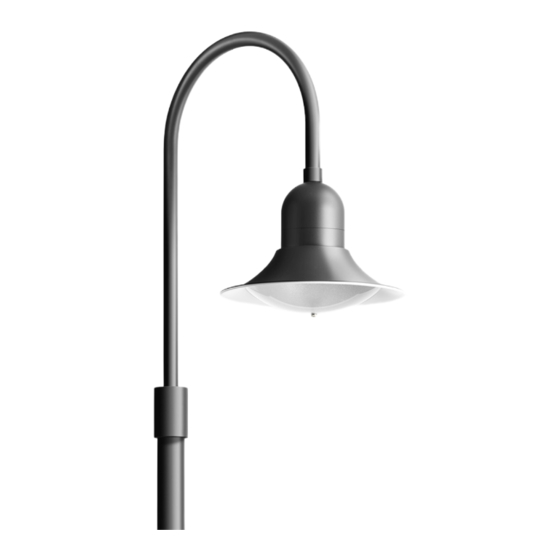

Pole-top with asymmetrical wide-spread distribution
Accessories
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.

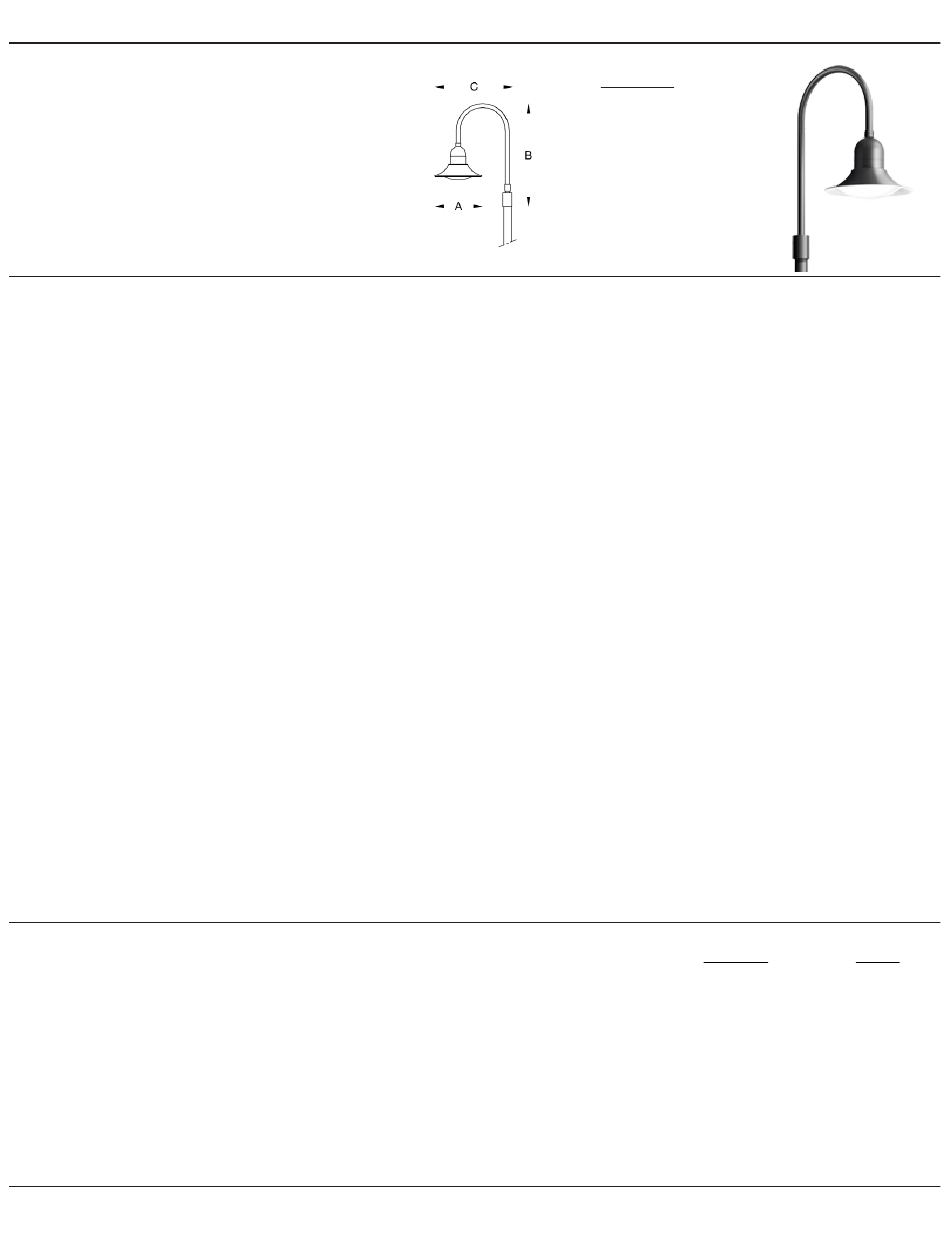

Dimensions
A:
19-3/4"
B: 40-5/8 "
C: 32-5/8 "
Replacement Parts
Description
Acrylic lens cylinder
Lens gasket
LED driver
LED module (3000K)
LED module (4000K)
77 910
Part No
150366
830439
75983-02
LED-0276/830
LED-0276/840
77 910
8/8/2017
Page 1 of 2
