BEGA 77 210 Installation And Technical Information

BEGA
Installation and Technical Information
BEGA
Installation and Technical Information
Tools Required:
Tools Required:
5mm hex key
6mm hex key
6mm and 8mm Hex Keys
8mm hex key
Adjustable Wrench
Adjustable wrench
UL listed, suitable for wet locations.
Protection Class: IP65
Protection Class: IP 65
Weight: 50.0 lbs.
Weight: 50.0 lbs
Notice to Installer for 77 210:
1. Do not open luminaire.
2. For pole top applications only.
Notice to Installer for 8309MH:
3. Slip fits 3" O.D. pole top or tenon.
1. Luminaire slip fits a 3" O.D. pole top.
4. Luminaire requires at least 3-1/2" of straight diameter pole or tenon.
2. Luminaire requires ballast mounted in minimum 5" butt hinge base pole. NOTE: Lower pole
77 210 assembly:
before installing luminaire and ballast tray.
1. Loosen the (2) 8mm hex screws at the top of the support rods and remove
screws and fixing plates.
8309MH assembly:
2. Attach the reflector disk to the support rods by positioning the joint shells over the
1. Loosen (2) M8 socket head screws and remove cover ring and glass with gasket.
joint bearings. Make sure the drip edges are oriented downwards.
2. Insert lamp.
3. Replace the fixing plates and screws.
3. Replace glass with gasket. Make sure the grooved side of the glass fits the underside of the
4. Tilt the reflector to the desired orientation (0-30 degrees). Consult factory for
cover ring. Otherwise, flip the glass. And make sure the gasket is seated flush to ensure
non-adjustability option.
proper seal.
5. Tighten the (2) 8mm screws to secure in place.
4. Tighten the (2) M8 screws evenly.
77 210 - installation:
5. Loosen the (2) M10 socket head screws at the top of the support rods and remove screws
1. Carefully hinge down pole, exposing bottom of pole.
and fixing plates.
2. Route the luminaire wiring through to the pole top base and slip luminaire over
6. Attach the reflector disk to the support rods by positioning the joint shells over the joint
the top of the pole.
bearings. Make sure the drip edges are oriented downwards.
3. Tighten the (8) 5mm set screws evenly to secure to pole.
7. Replace the fixing plates and screws.
4. Make wiring connections from luminaire wires to gear tray wires by attaching the
8. Tilt the reflector to the desired orientation (0-30º). Consult factory for non-adjustability
(2) quick-connect terminals securely.
option.
NOTE: ONLY attach luminaire wires to specifi ed gear tray wires.
9. Tighten the (2) M10 screws to secure in place.
5. Place the gear tray in the base of the pole and tighten the 5/16" hex bolt to wedge
inside pole and secure.
8309MH installation:
6. Make supply wiring connections to gear tray wires:
1. Route the luminaire wiring through to the pole base and slip the pole top base over the top
MAIN VOLTAGE SUPPLY WIRE TO BLACK DRIVER WIRE
of the pole.
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE DRIVER WIRE
2. Tighten the (8) M10 set screws evenly to secure to pole.
GREEN GROUND WIRE TO GREEN DRIVER WIRE
3. Make wiring connections from luminaire wires to ballast tray wires:
Dimming (if applicable):
BLACK LUMINAIRE WIRE TO BLACK MARKED "SOCKET" WIRE
DIMMING CONTROL WIRE (+) TO POSITIVE LUMINAIRE DIM
WHITE LUMINAIRE WIRE TO WHITE MARKED "SOCKET" WIRE
CONTROL WIRE
GREEN LUMINAIRE WIRE TO GREEN GROUND WIRE
DIMMING CONTROL WIRE (-) TO NEGATIVE LUMINAIRE DIM
4. Place the ballast tray in the base of the pole and tighten the 5/16" hex bolt to secure.
CONTROL WIRE
5. 7. Replace pole to upright position and secure by tightening (3) base bolts. Make supply wiring connections to ballast tray wires:
MAIN VOLTAGE SUPPLY WIRE TO BLACK BALLAST WIRE IMPORTANT: PLEASE NOTE THE WEIGHT OF LUMINAIRE HEAD ON
POLE AND TAKE CAUTION ACCORDINGLY DURING POLE TILT.
NEUTRAL (COMMON) SUPPLY WIRE TO WHITE BALLAST WIRE
GREEN GROUND WIRE TO GREEN BALLAST WIRE
Relamping/Maintenance
NO relamping required.
Relamping/Maintenance
Disassemble cover ring and glass. Clean dirt and
deposits from the luminaire and glass using only
solvent-free cleaners. Relamp and replace gasket if
damaged. Reassemble cover ring and glass.
Lamp: 55.3W LED
Lamp: (1) 150W T6 G12 MH
Philips : CDM150/T6
Osram/Sylvania : MC150T6/U/G12
GE : CMH150/T/U/G12
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
In the interest of product improvement, BEGA reserves the right to make technical changes without notice.
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA-US 2018
BEGA 1000 Bega Way, Carpinteria, CA 93013 (805)684-0533 Fax (805)566-9474 www.bega-us.com © Copyright BEGA/US 2004
Pole top w
Accessories
Please refer to the appropriate
Accessories
accessory installation sheet for
further instruction when applicable.
Please refer to the appropriate
accessory installation sheet for
further instruction when applicable.

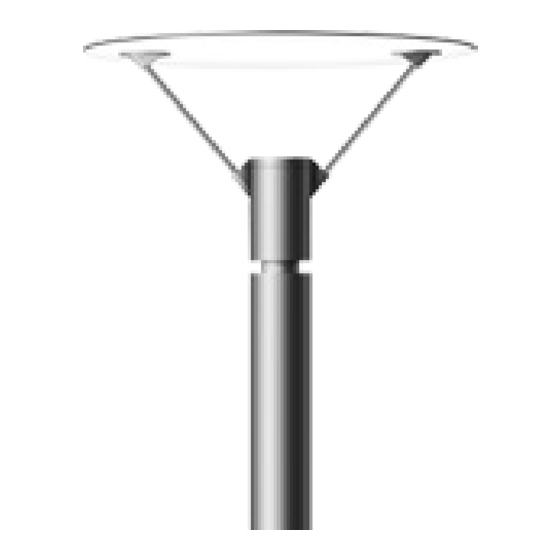

Pole top - indirect
/ indirect cutoff optics
Dimensions
A:
39-3/8 "
Dimensions
B: 22-5/8 "
A: 39-3/8 "
B: 24-1/4 "
Replacement Parts
Replacement Parts
Description
Description
Lens
Lens gasket
Diffuser
Gasket
Driver (120-277V)
Lampholder
LED Module (3000K)
Ballast (120V/208V/240V/277V)
LED Module (4000K)
77 210
8309MH
Part No
Part No
140878
830647
140273
830647
75976
74121
LED-0721/830
75146
LED-0721/840
77 210
8309MH
10/9/2018
2/2/2006
Page 1 of 2
