SMART-AVI USB2PRO Quick Start Manual

TECHNICAL SPECIFICATION
USB
Signal Type USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power Supply External 100-240 VAC/5VDC2A
Dimensions 3.625" W x 1" H x 3" D
Weight 1.5 lb
Operating Temp. 0 to 40°C (32° to 104° F)
Storage Temp. -20° to 60°C (-4° to 140° F)
Humidity Up to 95% (non-condensing)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
USB 2.0/1.1 CAT5
USB-2PTX 1
Transmitter
USB-2PRX 1 USB 2.0/1.1 CAT5 Receiver
5VDC2A 1 PS5VD2A power supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

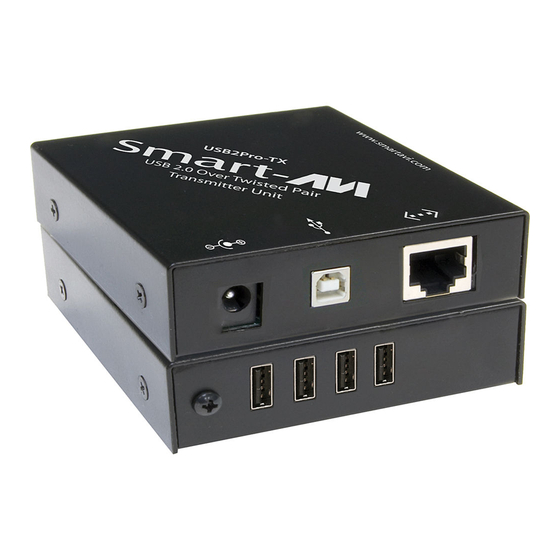

USB2PRO
USB 2.0 EXTENDER OVER CAT5
EXTENDS USB 2.0
UP TO 300 FEET
OVER CAT5 CABLE
Quick Start Guide
