SMART-AVI USB2Mini User Manual

Technical Specifications

ELECTRICAL
Range over CAT5 150 ft.
UTP
USB DATA
USB Fixed 480Mbps
Data Rate
USB Version 2.0 and 1.1
Compatibility
USB Connector (1) Type B
Type (TX)
USB Connector (4) Type A
Type (TX)
UTP DATA
Signal Type LVDS
Connector Unshielded RJ45
POWER
External or via USB 5V DC @ 2mA
Connector 2.1mm DC jack
(center+ve)
PHYSICAL
Dimensions 3.375"x3.375"x1.5"
Weight .14lb
© Copyright 2014 SmartAVI, All Rights Reserved
Notice
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced or translated into another language
without prior written consent from SmartAVI.
11651 Vanowen St.
North Hollywood, California 91605
Phone: (818) 503-6200
Fax: (818) 574-5581
User Manual
USB2Mini

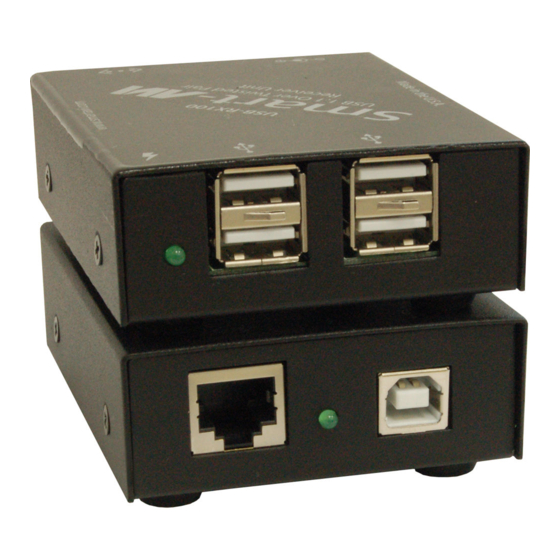

The USB2Mini extends USB 2.0 up to 150 ft. from the
computer using a single CAT5 Cable
www.smartavi.com
