SMART-AVI USB2CX Quick Start Manual

TECHNICAL SPECIFICATION

USB
Signal Type USB 2.0
Input Interface (TX) (1) USB Type B (Female)
Output Interface (RX) (4) USB Type A (Female)
OTHER
Power External 100-240 VAC/5VDC3A
Dimensions 4.3" W x 1.1" H x 2.5" D
Weight 1.5 lb
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95% (non-condensing)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
USB2CX-TX 1 USB 2.0 over CAT5 Transmitter
USB2CX-RX 1 USB 2.0 over CAT5 Receiver
PS5VD3A 2 5V 3A Power Supply
Quick Start
1
Guide
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
(888)-994-7427, (702)-800-0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

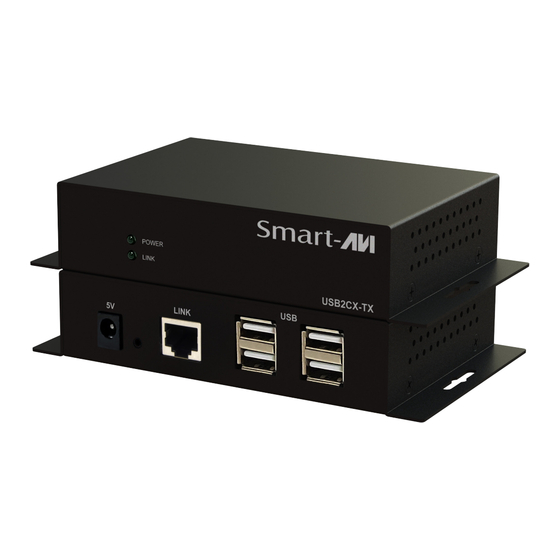

USB2CX
USB 2.0 Extender over CAT5
EXTENDS USB 2.0
UP TO 330 FEET
OVER CAT5 CABLE
Quick Start Guide
