  • Page 1 NUC BOX-1260P NUC BOX-1240P NUC BOX-1220P NUC BOX-1360P/D5 User Manual NUC BOX-1340P/D5 Version 1.0 Published May 2022 User Manual...
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock Industrial has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Contact Information If you need to contact ASRock Industrial or want to know more about ASRock Industrial, you’re welcome to visit ASRock Industrial’s website at https://www.asrockind.com; or you may contact your dealer for further information.

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the Memory Modules How to Install the WiFi Module How to Remove the M.2 SSD (Type 2280) and the Bracket How to Install the M.2 SSD (Type 2260) How to Install the Hard Drive...
  • Page 5 5.1.1 Entering BIOS Setup 5.1.2 UEFI Menu Bar 5.1.3 Navigation Keys Main Screen (Advanced Mode) Advanced Screen 5.3.2 Chipset Configuration 5.3.3 Storage Configuration 5.3.4 Super IO Configuration 5.3.5 AMT Configuration 5.3.6 ACPI Configuration 5.3.7 USB Configuration 5.3.8 Trusted Computing Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen...

  • Page 6: Chapter 1 Introduction

    Because the hardware specifications might be updated, the content of this documentation will be subject to change without notice. 1.1 Package Contents • NUC BOX-1360P/D5 / NUC BOX-1340P/D5 • 1 x Screw for M.2 slot • 1 x 19V/120W Power Adapter (i7-1360P) •...

  • Page 7: Product Specifications

    1.2 Product Specifications NUC BOX-1360P/D5 Barebone NUC BOX-1340P/D5 Intel® 13th Gen (Raptor Lake-P) Core™ Processors NUC BOX-1360P/D5 (i7-1360P, 4P+8E) NUC BOX-1340P/D5 (i5-1340P, 4P+8E) Chipset BIOS AMI SPI 256 Mbit Memory Supports Dual Channel DDR5 4800 MHz Storage 1 x M.2 (KEY M, 2242/2260/2280) M.2 slot...
  • Page 8 NUC BOX-1360P/D5 NUC BOX-1340P/D5 Rear I/O 1 x HDMI 2.0b, 1 x DP1.4a, 2 x 2.5 Gigabit LAN, 2 x USB 3.2 Gen2 (Type-A), DC-IN Power Unit 19V/120W Power Adapter (i7-1360P) 19V/90W Power Adapter (i5-1340P) Dimension 110.mm (W)x 117.5mm (D) x 47.85mm (H)

  • Page 9: Block Diagram

    1.3 Block Diagram NUC BOX-1360P/D5 NUC BOX-1340P/D5 Hayden Type-C TCP0+USB2.0#5 DDR5 4800MHZ Bridge SO-DIMM Connector JHL9040R DDR5 4800MHZ TCP1+ USB2.0#6 Type-C SO-DIMM Connector TCP2 SATA(#0) SATA Port Display port PCIe x1(#6) HDMI DDIB CNVi HDMI M.2 Key E IT66318 Connector USB2.0(#10)

  • Page 10: Chapter 2 Product Overview

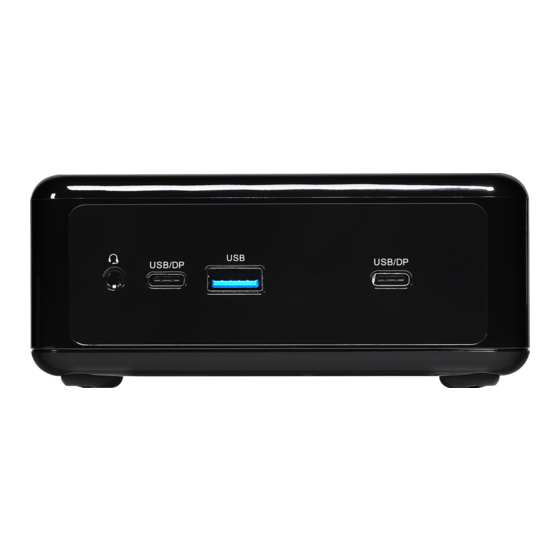

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the NUC BOX-1360/D5 / NUC BOX-1340P/D5. 2.1 Front View Description Audio (Mic-in, Line-out) USB4 / Thunderbolt 4 (5V/3A, supports DP2.1a display output) USB 3.2 Gen2x2 (Type C, supports DP1.4a display output)

  • Page 11: Rear View

    2.2 Rear View Description DC-IN 1 x HDMI RJ-45 (2.5G)* DisplayPort** USB 3.2 Gen2 * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status...

  • Page 12: Inside View

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 2.3 Inside View Description SO-DIMM Slots SATA 3.0 Connector M.2 Slot (2242/2260/2280) Wifi Module Slot Hard Disk Drive Tray (compatible with 2.5" SATA HDD/SSD) SO-DIMM memory, Wifi module and M.2 are not included with this system.

  • Page 13: Chapter 3 Hardware Installation

    Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the four screws on the bottom case. 2. Then lift up and remove the bottom panel.

  • Page 14: How To Install The Memory Modules

    NUC BOX-1340P/D5 3.2 How to Install the Memory Modules 1. The NUC BOX-1360P/D5 / NUC BOX-1340P/D5 requires DDR5 SO-DIMM. 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) Memory Module SO-DIMM pairs.

  • Page 15: How To Install The Wifi Module

    3.3 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot. 3. Tighten the screw to secure the WiFi Module to the motherboard.

  • Page 16: How To Remove The M.2 Ssd (Type 2280) And The Bracket

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 3.4 How to Remove the M.2 SSD (Type 2280) and the Bracket 1. Release the screw and carefully remove the M.2 SSD (Type 2280). 2. Release the screw and remove the bracket from the motherboard.

  • Page 17: How To Install The M.2 Ssd (Type 2260)

    3.5 How to Install the M.2 SSD (Type 2260) 1. Locate the M.2 slot on the motherboard. Install the standoff. 2. Carefully insert the M.2 SSD into the slot.
  • Page 18 NUC BOX-1360P/D5 NUC BOX-1340P/D5 3. Tighten the screw to secure the M.2 SSD to the motherboard.

  • Page 19: How To Install The Hard Drive

    3.6 How to Install the Hard Drive 1. Carefully insert the M.2 SSD (Type 2280) into the slot. 2. Carefully insert the M.2 SSD (Type 2280) into the slot.
  • Page 20 NUC BOX-1360P/D5 NUC BOX-1340P/D5 3. Attach the HDD assembly to the bottom panel and secure it using the four screws. Connect the SATA Cable to the connector. Then reinstall the bottom panel.

  • Page 21: How To Install The Vesa Bracket

    3.7 How to Install the VESA Bracket Attach the two screws to the base of the NUC BOX-1360P/D5 / NUC BOX-1340P/D5. Attach the VESA Bracket to the rear of a compatible display using the four screws. *Choose mounting holes depending on the mounting hole pattern of your LCD...
  • Page 22 NUC BOX-1360P/D5 NUC BOX-1340P/D5 Mount the NUC BOX-1360P/D5 / NUC BOX-1340P/D5 by sliding it into place.

  • Page 23: Motherboard

    Chapter 4 Motherboard 4.1 Motherboard Layout AUDIO1 TC_TB_0 BIOS (Type C): USB4/ Thunderbolt 4 USB3_3_4 (USB3.2 Gen2): Bottom: USB3_3 USB2_7_8 Top: USB3_4 HDMI_DP_1: COM1 Bottom: HDMI1 Top: D 1 P SATA3_0 NUC-1360P/D5 USB3_1_2 Industrial (USB3.2 Gen2): Bottom: USB3_1 Top: USB3_2 TC_U3D_1 (Type C): USB3.2 Gen2/DP...
  • Page 24 NUC BOX-1360P/D5 NUC BOX-1340P/D5 FAN1 PWR_BTN1 BAT1 ESPI1 1 : M.2 Key-M Socket (M2_M1) 2 : M.2 Key-E Socket (M2_E1) 3 : USB 2.0 Connector (USB2_7_8) 4 : COM Port Header (COM1)(RS-232/422/485) 5 : SATA3 Port (SATA3_0) 6 : JP1...

  • Page 25: Motherboard Specifications

    4.2 Motherboard Specifications Form NUC (4.09-in x 4.02-in x 1.5-in, 10.4 cm x 10.2 cm x 3.8 Dimensions Factor NUC-1360P/D5 (i7-1360P, 4P+8E) NUC-1340P/D5 (i5-1340P, 4P+8E) NUC-1365UE/D5 (i7-1365UE, 2P+8E) Processor NUC-1335UE/D5 (i5-1335UE, 2P+8E) System NUC-1315UE/D5 (i3-1315UE, 2P+4E) NUC-1315U/D5 (i3-1315U, 2P+4E) Chipset BIOS AMI SPI 256 Mbit Expansion...
  • Page 26 NUC BOX-1360P/D5 NUC BOX-1340P/D5 2 x USB 3.2 Gen2 (Type A) 1 x USB4/Thunderbolt™ 4 (5V/3A, supports DP2.1a display output) Front I/O 1 x USB 3.2 Gen2x2 (Type-C, 5V/3A, supports DP1.4a display output) Audio 1 (headphone & microphone jack) 2 x USB 2.0 (1 x 2.00 pitch header)

  • Page 27: Onboard Headers And Connectors

    4.3 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause per- manent damage to the motherboard! USB 2.0 Connector (9-pin USB2_7_8) (see p.
  • Page 28 NUC BOX-1360P/D5 NUC BOX-1340P/D5 SATA3 Port (SATA3_0) (see p. 18, No. 5) The Serial ATA3 (SATA3) connector supports SATA data cables for internal storage devices. The current SATA3 interface allows up to 6.0 Gb/s data transfer rate. JP1 Header 1-2: SIO AT Mode...
  • Page 29 DC-In Wafer (BOM option) 1-4 : GND 2-3 : DC Input (4-pin DC-IN1) (see p. 18, No. 8) Back Side : Power Button (PWR_BTN1) (see p. 19, No. 9) Fan Connector +12V (FAN1) (see p. 19, No. 10) FAN_SPEED FAN_SPEED_CONTROL Battery Connector BAT1 BAT1...

  • Page 30: Expansion Slots (M.2 Slots)

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 4.4 Expansion Slots (M.2 Slots) There are 2 M.2 sockets on this motherboard. M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen4x4 for SSD. * M.2 Key M 2280 (Supported by bracket) M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless.

  • Page 31: Chapter 5 Uefi Setup Utility

    UEFI SETUP UTILITY 5.1 Introduction ASRock Industrial UEFI (Unified Extensible Firmware Interface) is a BIOS utility which offers tweak-friendly options in an advanced viewing interface. The UEFI system works with a USB mouse and offers users a faster, sleeker experience.

  • Page 32: Uefi Menu Bar

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 5.1.2 UEFI Menu Bar The top of the screen has a menu bar with the following selections: Main For setting system time/date information For advanced system configurations Advanced Displays current hardware status H/W Monitor Security For security settings...

  • Page 33: Navigation Keys

    5.1.3 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 34: Main Screen (Advanced Mode)

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 5.2 Main Screen (Advanced Mode) When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. Because the UEFI software is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.

  • Page 35: Advanced Screen

    5.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configuration, Chipset Configuration, Super IO Configuration, AMT Configura- tion, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. Instant Flash Instant Flash is a UEFI flash utility embedded in Flash ROM.
  • Page 36 NUC BOX-1360P/D5 NUC BOX-1340P/D5 5.3.1 CPU Configuration Intel Hyper Threading Technology Intel Hyper Threading Technology allows multiple threads to run on each core, so that the overall performance on threaded software is improved. Configuration options: [Enabled] [Disabled] Active Processor P-Cores This allows you to select the number of cores to enable in each processor package.
  • Page 37 Enhanced Halt State (C1E) The option allows you to enable Enhanced Halt State (C1E) for lower power consumption. Configuration options: [Enabled] [Disabled] Package C State Support The option allows you to enable CPU, PCIe, Memory, Graphics C State Support for power saving.
  • Page 38 NUC BOX-1360P/D5 NUC BOX-1340P/D5 Intel Turbo Boost Technology Intel Turbo Boost Technology enables the processor to run above its base operating frequency when the operating system requests the highest performance state. The default value is [Enabled]. Configuration options: [Enabled] [Disabled]...

  • Page 39: Chipset Configuration

    5.3.2 Chipset Configuration VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance. Configuration options: [Enabled] [Disabled] Re-Size BAR Support If system has Resizable BAR capable PCIe Devices, this option enables or disables Resizable BAR Support.
  • Page 40 NUC BOX-1360P/D5 NUC BOX-1340P/D5 Render Standby Power down the render unit when the GPU is idle for lower power consumption. Configuration options: [Enabled] [Disabled] Onboard LAN1 This allows you to enable or disable the Onboard LAN1 feature. Configuration options: [Enabled] [Disabled] Onboard LAN2 This allows you to enable or disable the Onboard LAN2 feature.

  • Page 41: Storage Configuration

    5.3.3 Storage Configuration SATA Controller(s) The option allows you to enable or disable the SATA controllers. Configuration options: [Enabled] [Disabled] SATA Mode Selection AHCI supports new features that improve performance. Configuration option: [AHCI] AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk performance.
  • Page 42 NUC BOX-1360P/D5 NUC BOX-1340P/D5 SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power. It is supported only by AHCI mode. Configuration options: [Enabled] [Disabled] Hard Disk S.M.A.R.T.

  • Page 43: Super Io Configuration

    5.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. WDT Timeout Reset Use this to set the Watch Dog Timer. Configuration options: [Enabled] [Disabled]...

  • Page 44: Amt Configuration

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 5.3.5 AMT Configuration USB Provisioning of AMT Use this to enable or disable AMT USB Provisioning. The default is [Disabled]. MAC Pass Through The option enables or disables MAC Pass Through function. Dynamic Lan Switch This allows switching AMT support from Integrated LAN to Discrete LAN.
  • Page 45 One Click Recovery(OCR) Configuration Configuration setting for One Click Recovery. This allows access for AMT to boot a recovery OS application Remote Platform Erase Configuration Remote Platform Erase configuration menu. MEBx This Formset contains forms for configuring MEBx.

  • Page 46: Acpi Configuration

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 5.3.6 ACPI Configuration Suspend to RAM Suspend to RAM allows you to select [Disabled] for ACPI suspend type S1. It is recommended to select [Auto] for ACPI S3 power saving. Configuration options: [Auto] [Disabled] Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft-off mode.

  • Page 47: Usb Configuration

    5.3.7 USB Configuration USB Power Control Use this option to control USB power. Configuration options: [Always Enabled] [Default Setting]...

  • Page 48: Trusted Computing

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 5.3.8 Trusted Computing NOTE: Options vary depending on the version of your connected TPM module. Security Device Support Security Device Support allows you to enable or disable BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.
  • Page 49 Pending Operation Pending Operation allows you to schedule an Operation for the Security Device. NOTE: Your computer will reboot during restart in order to change State of the Device. Configuration options: [None] [TPM Clear] Platform Hierarchy This item allows you to enable or disable Platform Hierarchy. Configuration options: [Enabled] [Disabled] Storage Hierarchy This item allows you to enable or disable Storage Hierarchy.
  • Page 50 NUC BOX-1360P/D5 NUC BOX-1340P/D5 Device Select This item allows you to select the TPM device to be supported. [TPM 1.2] restricts support to TPM 1.2 devices. [TPM 2.0] restricts support to TPM 2.0 devices. [Auto] supports both TPM 1.2 and TPM 2.0 devices with the default set to TPM 2.0 devices.

  • Page 51: Hardware Health Event Monitoring Screen

    5.4 Hardware Health Event Monitoring Screen This section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed, chassis fan speed, and the critical voltage. NOTE: Options vary depending on the features of your motherboard. Fan1 Setting This allows you to set FAN1’s speed.

  • Page 52: Security Screen

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 5.5 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has the authority to change the settings in the UEFI Setup Utility.

  • Page 53: Boot Screen

    5.6 Boot Screen This section displays the available devices on your system for you to configure the boot settings and the boot priority. Boot Option #1 The item allows you to set the system boot order. Boot From Onboard LAN The item allows the system to be waked up by the onboard LAN.
  • Page 54 NUC BOX-1360P/D5 NUC BOX-1340P/D5 Full Screen Logo [Enabled] Select this item to display the boot logo. [Disabled] Select this item to show normal POST messages.

  • Page 55: Exit Screen

    5.7 Exit Screen Save Changes and Exit When you select this option, the following message “Save configuration changes and exit setup?” will pop out. Select [Yes] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, the following message “Discard changes and exit setup?”...

  • Page 56: Chapter 6 Software Support

    NUC BOX-1360P/D5 NUC BOX-1340P/D5 Chapter 6 Software Support 6.1 Install Operating System ® ® This motherboard supports various Microsoft Windows operating systems: 11 64-bit / 10 64-bit. Because motherboard settings and hardware options vary, use the setup procedures in this chapter for general reference only. Refer your OS documentation for more...
